Peerless-AV DST360 - Installation - Manual (Page 2)

2 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12
NOTE: Read instruction sheet before you start installation and assembly.
NOTE: Some parts may appear slightly different than illustrated
B
A
C
D
E F G
H
I
K L M N
O P Q R S
T U V W X
J

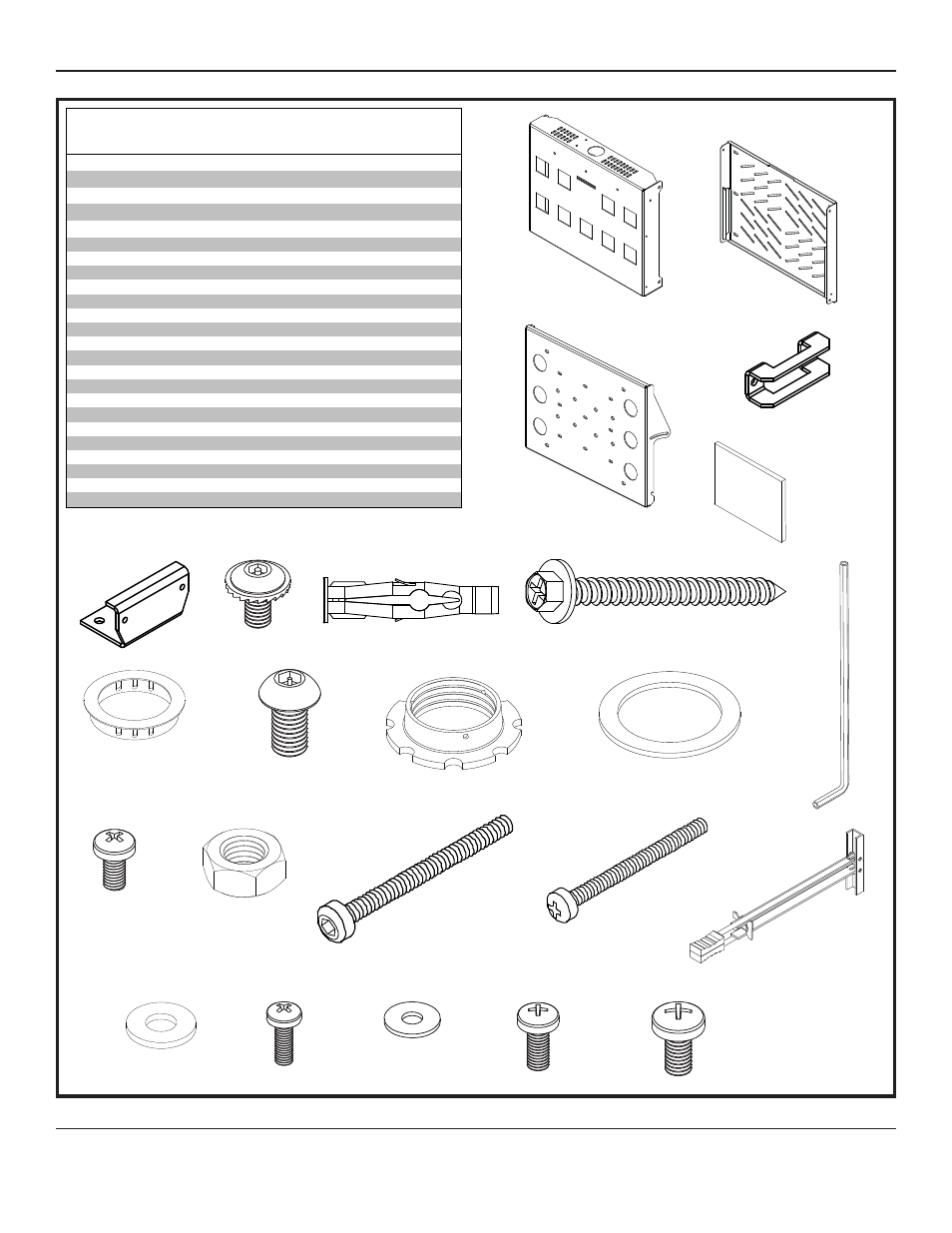

Description Qty. Part #
A main support box 1 145-1050
B access plate 1 145-1049
C adapter plate 1 145-1172
D pinch bracket 1 130-1073
E yaw lock bracket 1 140-1019
F M6 x 12 mm socket pin serrated washer head screw 6 510-1050
G concrete anchor 6 590-0320
H #14 x 2.5 hex phillips wood screw 6 5S1-015-C03
I 4 mm allen wrench 1 560-9646
J rubber pad 4 590-1159
K 2" snap bushing 1 590-1149
L M8 x 15 mm socket pin screw 4 520-1068
M retaining collar 1 1800-375
N washer 1 540-9432
O M5 x 10 mm type F screw 1 520-9250
P M5 nylock nut 2 530-1019
Q M5 x 55 mm socket screw 2 520-1193
R 1/4 - 20 x 2.5 phillips screw 6 520-9521
S toggler 6 560-9708
T 1/4 - 20 washer 6 540-9440
U M4 x 12 mm phillips screw 4 504-9013
V #8 washer 4 540-1001
W M5 x 12 mm phillips screw 4 520-1027
X M6 x 12 mm phillips screw 4 520-1128
PARTS LIST
