Peerless-AV DST360 - Installation - Manual (Page 8)

8 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12

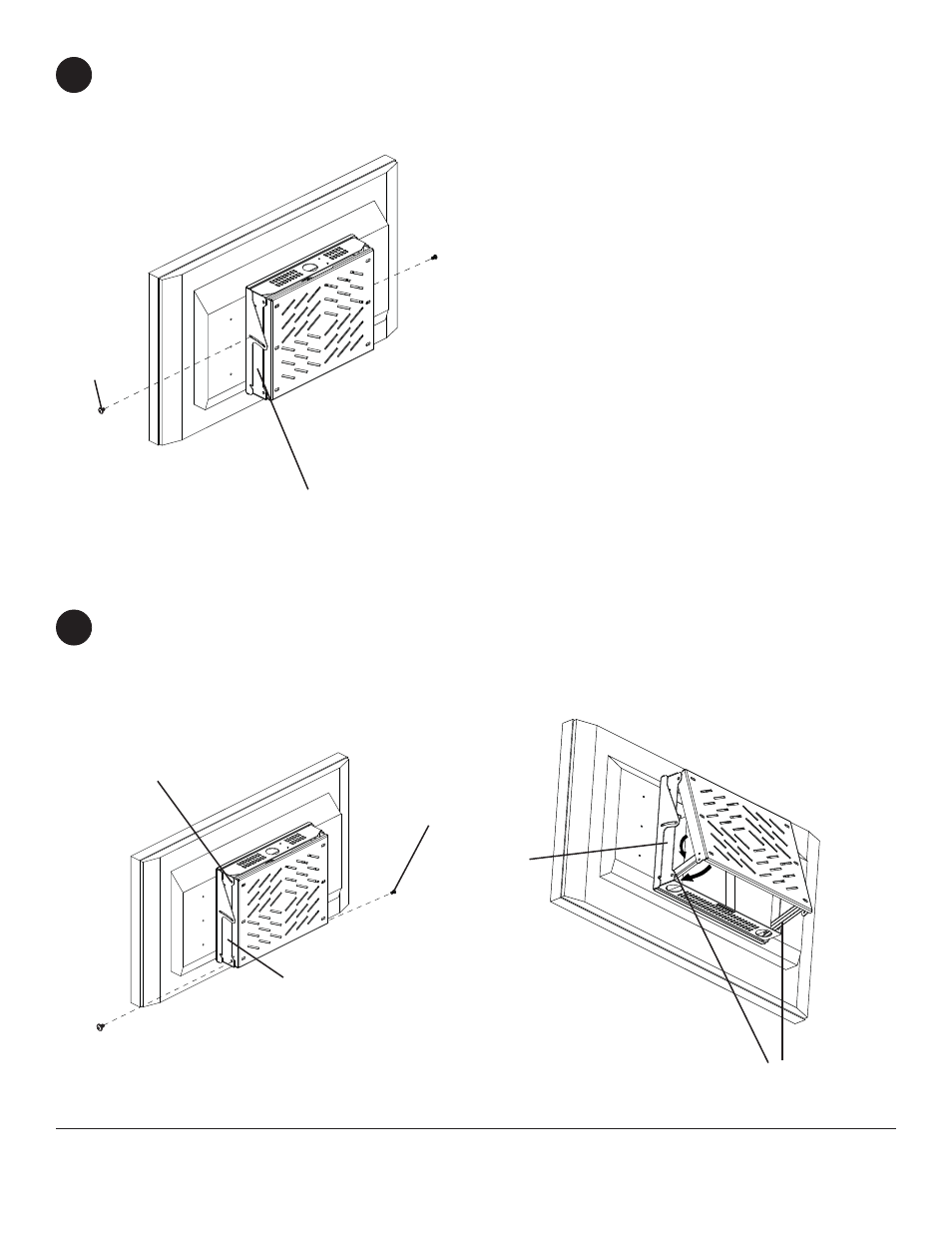

Loosen top two M8 x 15 mm socket pin screws (L) 1/4 turn and temporaliy remove bottom two M8 x 15 mm socket
pin screws (L) on main support box (A) as shown. Swing screen forward and swing support brackets downward to
brace screen in open position.
Accessing Media Component
9
A
A
SUPPORT BRACKETS
(BOTH SIDES)
LOOSEN SCREWS 1/4
TURN ON BOTH SIDES
Secure two M6 x 12 mm socket pin screws (F)
into main support box (A) at desired tilt. Tighten
using allen wrench (I).
8
A
F
L
REMOVE
L
