Peerless-AV DST360 - Installation - Manual (Page 6)

6 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12

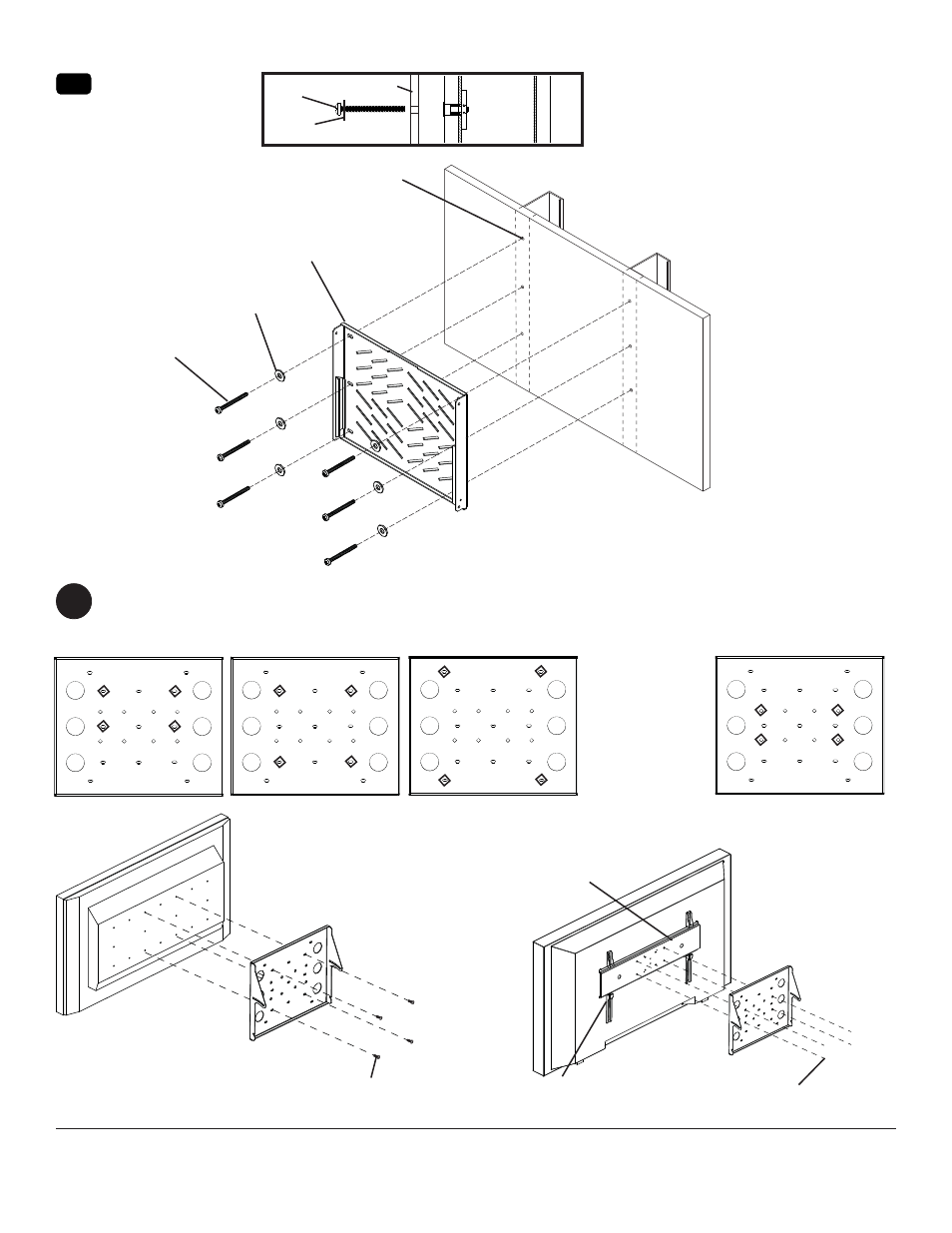

Align wall plate with
hole in wall and
fasten using
1/4-20 x 2.5" screw
(R) and 1/4"
washer (T).
access plate
R
T
3-6
R
T
S
B
Select mounting hole pattern and secure adapter plate (C) to screen using screws (U,W, or X) and washers
(V) if required. 4
200 mm x 200 mm
PLP Adapter Plate
Mounting Holes
Fasteners provided by
dedicated adapter plate
Using Screws (U,W, or X) and washers (V) as required
PLP ADAPTER PLATE
NOTE: First attach
the vertical uprights
to the screen
detailed in the PLP
Adapter Plate
instructions
vertical uprights
300 mm x 300 mm 200 mm x 100 mm
