ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12

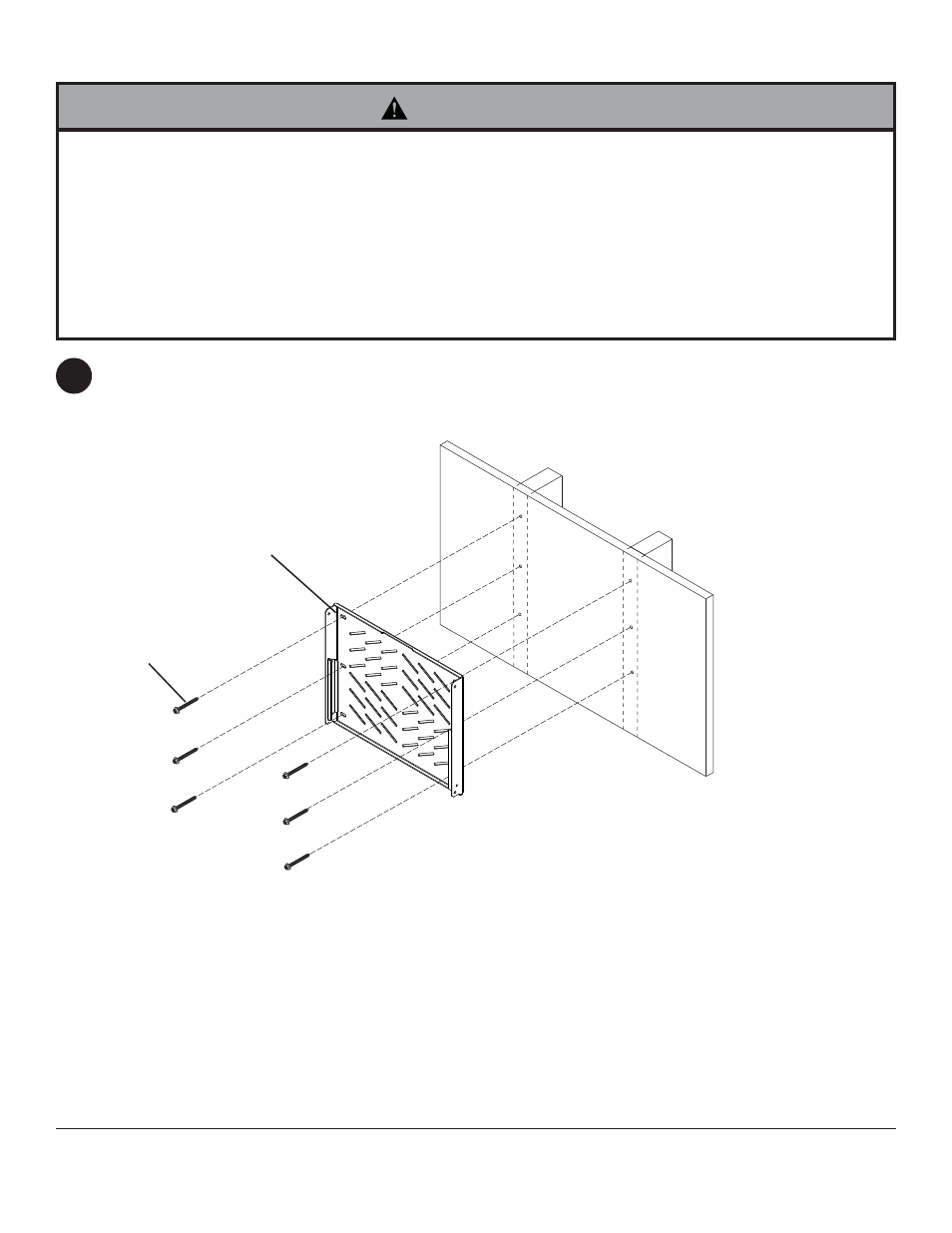

Using access plate (B) as a template, drill six 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach
access plate (B) to centers of wood studs using six #14 x 2.5" wood screws (H) shown.

Installation to Wood Stud Wall

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is

highly recommended.

• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Installers

are responsible to provide hardware for other types of mounting situations.

WARNING

For Installation to Column skip to Step 10 on Page 9
