Rotate toggler (S)
clockwise to wedge it
against inside walls
of metal stud.
Push into hole.
Pivot end of toggler (S).
Slide plastic cap
forward while pulling
back firmly on ring.
Break off excess.

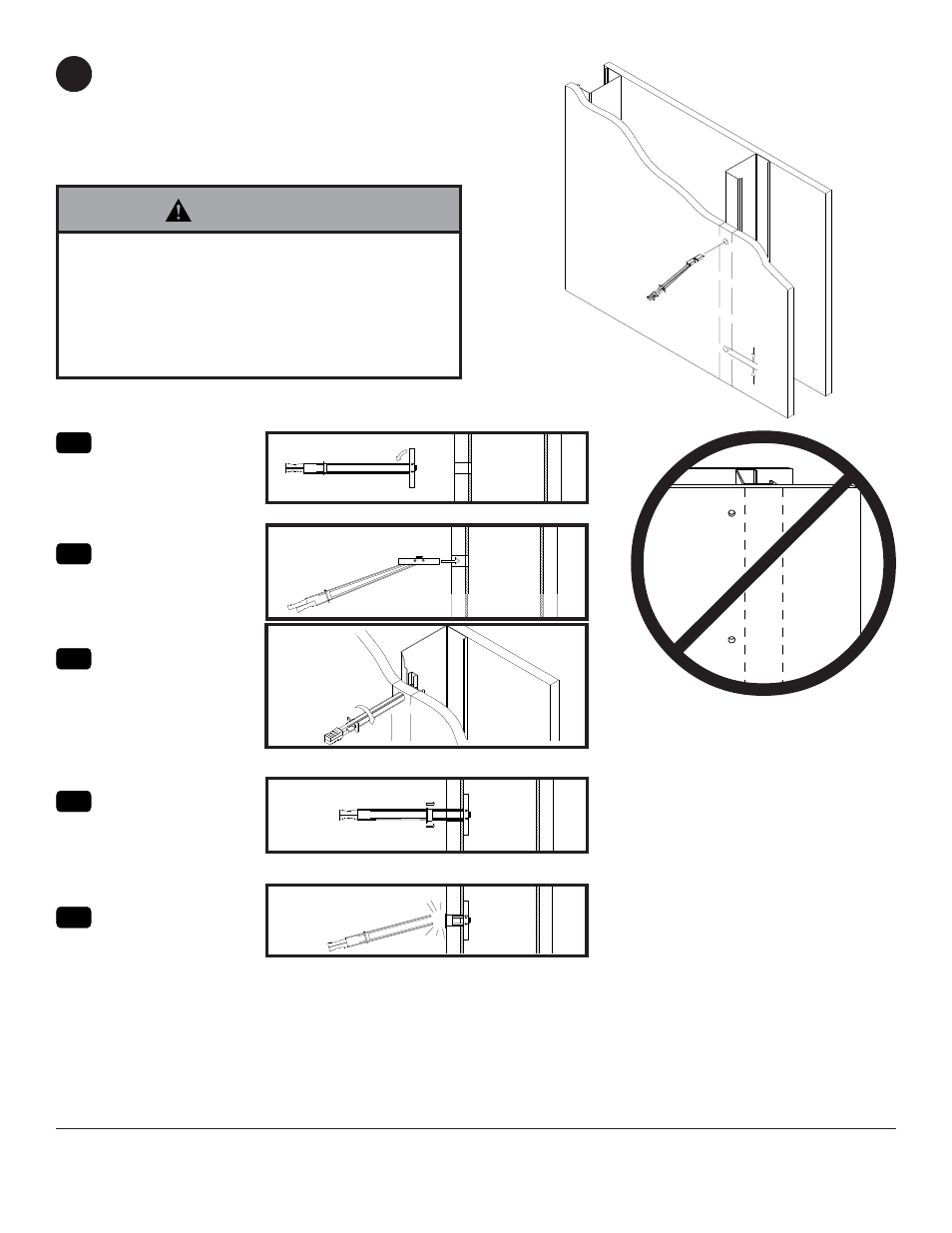

FOR METAL STUD WALLS ONLY: Drill six 1/2"
(13 mm) dia. holes through drywall and studs at
locations corresponding to wall plate. Insert togglers
(S) as shown below.
S
S
∅ 1/2"
(13 mm)
• Product must be mounted through drywall that has a
minimum thickness of 1/2" and into metal studs, 26
gauge or heavier.
• Make sure that togglers are anchored into the center
of the studs as shown in figure 3.1. The use of an
"edge to edge" stud finder is highly recommended.
fig. 3.1
WARNING
3
3-1
3-2
3-3
3-4
3-5
