Peerless-AV ACC630 - Installation - Manual (Page 4)

ISSUED: 11-20-10 SHEET #:120-9094-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
4 of 5
A
B
D
E
B
ARM PLATE (PROVIDED
WITH SMART 600i)
E
SMART UX60
SMART UX60 ARM PLATE
MOUNTING HOLE PATTERN
fi g 3.1
DETAIL 1
3/16" 1/8"

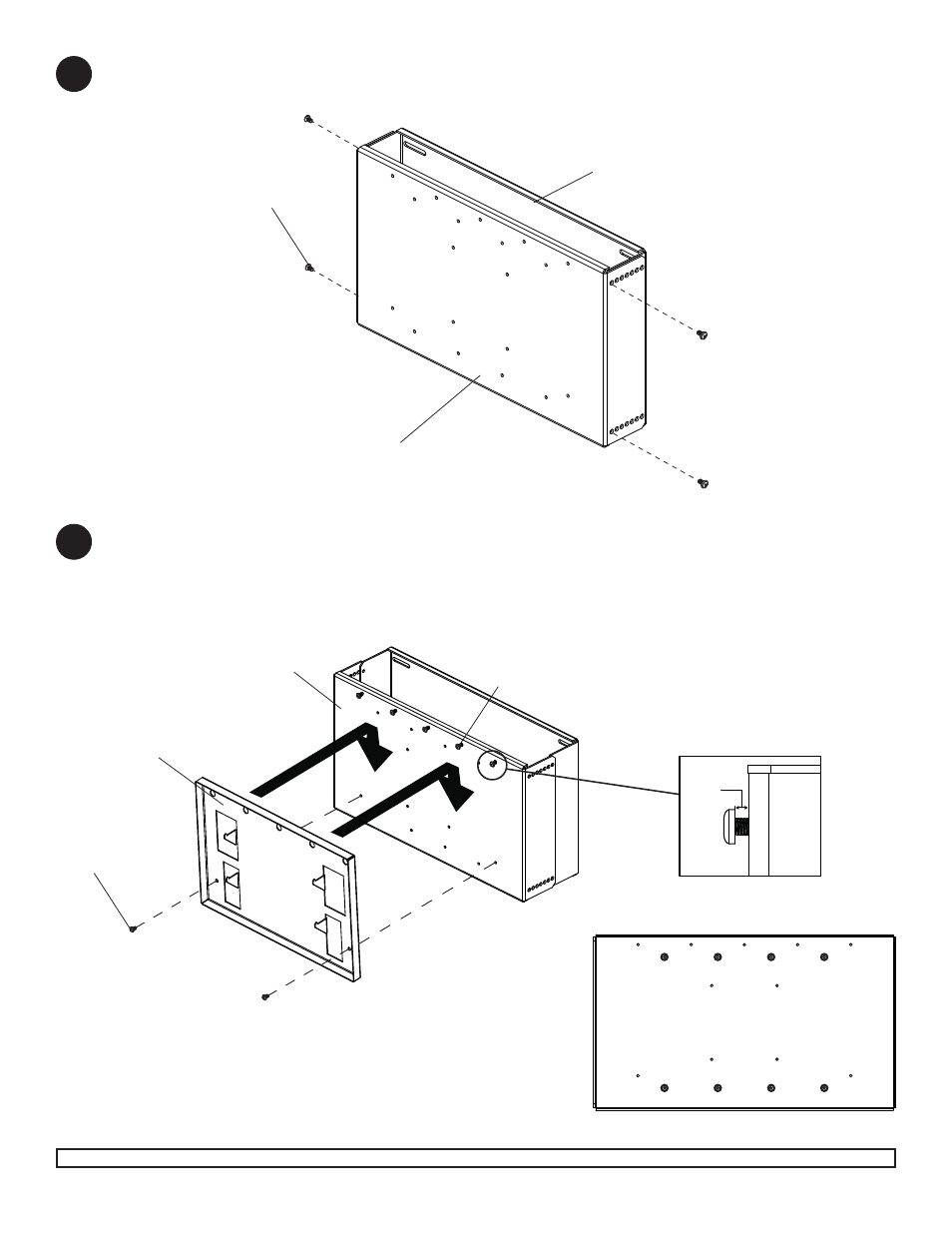

Secure adapter plate (B) to wall plate (A), setting the desired depth with four 1/4-20 self-tapping screws (D) using a
3/8" socket wrench or #3 phillips screw driver.
Installation of Arm Plate to Adapter Pate
Hand thread fi ve 10-32 self-tapping screws (E) into adapter plate leaving 1/8" of exposed thread as shown
in detail 1 using a #2 phillips screwdriver. Hook arm plate (provided with projector arm) onto keyhole slots of
screws and secure using two 10-32 self-tapping screws (E) as shown using a #2 phillips screwdriver. Tighten
all fasteners.
NOTE: See fi gure 3.1 mounting hole pattern for SMART UX60.
Refer to SMART 600i or SMART UX60 instruction manual for complete installation.
3
2
