Peerless-AV SP850-V2X2 - Installation - Manual (Page 3)

3 of 10 ISSUED: 01-17-12 SHEET #: 125-9277-1

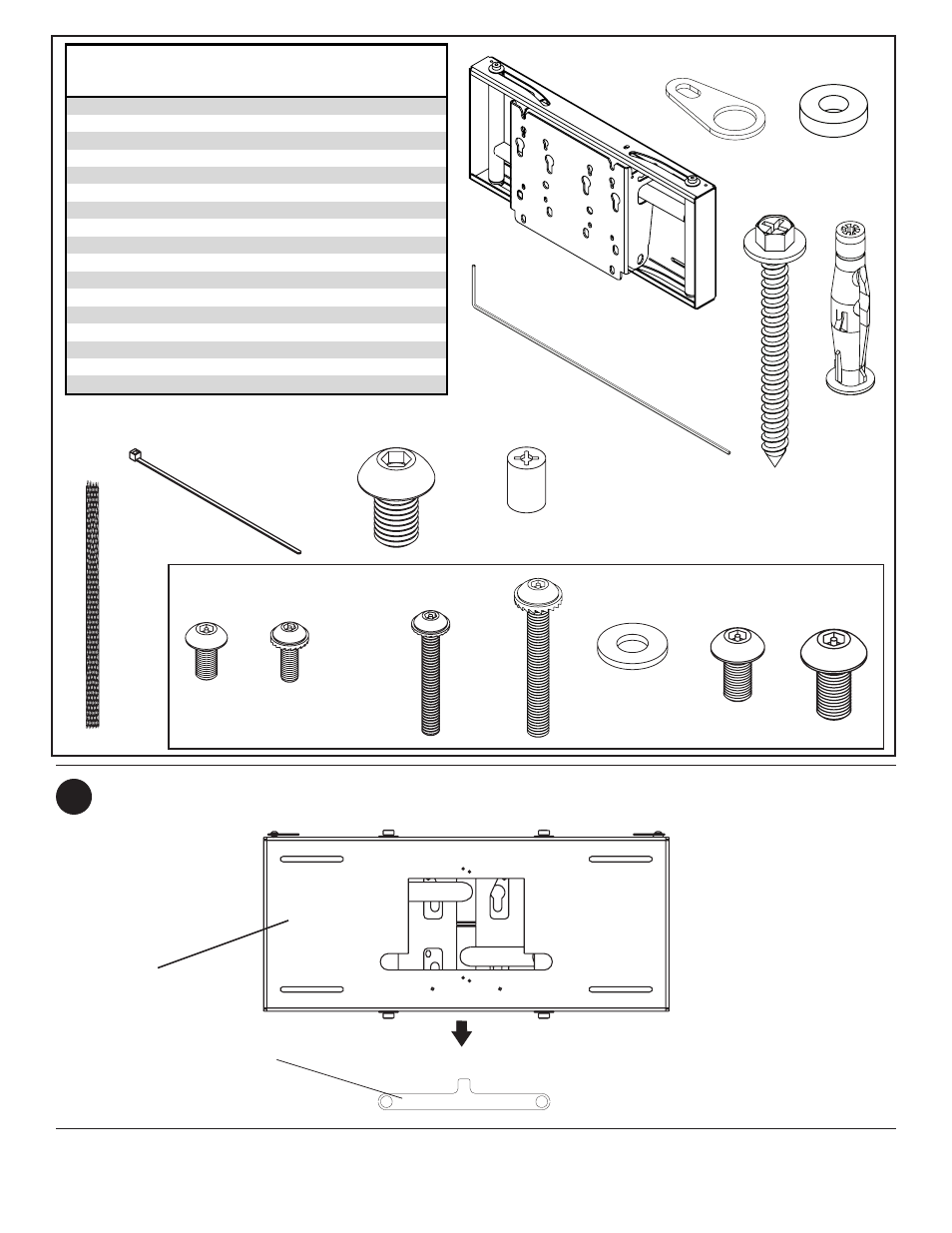

Description Qty. Part #
A wall mount assembly 1 201‐1967
B locking tab 1 200‐1871
C .219 ID x .5 OD x .125H spacer 1 540‐1032
D #14 x 2‐1/2" hex head wood screw 4 5S1‐015‐C03
E concrete anchor 4 590‐0320
F 18" polyester mesh sleeve 2 600‐1014
G cable tie 4 560‐9711
H M10 x 15 mm socket head screw 4 520‐9262
I .198 x .313 x .437H retaining spacer 4 590‐5005
J 4 mm security allen wrench 1 560‐1146
AA M5 x 10 mm socket pin screw 5 520‐1063
BB M4 x 12 mm socket pin screw 4 510‐1079
CC M4 x 20 mm socket pin screw 4 510‐1061
DD M5 x 40 mm socket pin screw 1 510‐1001
EE 1/4" flat washer 4 540‐9440
FF M6 x 12 mm socket pin screw 4 520‐1050
GG M8 x 15 mm socket pin screw 4 520‐1068
Parts List
1
Snap installation tab off of wall mount assembly ( A).
INSTALLATION TAB
A
H
A
B
CC DD
C
Some parts may appear slightly different than illustrated.
G
AA BB
J
D
F
E
I
EE FF GG
