ISSUED: 04-26-04 SHEET #: 081-9028-3 02-14-06
For customer service call 1-800-729-0307 or 708-865-8870. Visit the Peerless Web Site at www.peerlessindustries.com
4 of 5

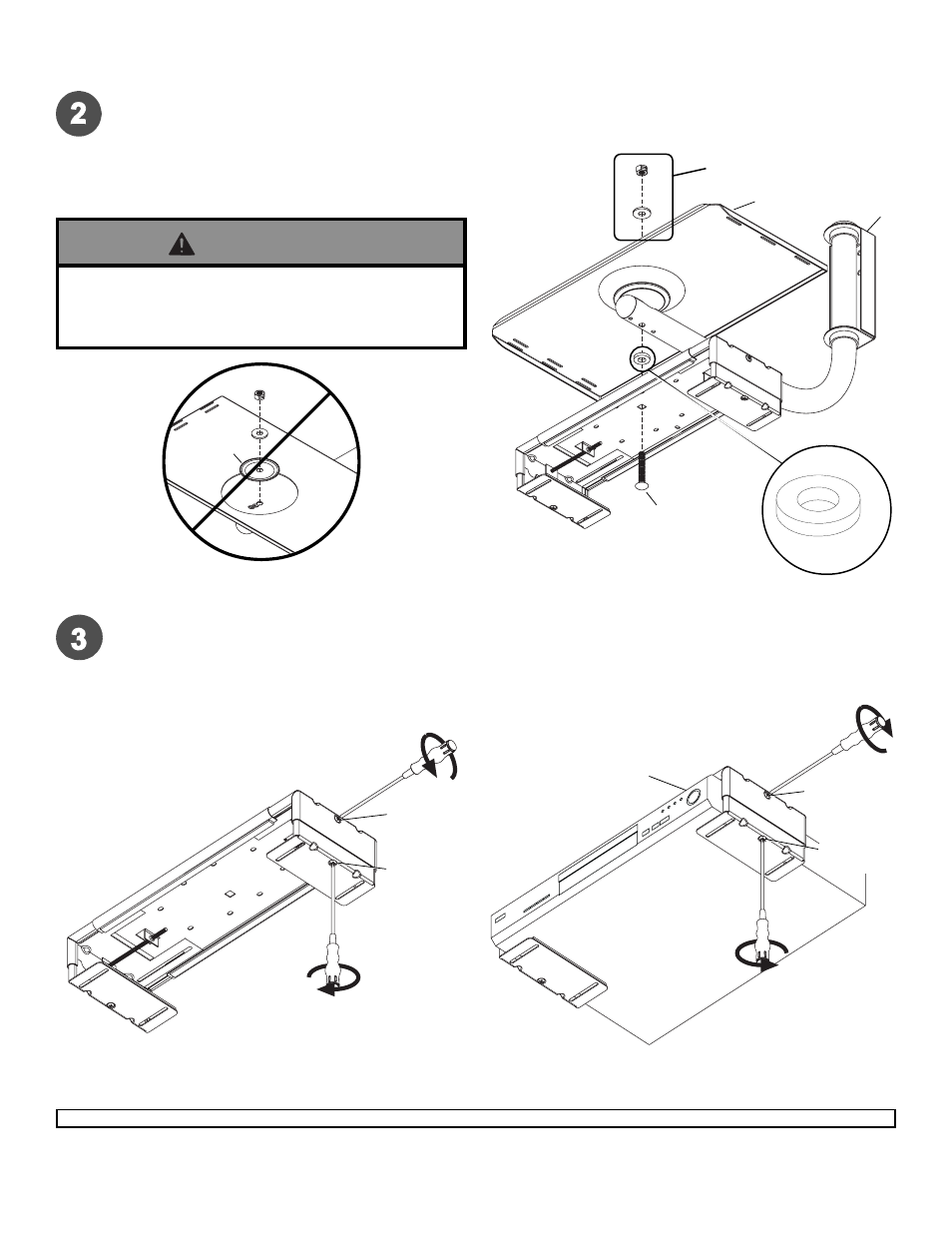

Adjust size of DVD/DVR/VCR mount to fit media player by loosening vertical adjustment screws and horizontal
adjustment screws where shown in figure 2.1 on both sides. Insert media player and align front of player with front of
TV on TV mount. Tighten screws where shown in figure 2.2 on both sides until player securely fits in mount.
Note: TV and TV mount not shown in illustrations.
MEDIA PLAYER
fig 2.1 fig 2.2
Installing a Single DVD/DVR/VCR Mount
Disassemble tray from arm of the TV mount. Install
DVD/DVR/VCR mount to TV mount using carriage
bolt and fasteners from TV mount and one 1/2" x 3/
16" washer (B) as shown.
Note: TV mount and fasteners from TV mount may
differ from illustration.
Installing DVD/DVR/VCR Mount to TV Mounts without a Cross Arm
CARRIAGE BOLT
TV MOUNT FASTENERS
B
TRAY
ARM
SPRING PLATE
HORIZONTAL
ADJUSTMENT
SCREW
VERTICAL
ADJUSTMENT
SCREW
HORIZONTAL
ADJUSTMENT
SCREW
VERTICAL
ADJUSTMENT
SCREW
• If spring plate is present in your mount, do not reinstall
spring plate when attaching the DVD/DVR/VCR
mount.
WARNING
