2 of 2 ISSUED: 06-19-08 SHEET #: 056-9006-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
fig. 1.2
B
E

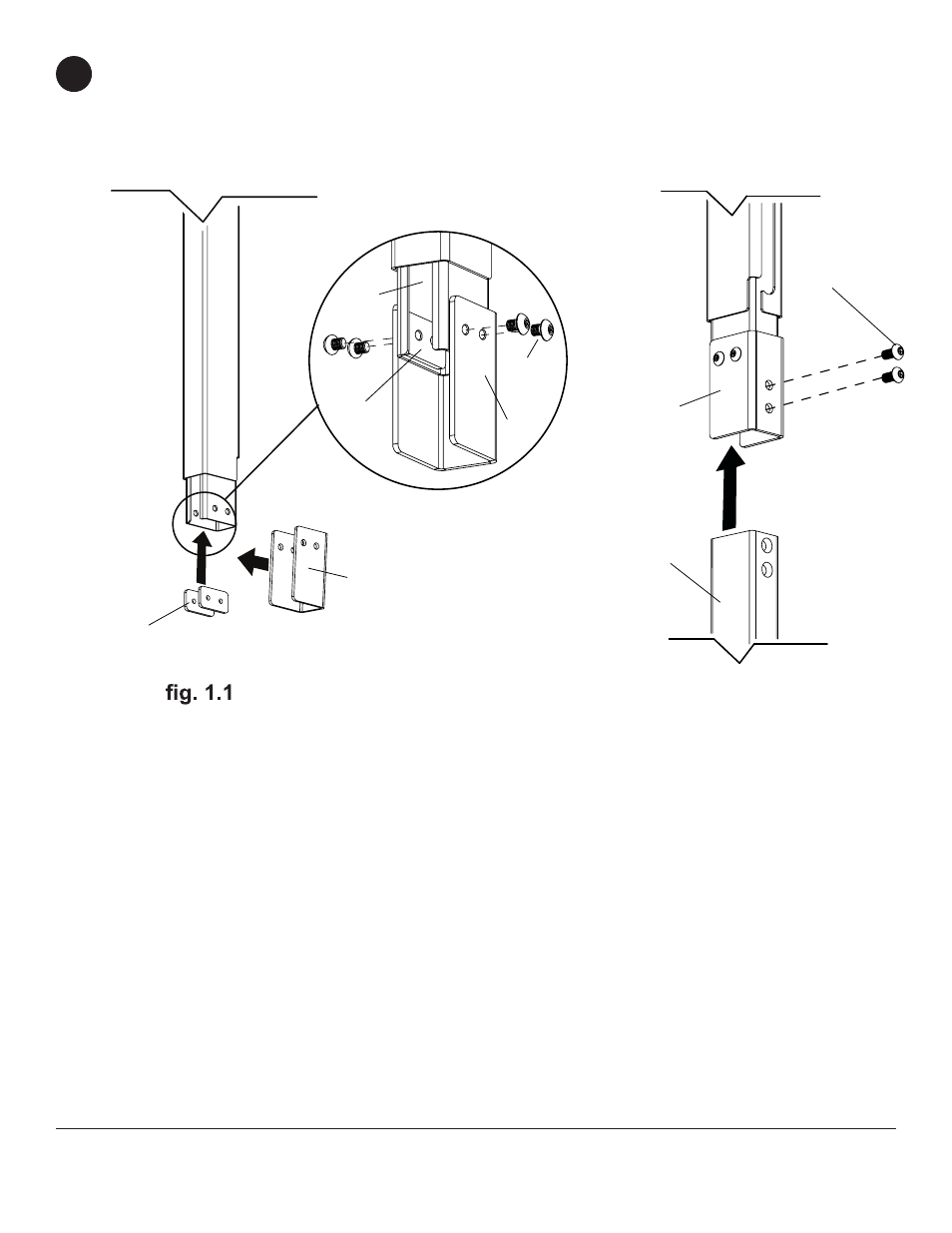

Position two nut plates ( D) on each side of inner channel (A) as seen in fig. 1.1. detail 1. Slide extension clamp (B)
over bottom of inner channel ( A), line up holes from nut plate and secure using four M5 x 10 mm screws (F).
Slide second inner channel ( A) into extension clamp (B) as seen in fig. 1.2. and secure using four M5 x 12 mm
screws ( E) as shown in figure 1.2.
1
A
B
D
DETAIL 1
D
E
F
A
