Peerless-AV ACC604 - Installation - Manual (Page 3)

3 of 6 ISSUED: 02-14-06 SHEET #: 202-9111-2 06-16-06
For customer care call (800) 729-0307 or (708) 865-8870.
A
B
Description Qty. Part #
A carriage 1 201-1020
B adapter plate 2 201-1022
C 5/16-24 x 1/4" set screw 4 520-9566
D M6 x 20 mm serrated washer head socket pin screw 4 510-9554
E M10 x 15 mm socket head screw 4 520-9262
F M6 x 12 mm phillips screw 4 520-1128
G M6 x 20 mm phillips screw 4 520-9402
H M6 x 30 mm phillips screw 4 510-9109
I M4 x 10 mm phillips screw 4 504-9012
J M4 x 20 mm phillips screw 4 504-9020
K .198" ID x .313" OD x .437" H retaining spacer 4 590-5005
L 6 mm non-security allen wrench 1 560-9716
M 4 mm security allen wrench 1 560-9646
Parts List
G H I J
K
C D E
F

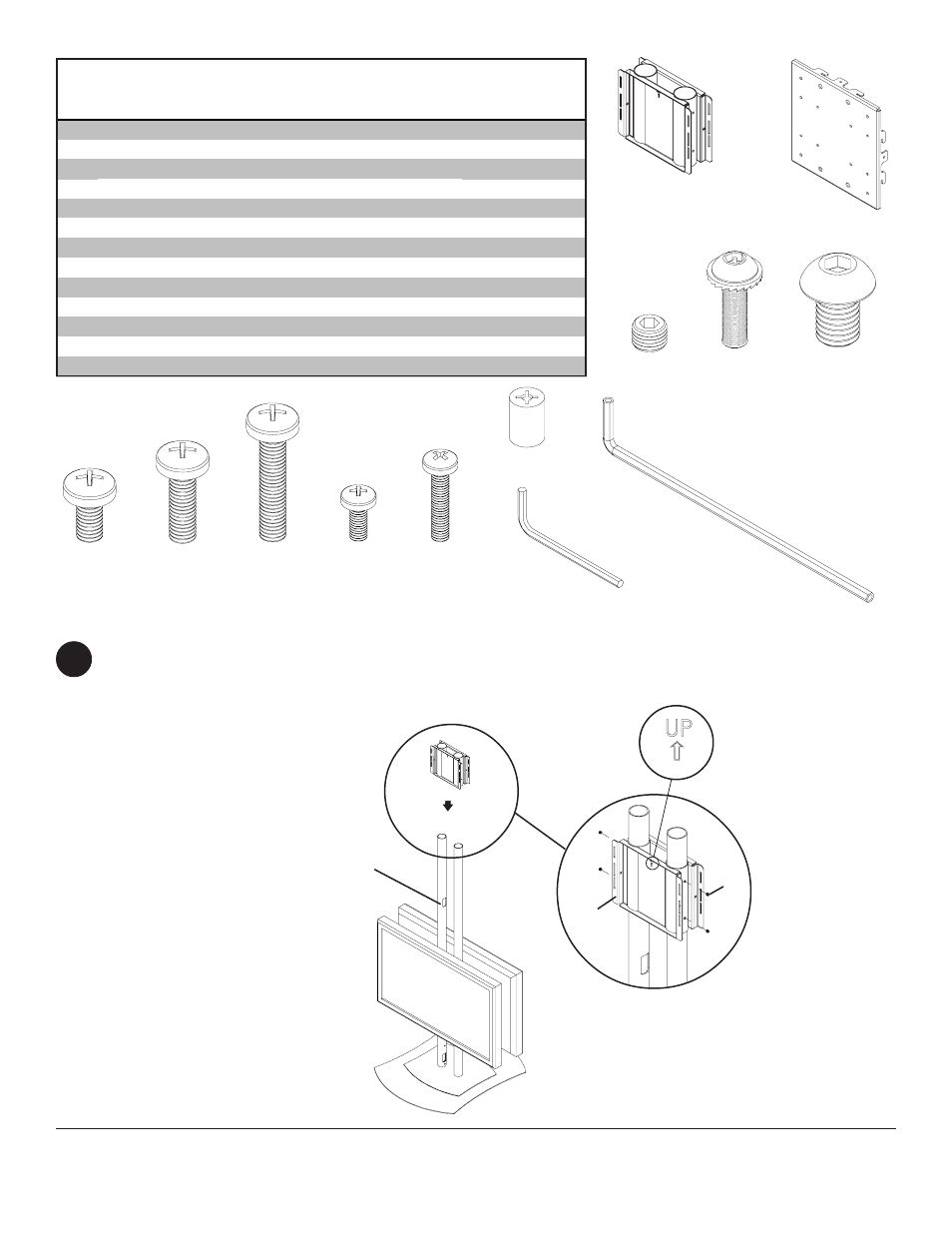

Make sure previously installed carriage and screen(s) are positioned low enough to allow carriage (A) and additional
screen(s) to be installed. Slide carriage (A) onto main tubes. Slide carriage to desired height and secure using four
set screws (C) as shown in figure 1 and detail 1. Tighten screws using 4 mm allen wrench (M).
Note: Orientation of "UP" arrow is critical.
MAIN TUBES
fig 1
1
DETAIL 1
C
A
M L
