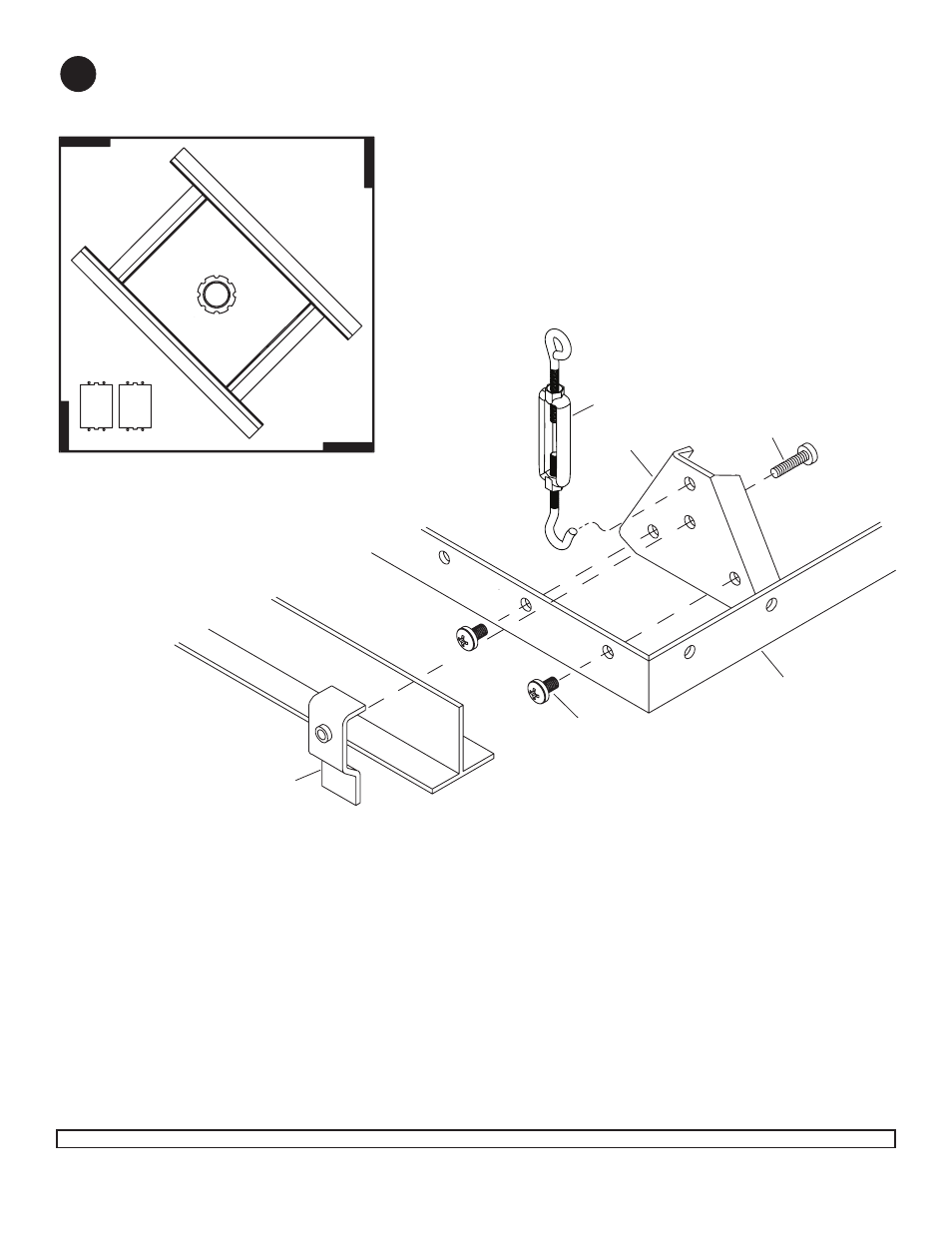

Attach four Hanger Brackets ( D) to four corners of Ceiling Tray (A) using 10 mm long phillips screws (B). Place
Ceiling Tray ( A) into 24" (610mm) x 24" (610mm) opening in ceiling (in place of a ceiling tile). Clamp Ceiling Tray
( A) to Ceiling Runners using Hanger Bracket Clamps (E) and 20 mm long phillips screws (C). Hook Turnbuckles
( F) into Hanger Brackets (D).
TOP VIEW - CEILING TRAY
Black rectangles show correct positions
for Hanger brackets.
