Hardware Description
4 Manual Documentation Number EIRP305-T – 0912m
www.bb-elec.com
www.bb-europe.com
All ports on the EIRP305-T support automatic MDI/MDI-X operation, you can use straight-
through cables (See Figure below) for all network connections to PCs or servers, or to other
switches or hubs. In straight-through cables, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table
below shows the 10BASE-T / 100BASE-TX MDI and MDI-X port pin outs.
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)

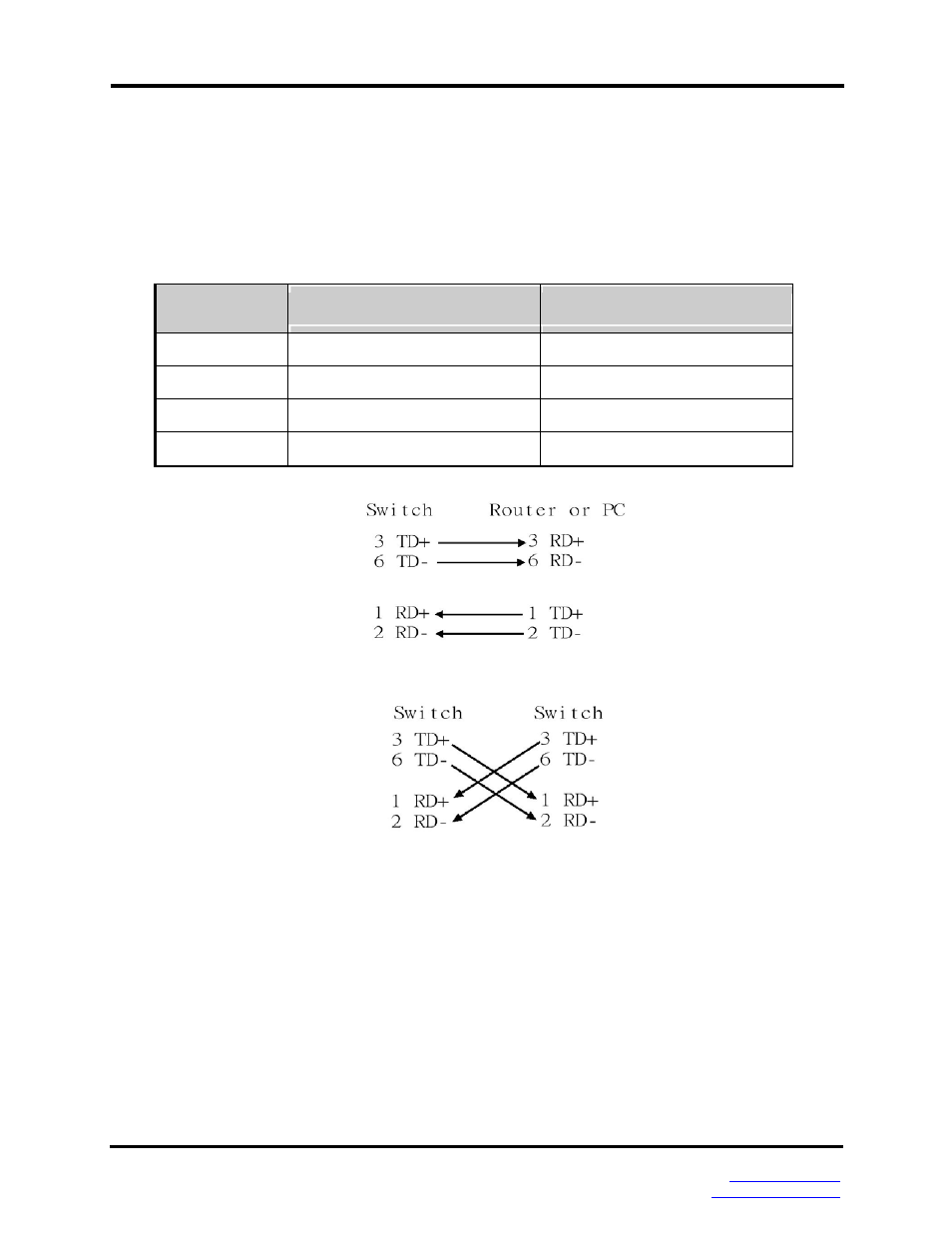

Straight Through Cable Schematic
Cross Over Cable Schematic
