Hardware Description

7

Manual Documentation Number EIRP305-T

– 0912m

www.bb-elec.com

www.bb-europe.com

Wiring the Fault Alarm Contact

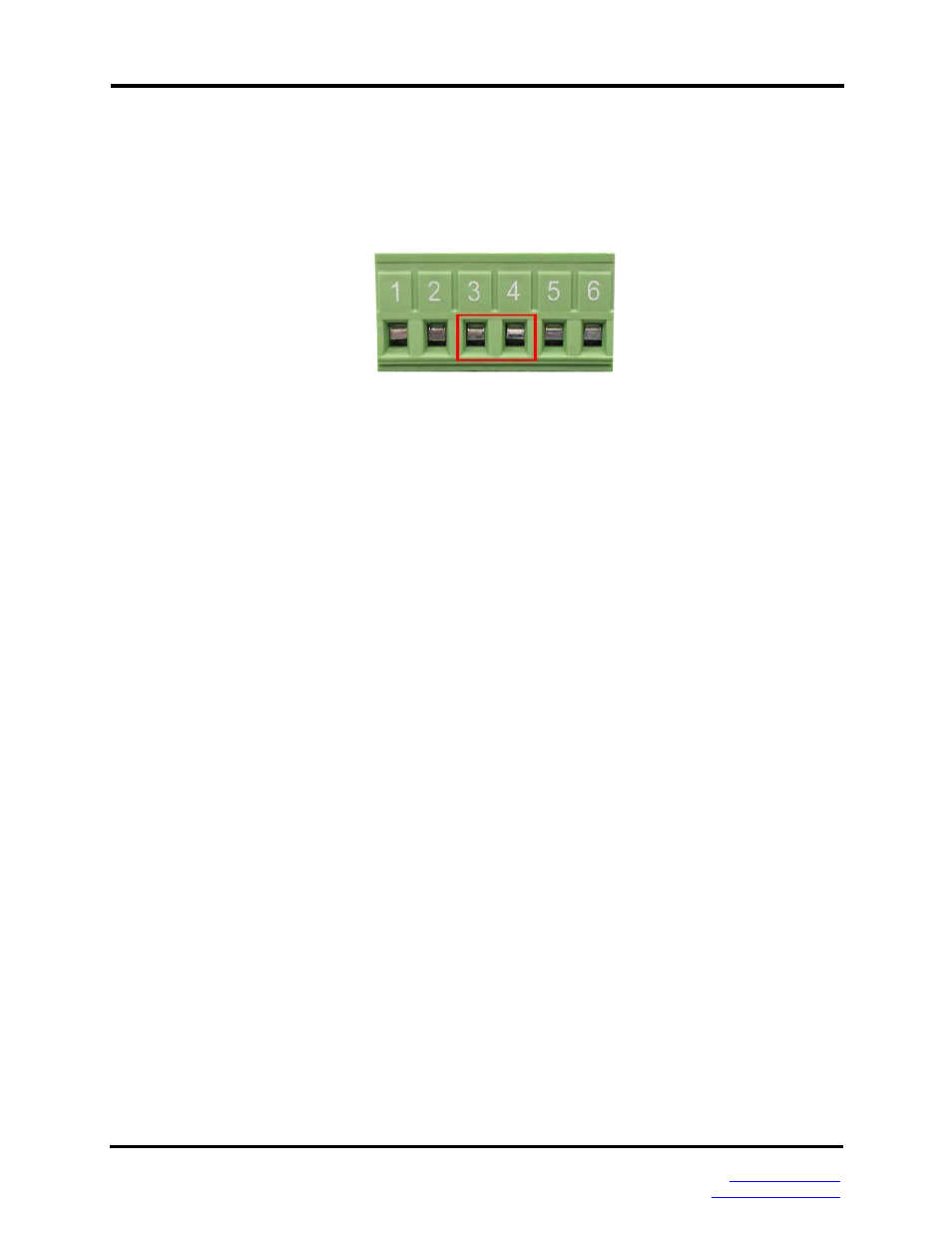

The fault alarm contact is in the middle of terminal block connector as the picture shows

below. If one of the power sources fails a fault will be detected causing the circuit to open.


Insert the wires into the fault alarm contact.


Note

The wire gauge for the terminal block should be 12 to 24 AWG.
