• Pulling slowly at the bottom of the switch will bring the switch out so that the
switch can now be carefully lifted off the DIN rail track.
Wall or Panel Mount Plate Mounting

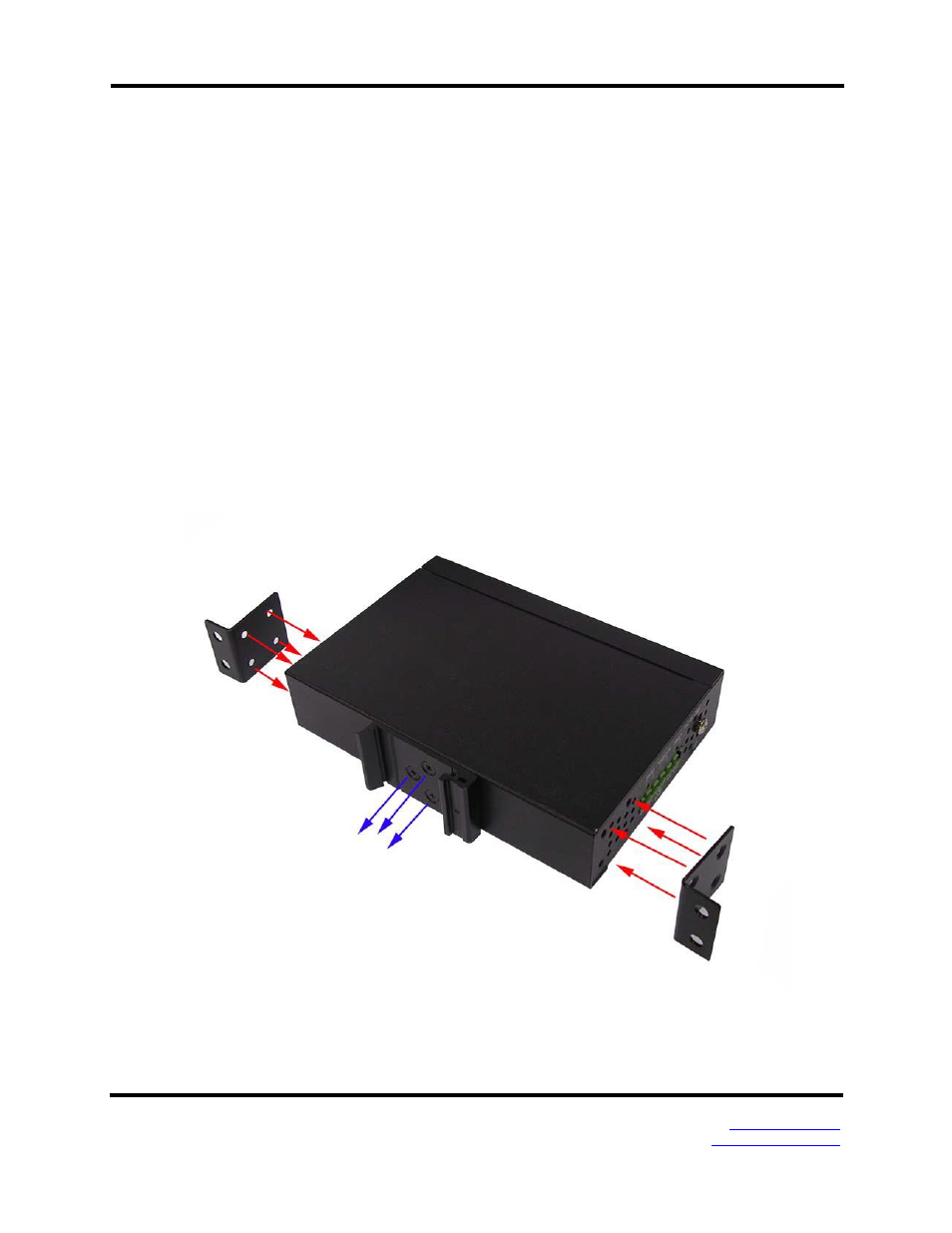

Follow the steps below to mount the industrial switch with wall mount plate.
1. Remove the DIN rail clip from the switch; loosen the screws to remove the DIN rail clip.
2. Place the wall mount plate on the side panels of the switch.
3. Use the screws to screw the wall mount plate on the switch.
4. Use the hook holes at the corners of the wall mount plates to hang the switch on the wall.
5. To remove the wall mount plate, reverse steps above.
