Hardware Description
2 Manual Documentation Number EIRP305-T – 0912m
www.bb-elec.com
www.bb-europe.com
Hardware Description
Physical Dimension
(W x D x H) is 30mm x 95mm x 140mm (1.2 x 3.7 x 5.5 inches)
Front Panel

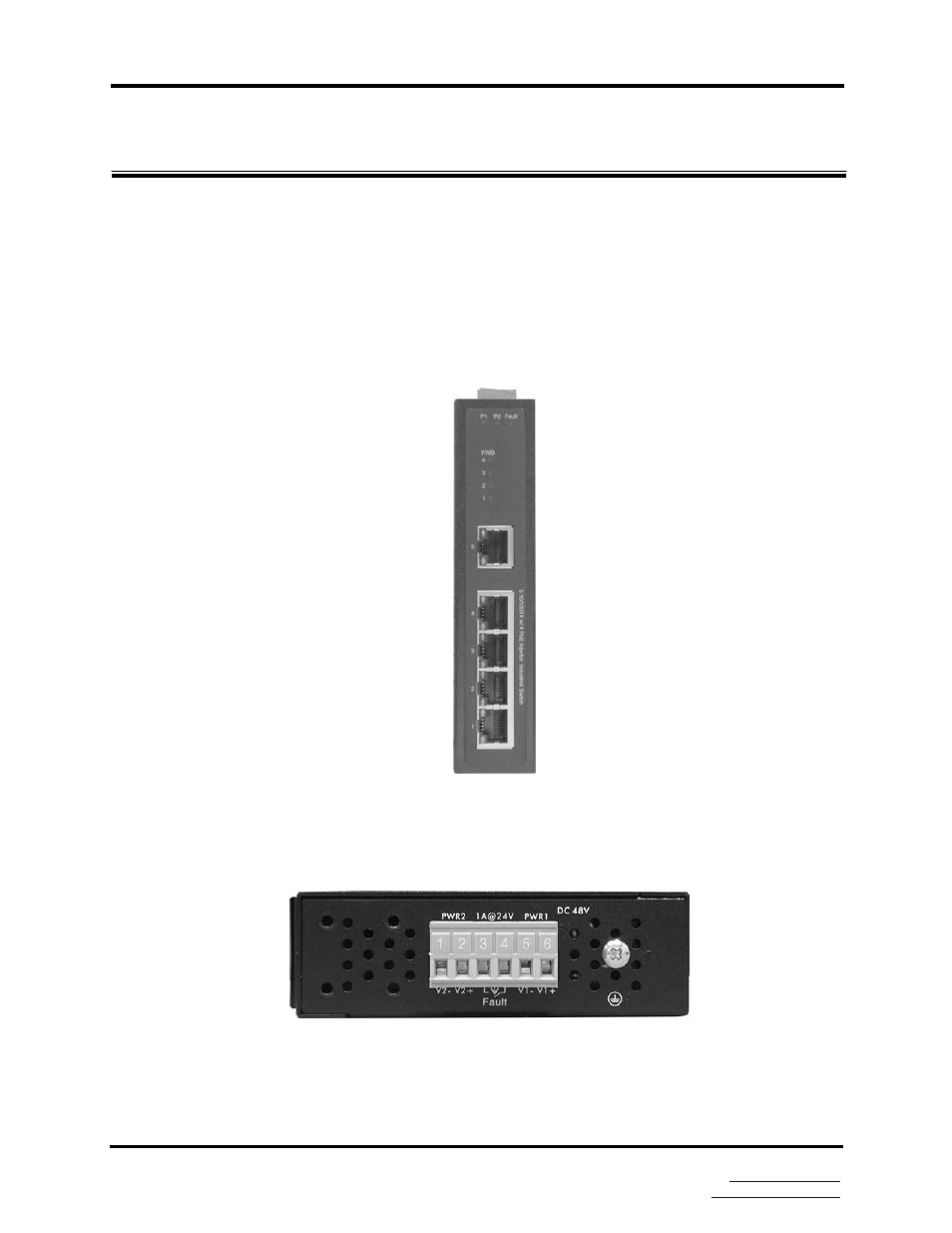

The Front Panel view of the EIRP305-T is shown below.
Top View
The top panel view of the EIRP305-T is equipped with one terminal block connector that
consists of two 48 VDC power inputs and the fault alarm output.
Top View of the PoE Injectors Industrial Switch
