CS5.241, CS5.241-C1, CS5.241-S1
C–Series
24V, 5A, S INGLE P HASE I NPUT
Dec. 2006 / Rev. 1.3 DS-CS5.241-EN
All parameters are specified at 24V, 5A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone +49 89 9278 0 Germany
5/20
8. O UTPUT
Output voltage nom. 24V
Adjustment range min. 24-28V guaranteed
max. 30V at clockwise end position of potentiometer
Factory setting 24.1V ±0.2%, at full load, cold unit
Line regulation max. 70mV 90 to 132Vac or 180 to 264Vac
Load regulation max. 100mV static value, 0A Æ 5A Æ 0A
Ripple and noise voltage max. 50mVpp 20Hz to 20MHz, 50Ohm
Output capacitance typ. 1 800µF
Output current nom. 6A U) at 24V, ambient < 45°C, see Fig. 8-1
nom. 5A at 24V, ambient < 60°C, see Fig. 8-1
nom. 5.1A U) at 28V, ambient < 45°C, see Fig. 8-1
nom. 4.3A at 28V, ambient < 60°C, see Fig. 8-1
Output power nom. 144W U) ambient < 45°C
nom. 120W ambient < 60°C
Short-circuit current min. 10A load impedance 200mOhm, see Fig. 8-1
max. 14A load impedance 200mOhm, see Fig. 8-1
U) The unit may respond with a thermal shut-down when continuously loaded with more than 120W and operated with a mains
voltage of 100V or below.

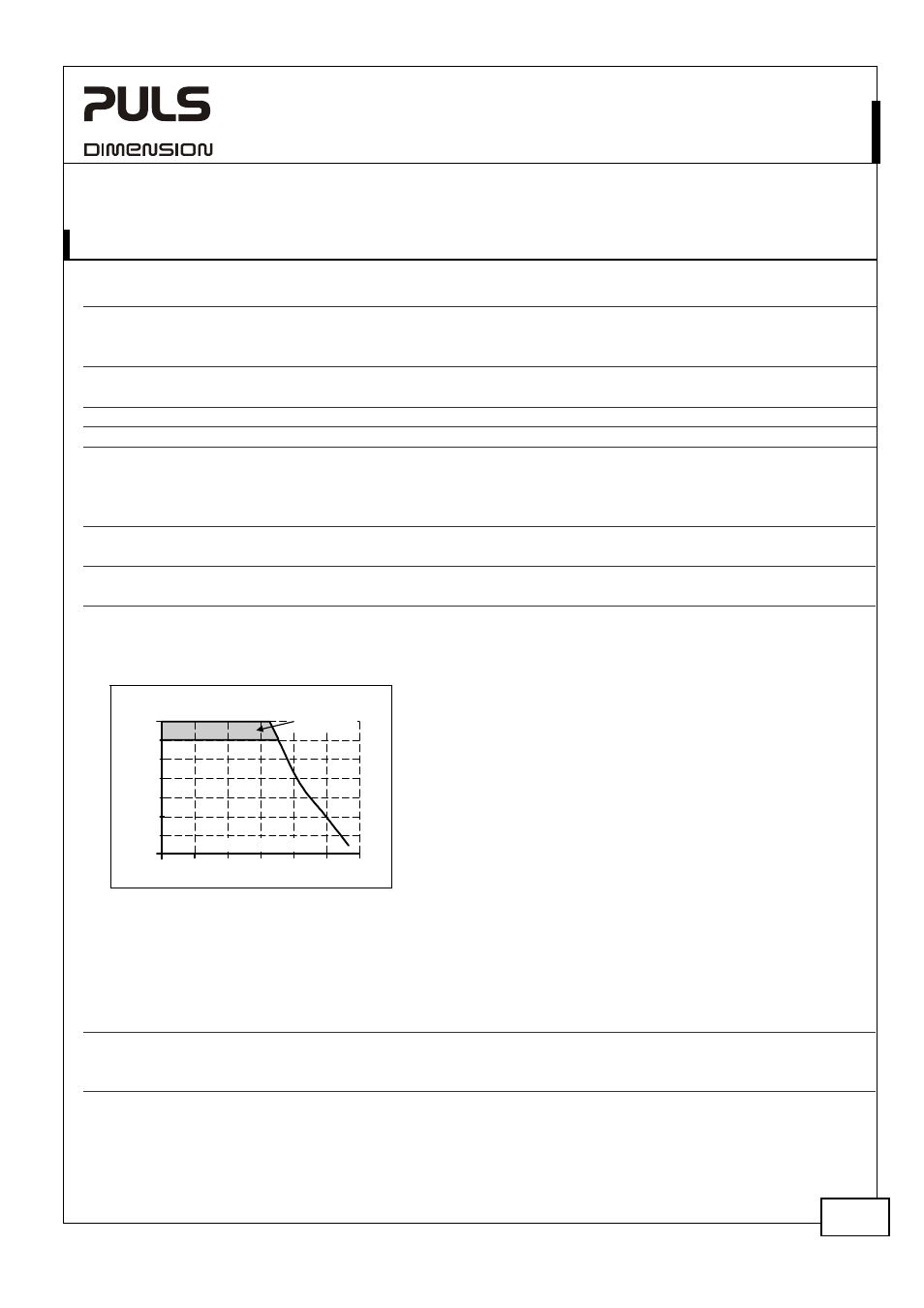

Fig. 8-1 Output voltage vs. output current, typ.
Output Voltage
0
0 4 8
4
8
12
28V
16
20
24
12A 10 6 2
Adjustment
Range
Output Current
Peak current capability (up to several ms)
The power supply can deliver a peak current which is higher than the specified short term current. This helps to start
current demanding loads or to safely operate subsequent circuit breakers.
The extra current is supplied by the output capacitors inside the power supply. During this event, the capacitors will
be discharged and causes a voltage dip on the output. Detailed curves can be found in chapter 25.1.
Peak current voltage dips typ. from 24V to 18.5V at 10A for 50ms, resistive load
typ. from 24V to 22V at 25A for 2ms, resistive load
typ. from 24V to 20V at 25A for 5ms, resistive load
