SFP Ports
The IE-MultiWay SFP ports support gigabit fiber SFPs and 100Mbps fiber SFPs, with
or without Digital Diagnostics Monitoring Information (DDMI) as well as copper SFPs
available in 10/100/1000Mbps and 1000Mbps. DDMI statistics provide real-time
access to transceiver operating parameters such as voltage, temperature, laser bias
current, and both transmitter and receive optical power. This information can be
accessed through the management system. The SFPs must be MSA-compliant, and
can be purchased from IMC Networks or other suppliers.
Hardware/Wiring Specifications

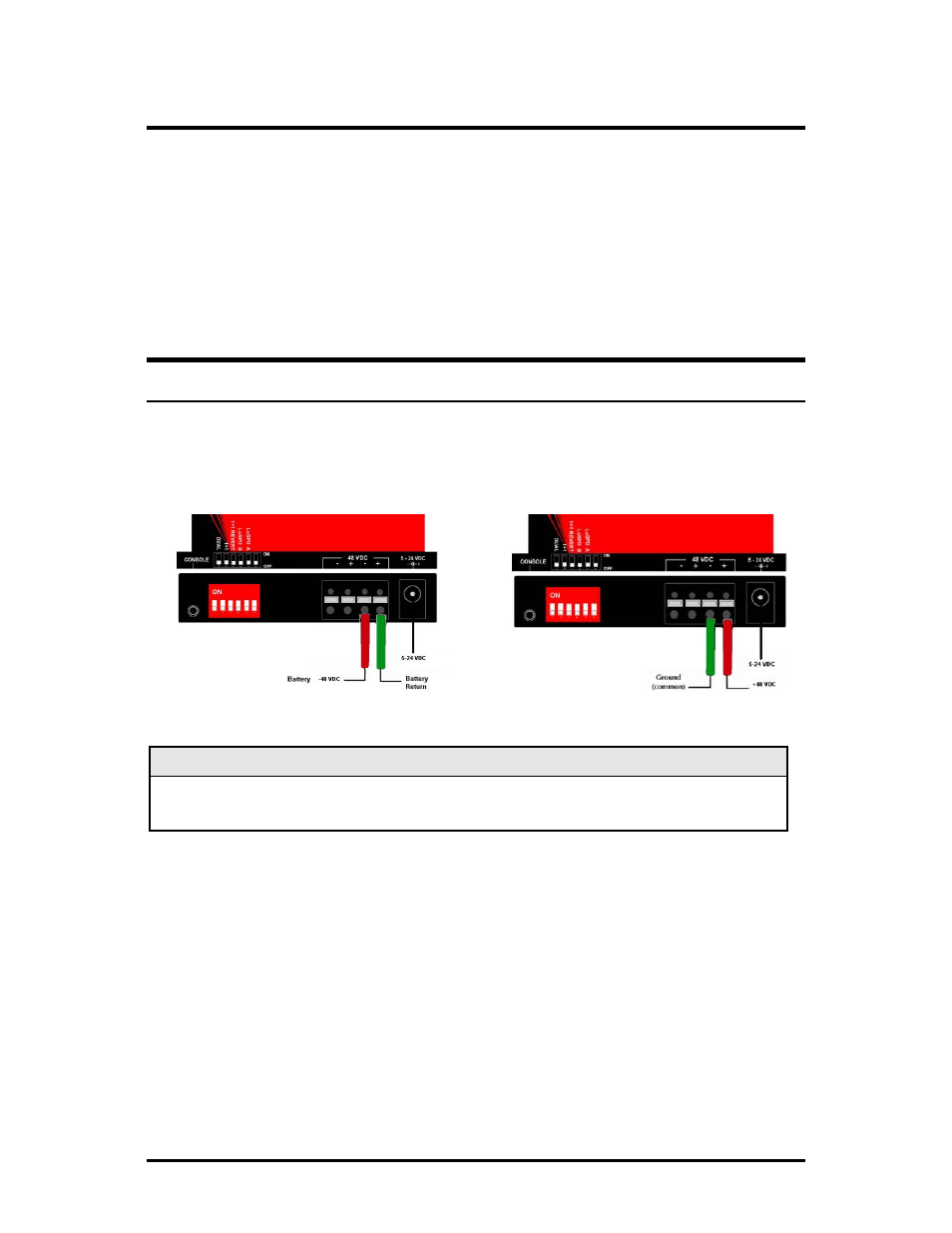

DC Terminal Block Wiring Instructions
The IE-MultiWay can also be powered with the DC terminal block. From a power
source, connect to any one positive and any one negative terminal on the IE-
MultiWay.
TELCO (-48)
NOTE
When using stranded wire, the leads should be tinned. The DC terminal block is
protected against polarity mis-wiring. AWG24 is recommended.
