7

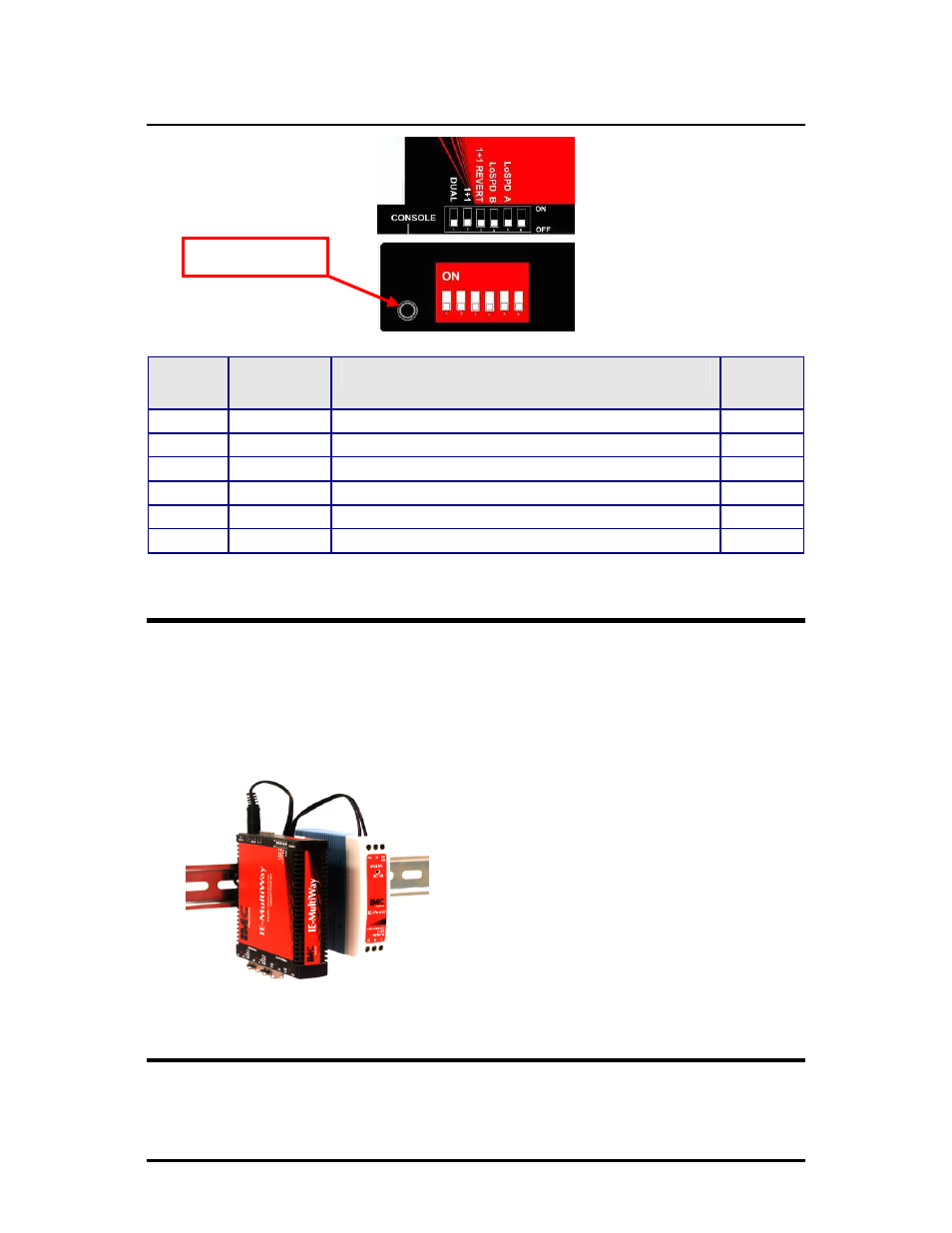

DIP Switch Configuration
DIP
Switch
Name Description Default
Setting
1 Dual Enable dual channel OFF
2 1+1 Provides 1+1 protection with non-revertive switching OFF
3 1+1 Revert Provides 1+1 protection with revertive switching OFF
4 LoSpd B Optional-for future use OFF
5 LoSpd A Optional-for future use OFF
6 Reserved
Powering the IE-MultiWay
The IE-MultiWay includes multiple powering options:
• AC adapter
• The 4-terminal DC power block
• An optional IE-Power/5V DIN Rail mount power supply, extended temperature
• An optional IMC Networks Double-USB Power Cable
IE-MultiWay with optional DIN Rail mount power supply
Mini-Serial Port
A console port, located next to the DIP Switch bay, allows the customer to use a local
RS-232 serial interface for management. A special mini-jack to DB9-F cable is
provided with the product for direct connection to a PC serial port.
Console Port
