8
NOTE
To log on through the serial port, set the computer/terminal for VT-100 emulation,
with: 38.4K baud, 8 data bits, 1 stop bit, no parity, no FlowControl.

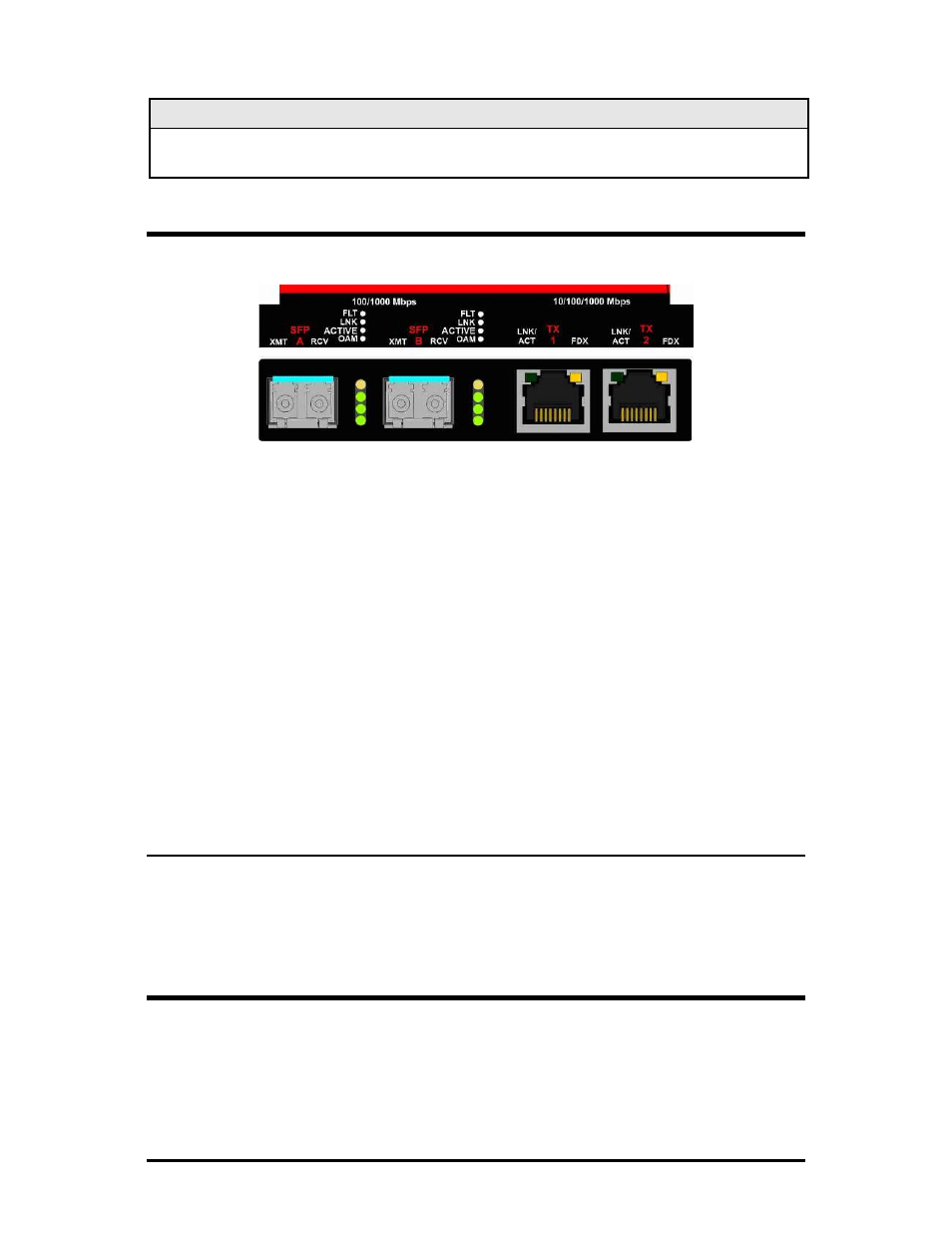

LED Operation
Each IE-MultiWay includes SFP and RJ-45 LEDs.
SFP LED functions are as follows:
FLT Glows amber when a fault is detected.
LNK Glows green with a valid optical link.
ACTIVE Glows green when the port is active
OFF when SFP is in standby (does not indicate activity)
OAM Glows green when an active OAM AH channel is established.
RJ-45 LED functions are as follows:
LNK/ACT Glows green when a link is established on the TX port; blinks green
when activity is detected on the TX port.
FDX Glows amber when an FDX link is established on the TX port.
Not lit for HDX.
Autocross Feature for Twisted Pair Connections
All fixed twisted pair ports on the IE-MultiWay include AutoCross, a feature that
automatically selects between a crossover workstation and a straight-through
connection depending on the connected device.
Configuration
The IE-MultiWay includes many features that are configurable via a serial/Telnet
session (CLI) or through iView² (SNMP Management view or iConfig view).
