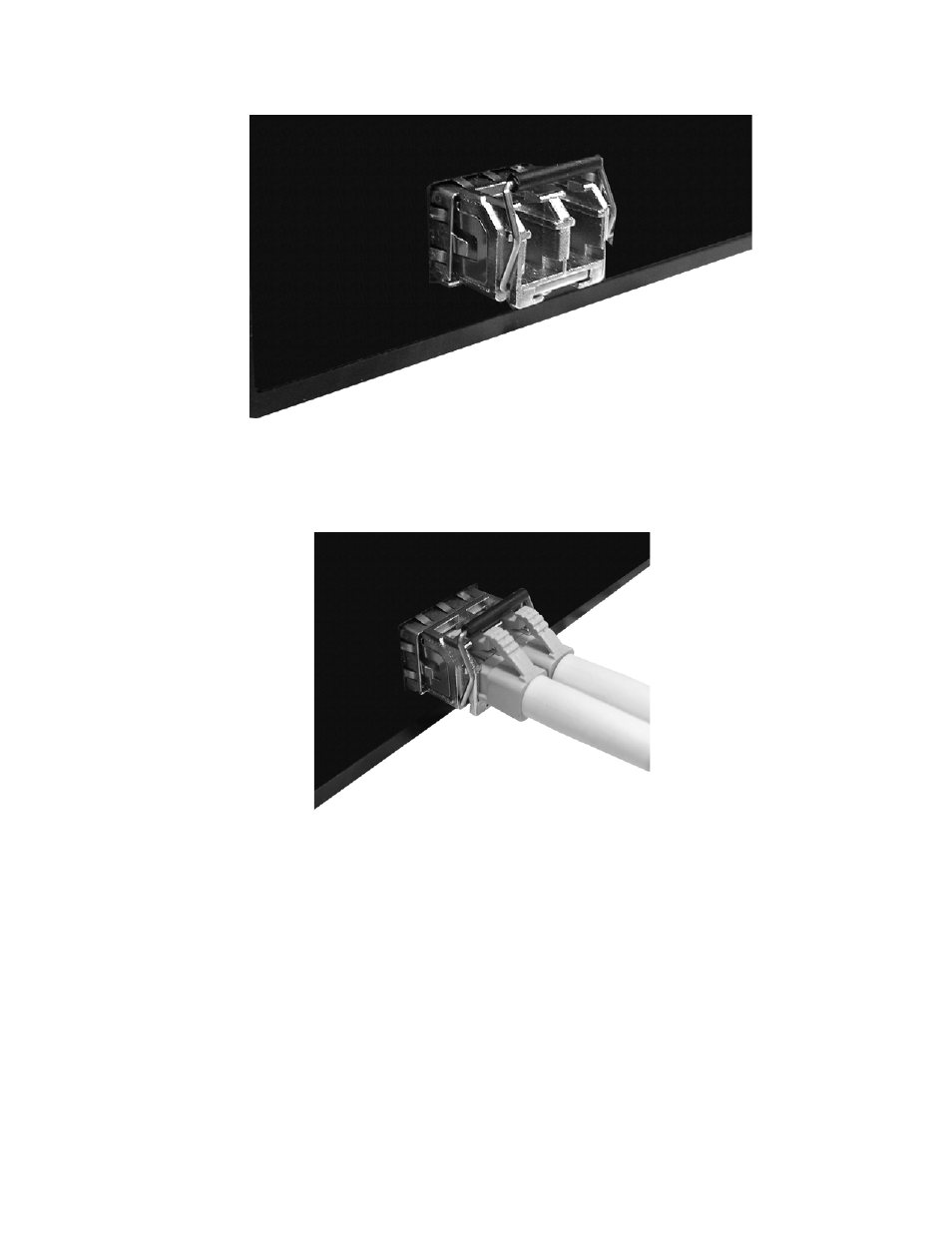

Figure 2.9: Transceiver Inserted

Second, insert the fiber cable LC connector into the transceiver.

Figure 2.10: LC connector to the transceiver

To remove the LC connector from the transceiver, press the upper side of the LC connector to release from the

transceiver and pull it out.
