Ports
RJ-45 ports

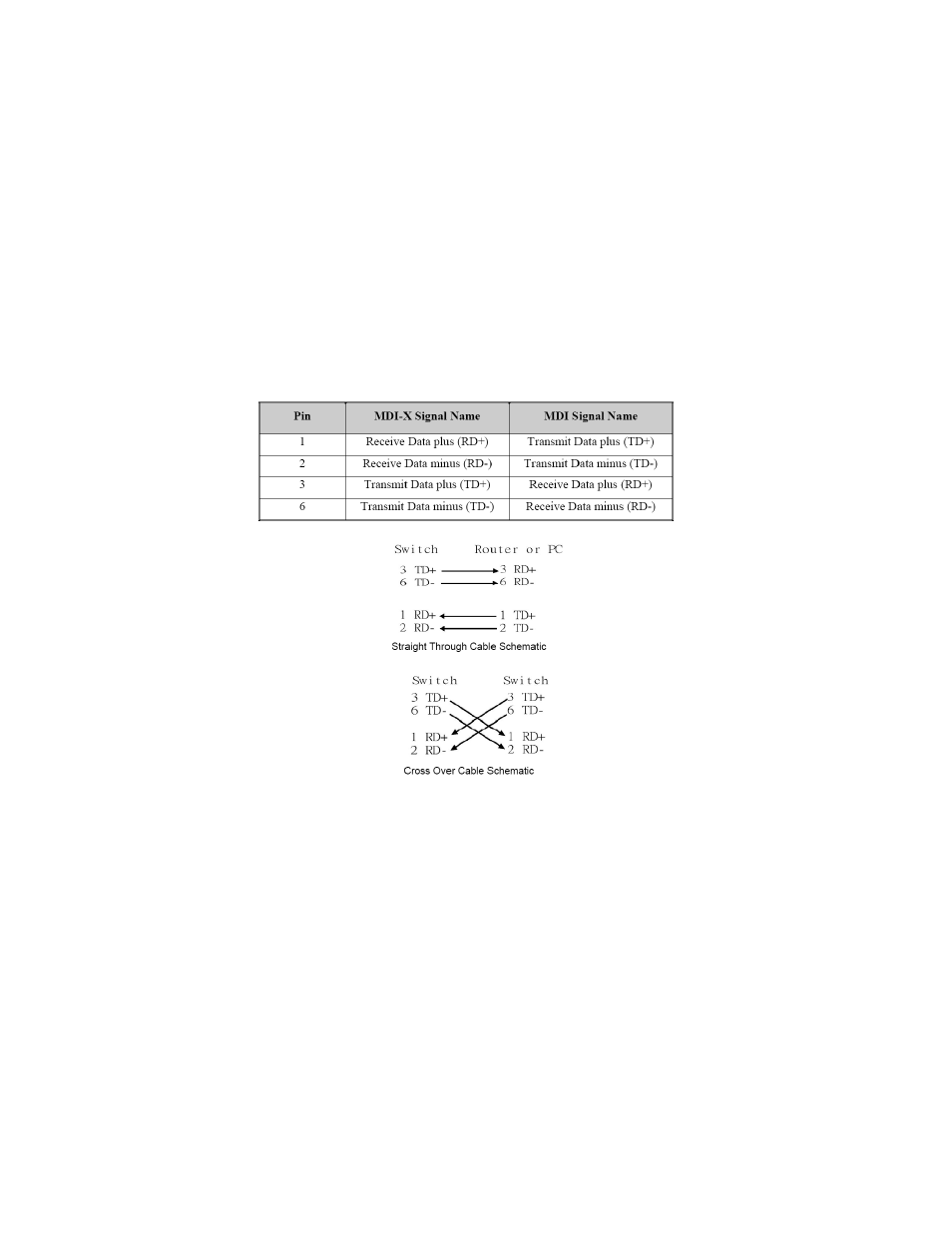

The RJ45 copper ports support auto MDI/MDIX operation. This feature allows network connections to computers, servers, or
other switches using straight-through or crossover cables (See Figure below). Straight-through cable connections: pins 1, 2, 3
and 6, at one end of the cable, are connected straight-through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
shows the 10BASE-T/100BASE-TX MDI and MDI-X port pin outs.
