2 Mini-GBIC combo port
2 auto-detect combo Giga ports — RF45 or fiber. The gigabit Ethernet ports are shared with the mini-GBIC ports. RJ45
UTP (Gigabit Ethernet) ports can operate in half/full-duplex modes and work at speeds of 10/100/1000Mbps that support
auto-sensing technology to enable each port to detect the connecting speed. The mini-GBIC port is a socket for a mini-
GBIC (SFP) fiber transceiver.
Cabling
•
Use four twisted-pair, Category 5e or above cabling for RJ-45 port connection. The cable between the switch and
the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
•
Use the mini-GBIC ports to uplink to another switch by inserting the mini-GBIC (SFP) transceiver.
To connect the transceiver and LC cable, please follow the steps shown below:

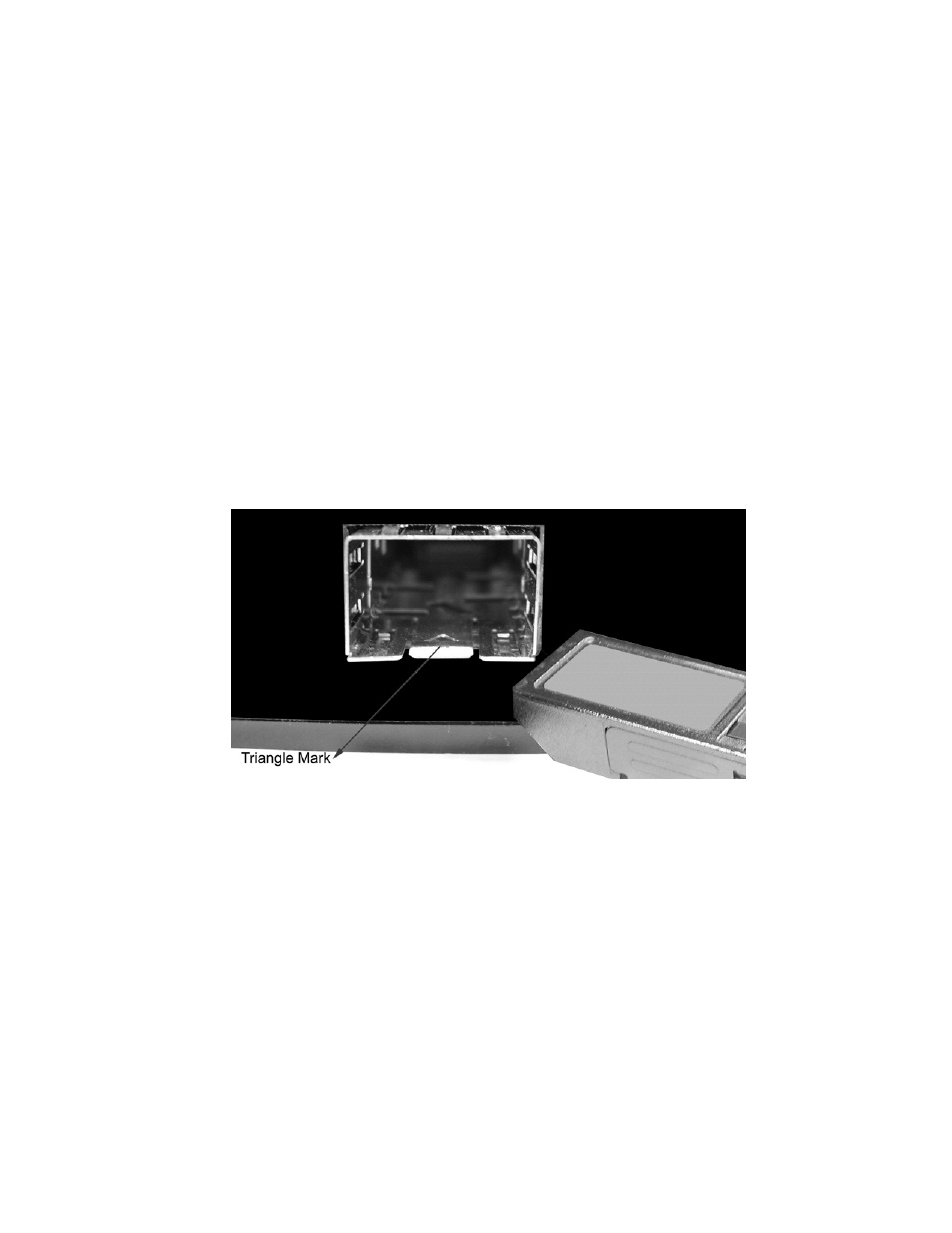

First, insert the transceiver into the SFP module. Notice that the triangle mark is the bottom of the module.
Figure 2.8: Transceiver to the SFP module
