2.2.3 5-digits 7-segment LED Displays
While the GW-7433D boots up, the 5-digits 7-segment LED of the
GW-7433D shows the communication configurations and error status. All of
the information is divided into 4 groups. These groups are displayed by turns.
The information is shown as the figure 2.7.

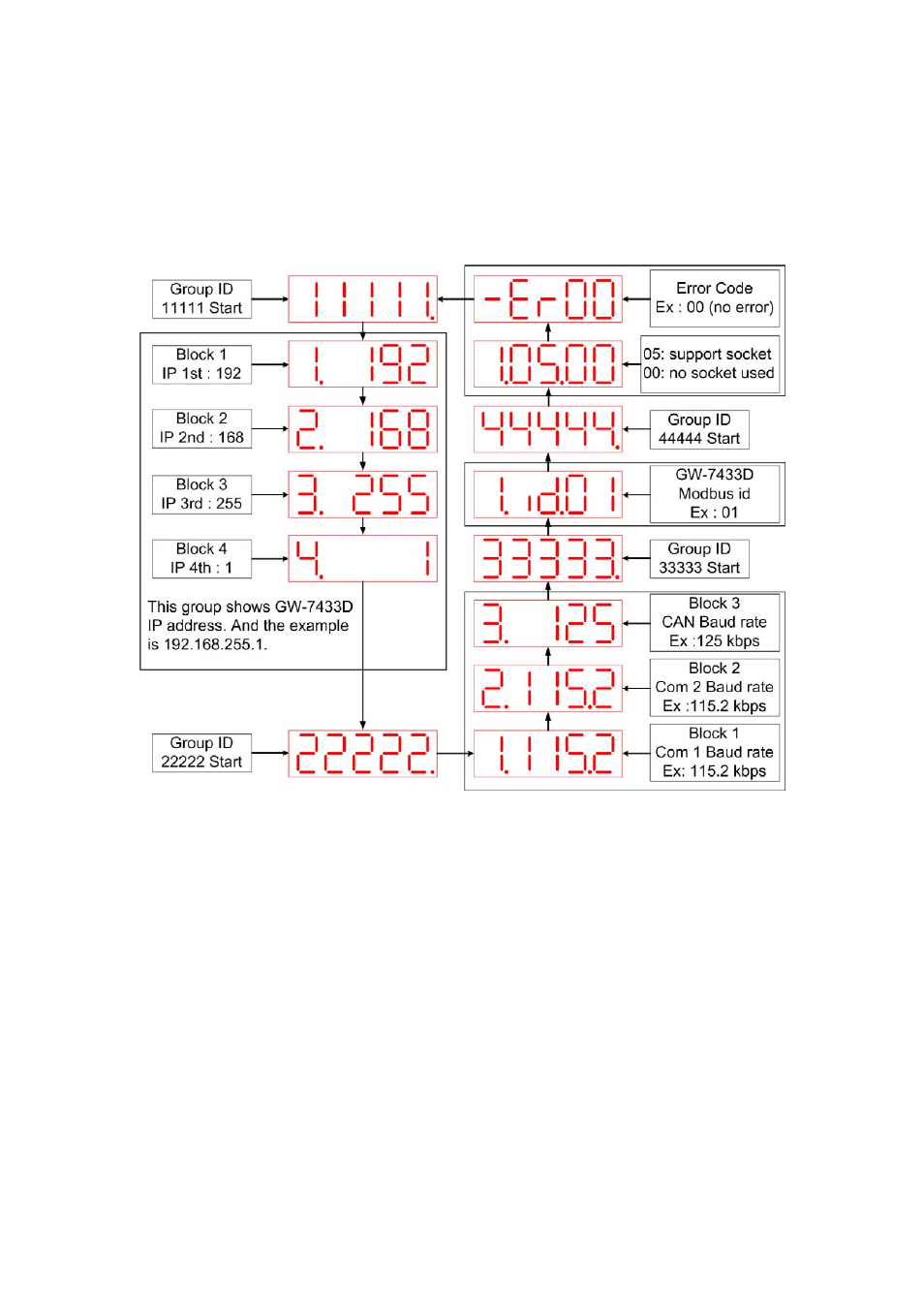

Figure 2.7 The meaning of the 7-segment LED
The information groups of the GW-7433D are as the following list.
● Group-ID 11111: IP information of this GW-7433D
● Group-ID 22222: baud rate of all ports
● Group-ID 33333: configuration of GW-7433D station number.
● Group-ID 44444: client connection information and error state of this
GW-7433D
The IP information format of the GW-7433D is given as follows:
● Group-ID of 5-digit LED: 11111.
● LED-1: indicator, can be 1 or 2 or 3 or 4 for 4 sections of IP address
● LED-2~5: IP address
