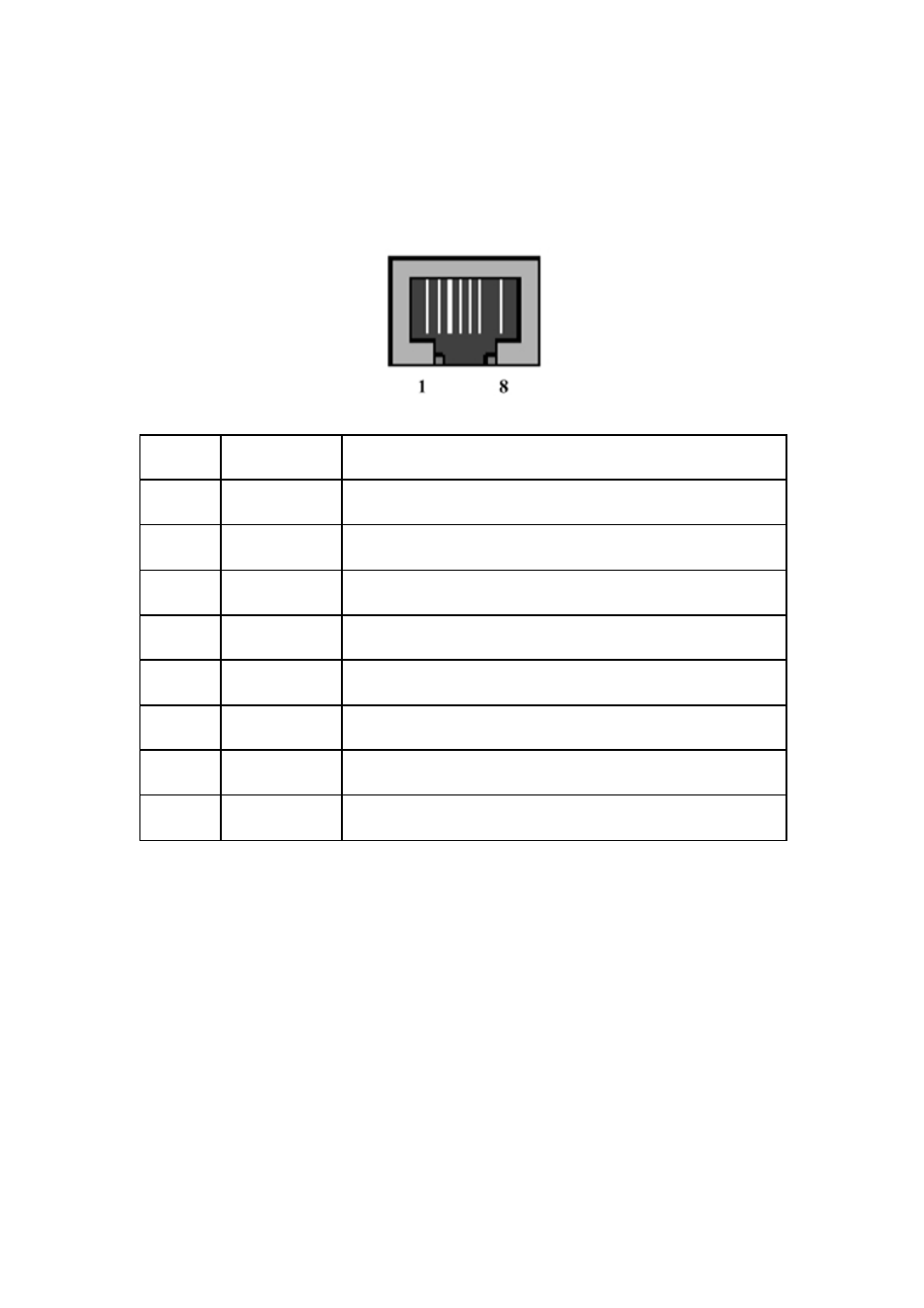

2.1.3 Ethernet connection

The Ethernet (10/100 Base-T) signals are routed to an RJ45 socket for

easy connection using a standard CAT 3 or CAT 5 network cable. On power on
of the GW-7433D, it will auto-negotiate the network speed and connection.

Pin

Name

Description

1

TX+

Transmit Data +

2

TX-

Transmit Data -

3

RX+

Receive Data +

4

N.C.

Not Connected

5

N.C.

Not Connected

6

RX-

Receive Data -

7

N.C.

Not Connected

8

N.C.

Not Connected

Table 2-3: Ethernet Connector Pin Assignment
