MAX106
±5V, 600Msps, 8-Bit ADC with On-Chip
2.2GHz Bandwidth Track/Hold Amplifier
______________________________________________________________________________________
29
TOP VIEW
+5V Track/Hold Analog
+5V Comparator Analog
+5V Logic Digital
-5V Track/Hold Analog
+3.3V PECL Supply
T/H Ground
Comparator Ground
Logic Ground
VCCI
VCCA
VCCD
VEE
VCCO
GNDI
GNDA
GNDD
MAX106
MAX108 192 Ball ESBGA

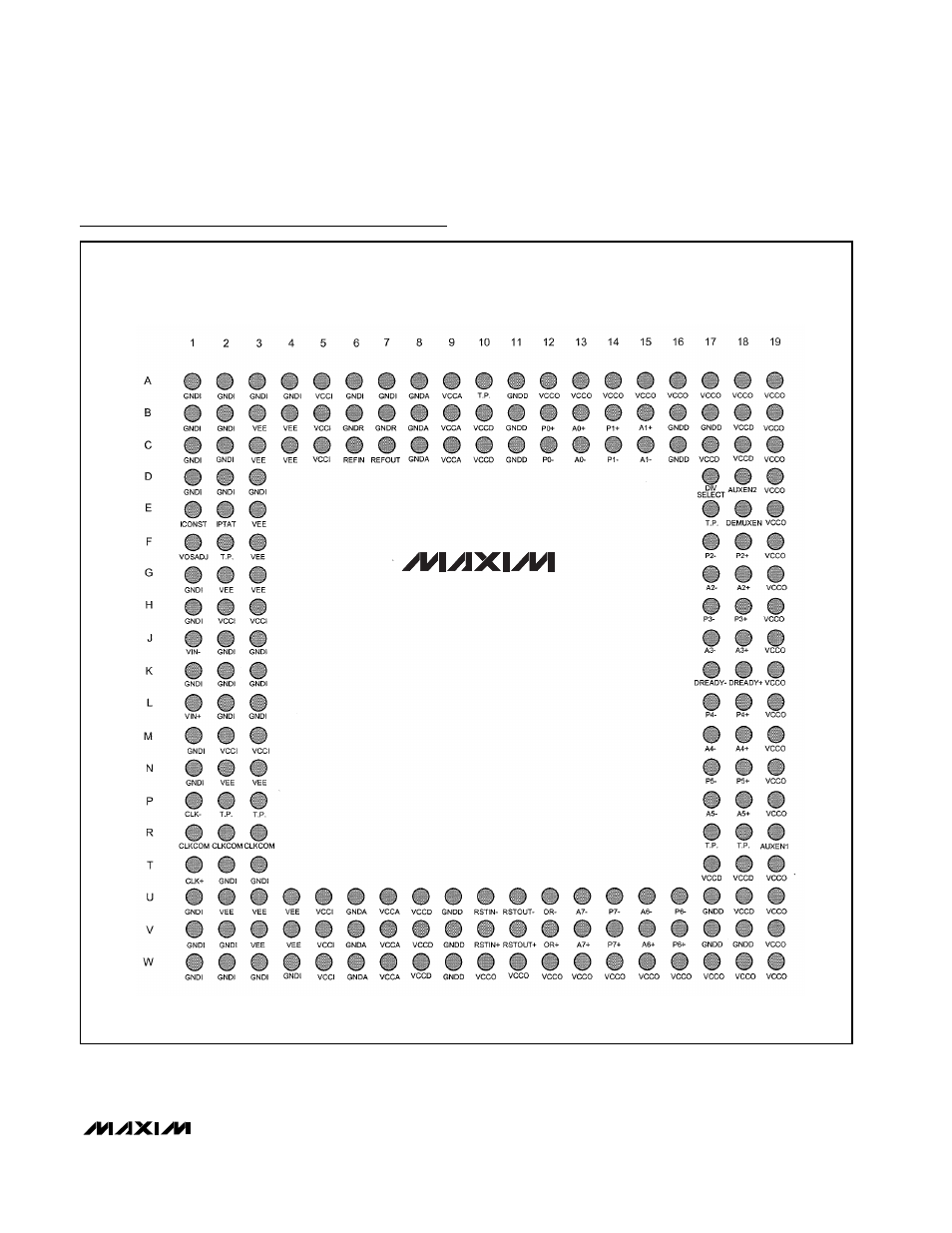

Printed Circuit Board (PCB) Land Pattern
192-Contact ESBGA PCB Land Pattern
