MAX2063
Dual 50MHz to 1000MHz High-Linearity,
Serial/Parallel-Controlled Digital VGA
6

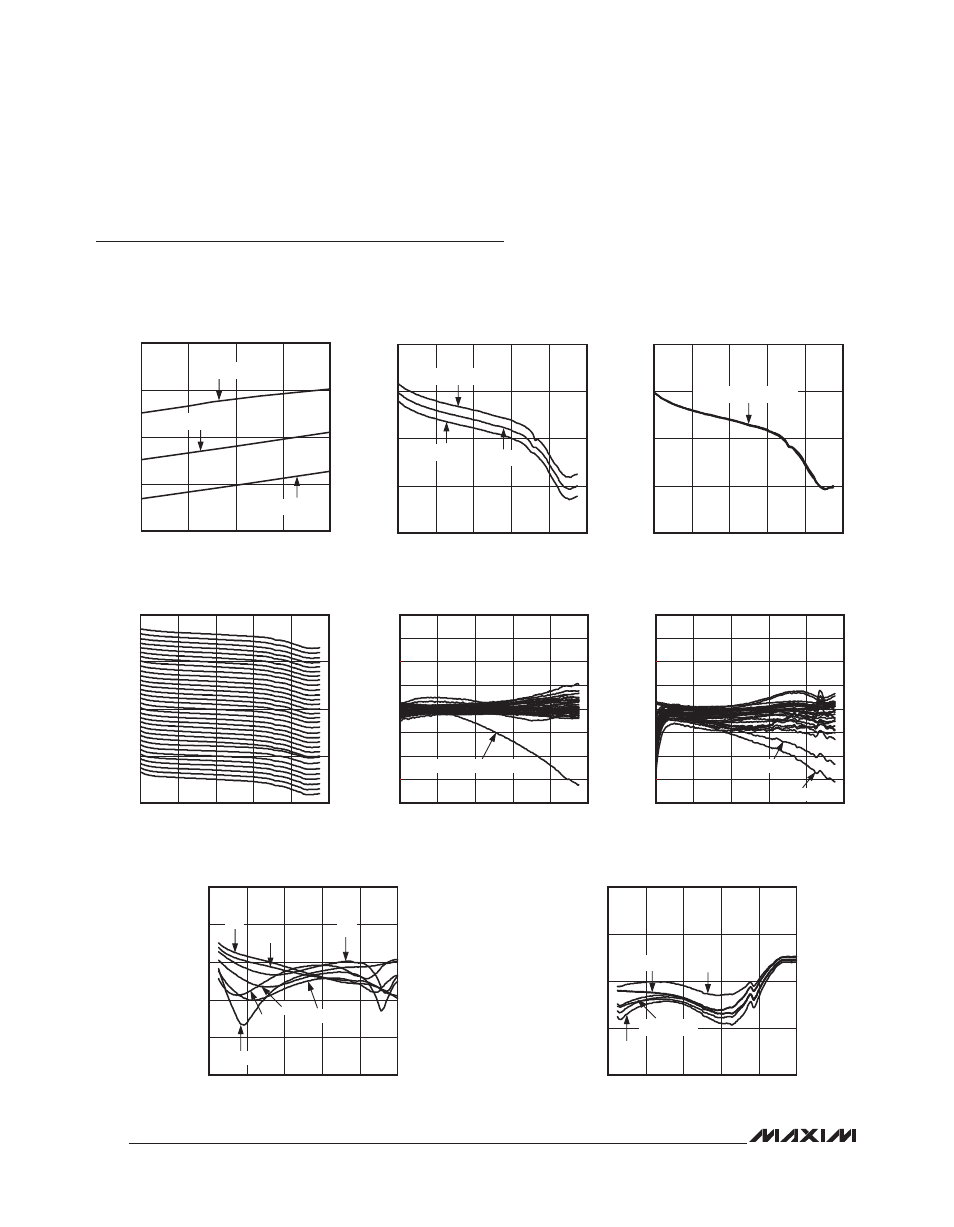

Typical Operating Characteristics
(Typical Application Circuit, V
CC = V CC_AMP_1 = V CC_AMP_2 = V CC_RG = 5V, attenuators are set for maximimum gain, RF ports are
driven from 50ω sources, AMPSET = 0, PD_1 = PD_2 = 0, P IN = -20dBm, f RF = 350MHz, T C = +25°C, unless otherwise noted.)
SUPPLY CURRENT vs. V CC
MAX2063 toc01
V CC (V)
SUPPLY CURRENT (mA)
5.125 5.000 4.875
140
150
160
170
130
4.750 5.250
T C = +85°C
T C = +25°C
T C = -40°C
GAIN vs. RF FREQUENCY
MAX2063 toc02
RF FREQUENCY (MHz)
GAIN (dB)
850 650 450 250
18
20
22
24
16
50 1050
T C = +85°C
T C = +25°C
T C = -40°C
GAIN vs. RF FREQUENCY
MAX2063 toc03
RF FREQUENCY (MHz)
GAIN (dB)
850 650 450 250
18
20
22
24
16
50 1050
V CC = 4.75V, 5.00V, 5.25V
GAIN OVER ATTENUATOR SETTING
vs. RF FREQUENCY
MAX2063 toc04
RF FREQUENCY (MHz)
GAIN OVER ATTENUATOR SETTING (dB)
850 650 450 250
-5
5
15
25
-15
50 1050
ATTENUATOR RELATIVE
ERROR vs. RF FREQUENCY
MAX2063 toc05
RF FREQUENCY (MHz)
RELATIVE ERROR (dB)
850 650 250 450
-0.75
-0.50
-0.25
0
0.50
0.25
0.75
1.00
-1.00
50 1050
ERROR FROM 23dB TO 24dB
ATTENUATOR ABSOLUTE
ERROR vs. RF FREQUENCY
MAX2063 toc06
RF FREQUENCY (MHz)
ABSOLUTE ERROR (dB)
850 650 250 450
-0.75
-0.50
-0.25
0
0.50
0.25
0.75
1.00
-1.00
50 1050
25dB
24dB
INPUT MATCH OVER ATTENUATOR
SETTING vs. RF FREQUENCY
MAX2063 toc07
RF FREQUENCY (MHz)
INPUT MATCH OVER ATTENUATOR SETTING (dB)
800 600 400 200
-40
-30
-20
-10
0
-50
0 1000
31dB
2dB
1dB
4dB
0dB
8dB
16dB
OUTPUT MATCH OVER ATTENUATOR
SETTING vs. RF FREQUENCY
MAX2063 toc08
RF FREQUENCY (MHz)
OUTPUT MATCH OVER ATTENUATOR SETTING (dB)
800 600 400 200
-30
-20
-10
0
-40
0 1000
16dB, 31dB
0dB
1dB, 4dB, 8dB
2dB
