Rainbow Electronics AT49F1025 User Manual

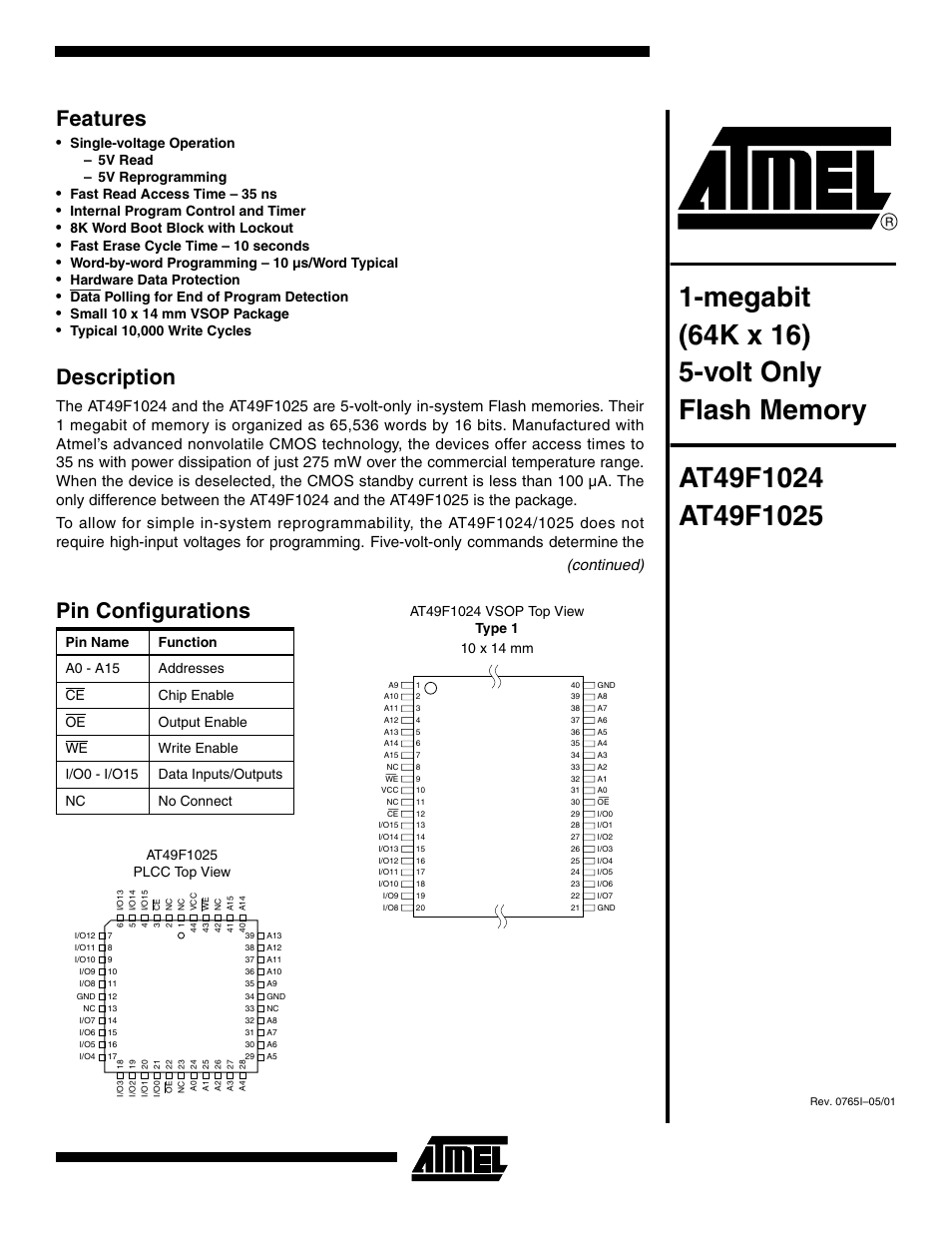

Features, Description, Pin configurations
Table of contents
Document Outline
- Pin Configurations
- Features
- Description
- Block Diagram
- Device Operation
- Command Definition (in Hex)
- Absolute Maximum Ratings*
- DC and AC Operating Range
- Operating Modes
- DC Characteristics
- AC Read Characteristics
- AC Read Waveforms(1)(2)(3)(4)
- Input Test Waveforms and Measurement Level
- Output Test Load
- Pin Capacitance
- AC Word Load Characteristics
- AC Word Load Waveforms
- Program Cycle Characteristics
- Program Cycle Waveforms
- Main Memory or Chip Erase Cycle Waveforms
- Data Polling Characteristics(1)
- Data Polling Waveforms
- Toggle Bit Characteristics(1)
- Toggle Bit Waveforms(1)(2)(3)
- Software Product Identification Entry(1)
- Software Product Identification Exit(1)
- Boot Block Lockout Enable Algorithm(1)
- AT49F1024 Ordering Information
- AT49F1025 Ordering Information
