MAX16064
±0.3% Accurate, Quad, Power-Supply Controller with
Active-Voltage Output Control and PMBus Interface
6 _______________________________________________________________________________________

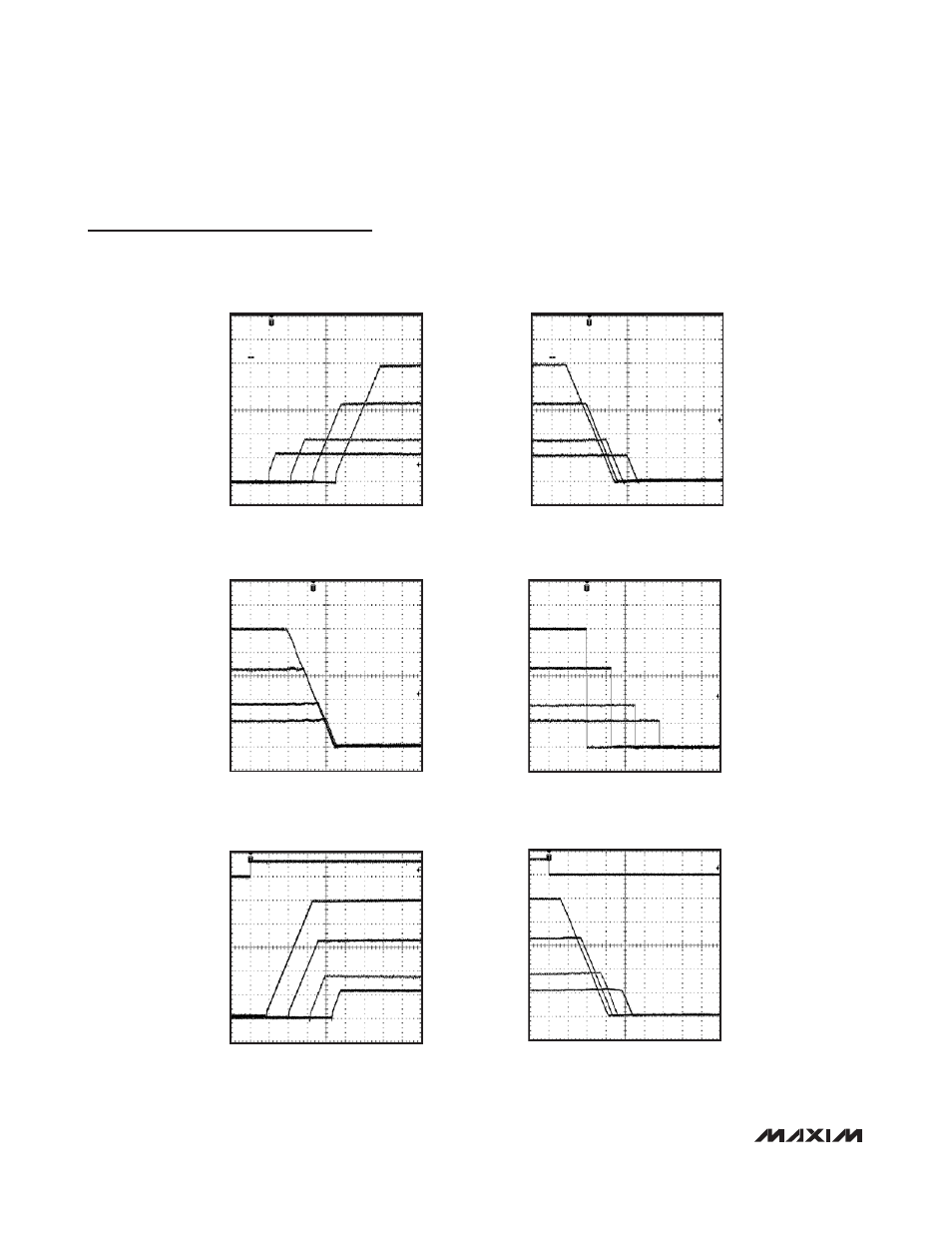

Typical Operating Characteristics (continued)
(V AVDD = V DVDD = 3.3V, T A = +25°C, unless otherwise noted.)
REFIN MODE SOFT-STOP
WITH SEQUENCING
MAX16064 toc10
VOUT0 = 5V
VOUT1 = 3.3V
VOUT2 = 1.8V
VOUT3 = 1.1V
2ms/div
REFIN MODE SOFT-STOP
WITH TRACKING
MAX16064 toc11
VOUT0 = 5V
VOUT1 = 3.3V
VOUT2 = 1.8V
VOUT3 = 1.1V
2ms/div
REFIN MODE OPERATION OFF
WITH SEQUENCING
MAX16064 toc12
VOUT0 = 5V
VOUT1 = 3.3V
VOUT2 = 1.8V
VOUT3 = 1.1V
40ms/div
REFIN MODE SOFT-START FROM
A3 WITH SEQUENCING
MAX16064 toc13
VOUT0 = 5V
A3/CONTROL
5V/div
VOUT1 = 3.3V
VOUT2 = 1.8V
VOUT3 = 1.1V
2ms/div
REFIN MODE SOFT-STOP FROM
A3 WITH SEQUENCING
MAX16064 toc14
VOUT0 = 5V
A3/CONTROL
5V/div
VOUT1 = 3.3V
VOUT2 = 1.8V
VOUT3 = 1.1V
2ms/div
REFIN MODE SOFT-START
WITH SEQUENCING
MAX16064 toc09
VOUT0 = 5V
VOUT1 = 3.3V
VOUT2 = 1.8V
VOUT3 = 1.1V
2ms/div
