MAX16064 Address Assignment
The MAX16064 picks a slave address in one of the two
ways described below:
1) Hardwired by A3:A2:A1.
2) Restored from EEPROM at power-on.
Address assignment order is shown in Figure 10.
The MAX16064 reads A3:A2:A1 address pins upon
device reset and determines its address according to
Table 3.
RESET
t ON0 t RP
t OFF0
t
ON1 t OFF1
t OFF2
t
OFF3
t
ON2
t ON3
ENOUT3
ENOUT2
ENOUT1
ENOUT0
EN
NOTE: MFR_RESET_OUTPUT = 3

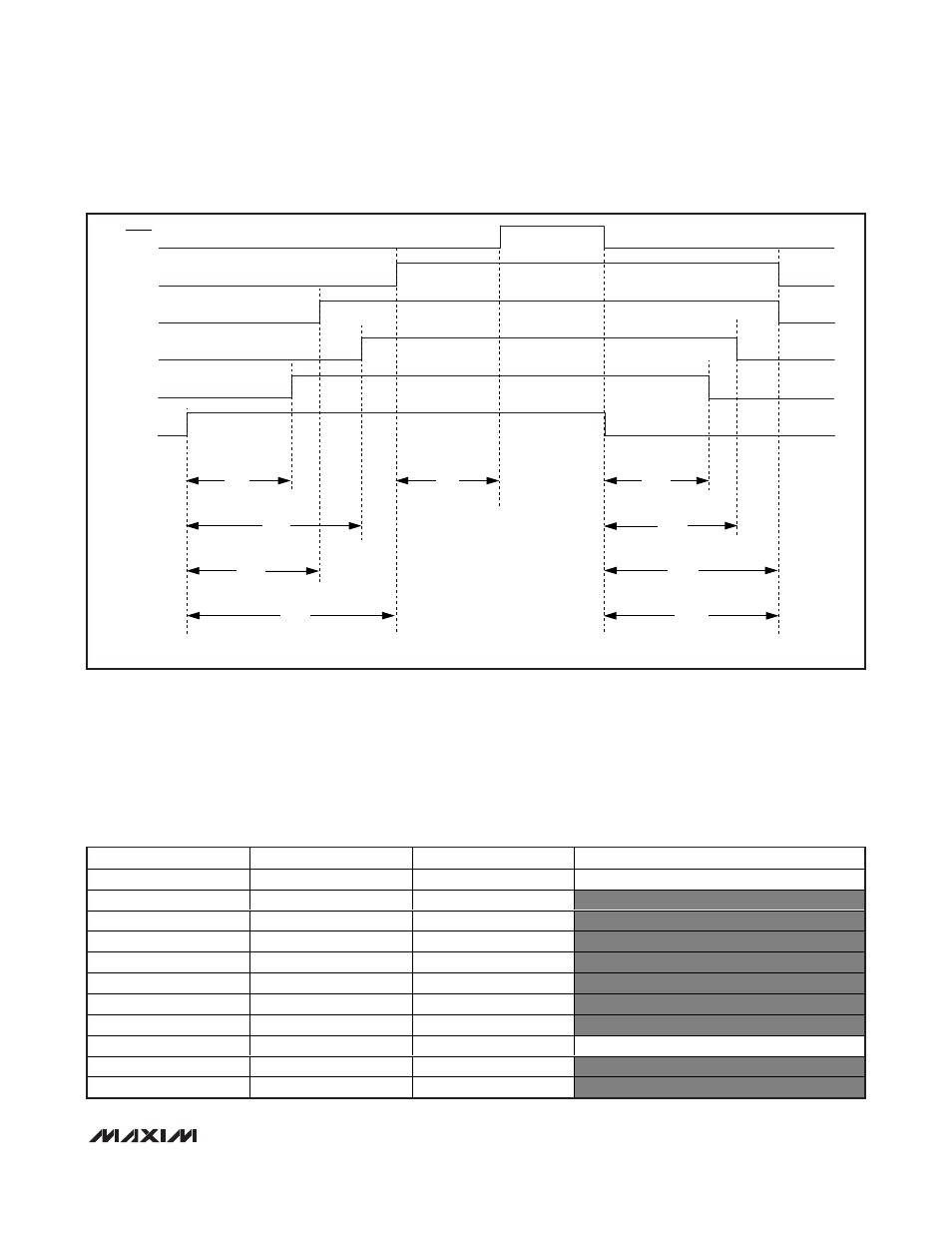

Figure 9. MAX16064 Typical Sequencing Timing
Table 3. MAX16064 A3:A1 Slave Address Assignment
A3/CONTROL A2/SDAE A1/SCLE ADDRESS (BITS 7–1)
L L L 40h
L L Z 01h*
L Z L 02h
L Z Z 03h
Z L L 04h
Z L Z 05h
Z Z L 06h
Z Z Z 07h
L L H 09h
L Z H 0Bh
Z L H 0Dh
