Advance Information W27LE520
Publication Release Date: 4/26/2000
- 5 - Revision A1
AC CHARACTERISTICS
AC Test Conditions
PARAMETER CONDITIONS
Input Pulse Levels 0V/3V
Input Rise and Fall Times 10 nS
Input and Output Timing Reference Level 1.5V/1.5V
Output Load C L = 100 pF, I OH /I OL = -0.4 mA/2.1 mA

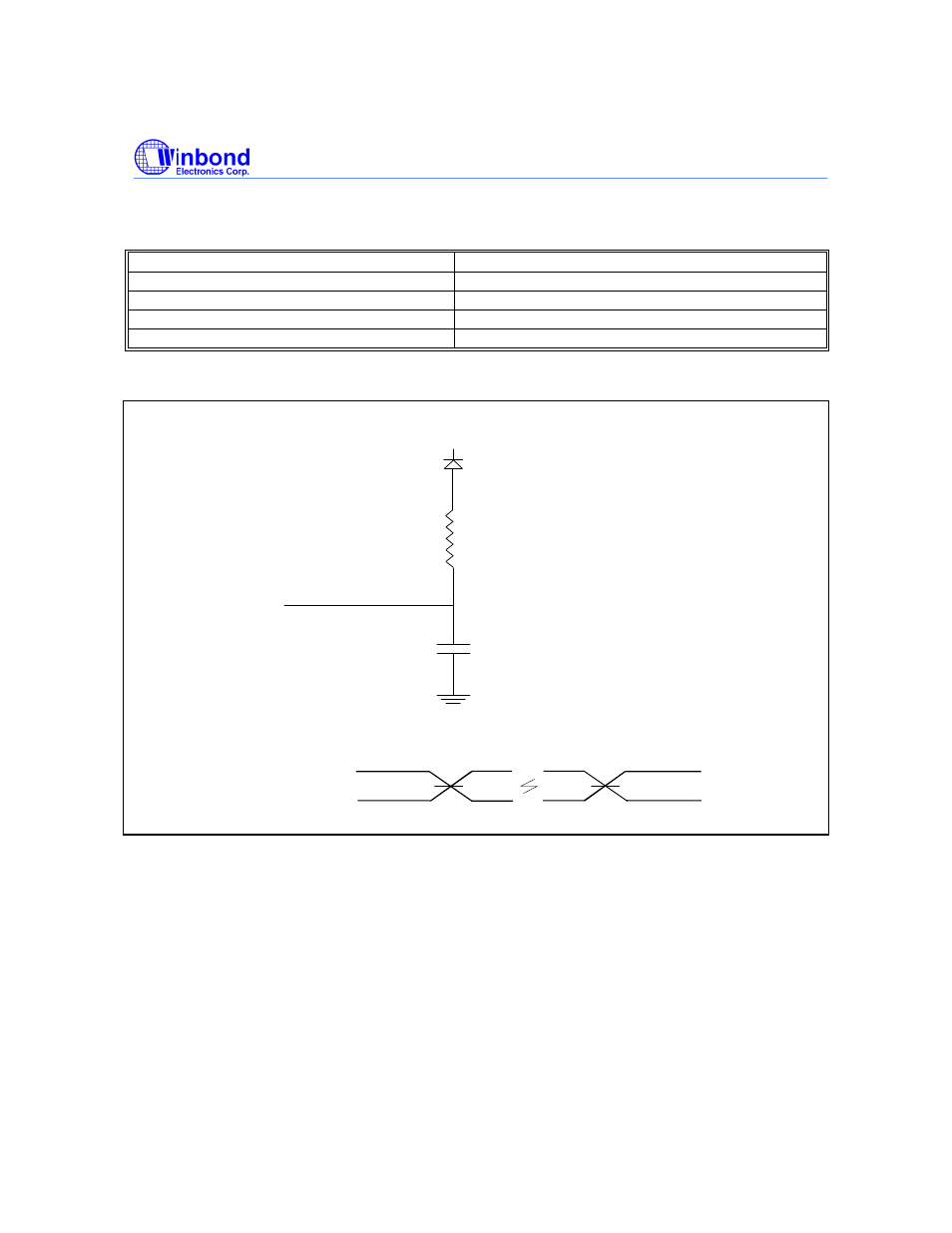

AC Test Load and Waveforms
+1.3V
3.3K ohm
100 pF (Including Jig and Scope)
D
(IN914)
OUT
3V
0V
1.5V 1.5V
Test Points Test Points
Input Output
