Preliminary W49L102
- 12 -
Power-up Timing
PARAMETER SYMBOL TYPICAL UNIT
Power-up to Read Operation T PU . READ 200 µ
S
Power-up to Write Operation T PU . WRITE 10 mS
CAPACITANCE
(V DD = 3.3V, T A = 25
°
C, f = 1 MHz)
PARAMETER SYMBOL CONDITIONS MAX. UNIT
I/O Pin Capacitance C I/O V I/O = 0V 12 pf
Input Capacitance C IN V IN = 0V 6 pf
AC CHARACTERISTICS
AC Test Conditions
PARAMETER CONDITIONS
Input Pulse Levels 0.4V/2.4V
Input Rise/Fall Time < 5 nS
Input/Output Timing Level 1.5V/1.5V
Output Load 1 TTL Gate and C L = 30 pF for 55/70 nS
C L = 100 pF for 90 nS

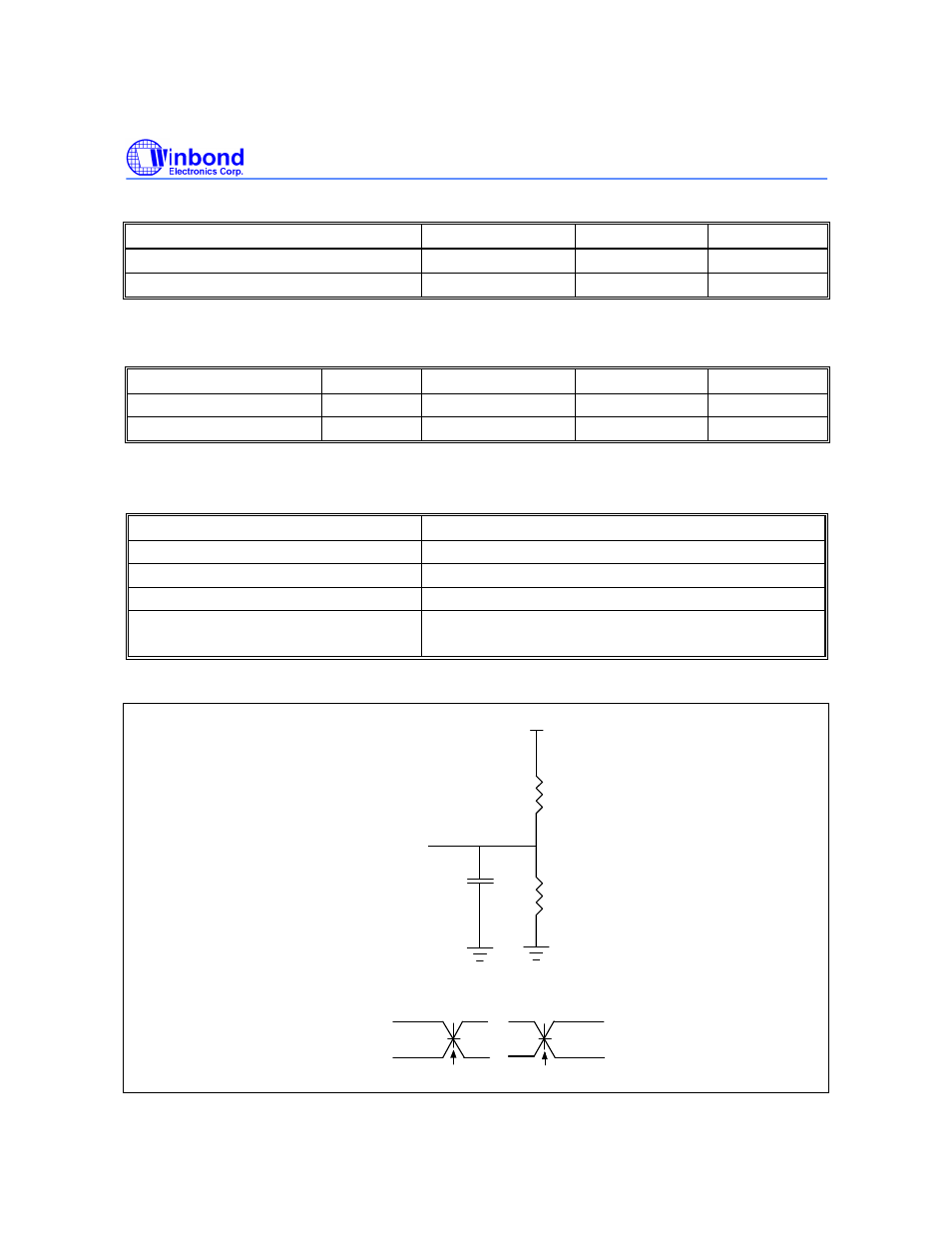

AC Test Load and Waveform
+3.3V
1.8K
1.3K
D OUT
Ω
Ω
30 pF for 55/70 nS
100 pF for 90 nS
(Including Jig and Scope)
Input
2.4V
0.4V
Test Point Test Point
1.5V 1.5V
Output
