Driving Load Currents Higher than 50mA
The MAX6965 can be used to drive loads drawing more
than 50mA, like relays and high-current white LEDs, by
paralleling outputs. Use at least one output per 50mA of
load current; for example, a 6V 330mW relay draws 55mA
and needs two paralleled outputs to drive it. Ensure that
the paralleled outputs chosen are controlled by the same
blink phase register, i.e., select outputs from the O0
through O7 range. This way, the paralleled outputs are
turned on and off together. Do not use output O8 as part of
a load-sharing design. O8 cannot be switched at the same
time as any of the other outputs because it is controlled by
a different register.
The MAX6965 must be protected from the negative
voltage transient generated when switching off induc-
tive loads, such as relays, by connecting a reverse-
biased diode across the inductive load (Figure 19). The
peak current through the diode is the inductive load’s
operating current.
Power-Supply Considerations
The MAX6965 operates with a power-supply voltage of
2V to 3.6V. Bypass the power supply to GND with at
least 0.047µF as close to the device as possible.
MAX6965
9-Output LED Driver with Intensity Control
16 ______________________________________________________________________________________
Table 9. PWM Intensity Settings (Blink Disabled)
PWM DUTY CYCLE
OUTPUT BLINK PHASE 0
REGISTER BIT = 0
PWM DUTY CYCLE
OUTPUT BLINK PHASE 0
REGISTER BIT = 1
OUTPUT
(OR
GLOBAL)
INTENSITY
SETTING
LOW TIME HIGH TIME
LED BEHAVIOR WHEN
OUTPUT BLINK PHASE 0
REGISTER BIT = 0
(LED IS ON WHEN
OUTPUT IS LOW)
LOW TIME HIGH TIME
LED BEHAVIOR WHEN
OUTPUT BLINK PHASE 0
REGISTER BIT = 1
(LED IS ON WHEN
OUTPUT IS LOW)
0x0 1/16 15/16 Lowest PWM intensity 15/16 1/16 Highest PWM intensity
0x1 2/16 14/16 14/16 2/16
0x2 3/16 13/16 13/16 3/16
0x3 4/16 12/16 12/16 4/16
0x4 5/16 11/16 11/16 5/16
0x5 6/16 10/16 10/16 6/16
0x6 7/16 9/16 9/16 7/16
0x7 8/16 8/16 8/16 8/16
0x8 9/16 7/16 7/16 9/16
0x9 10/16 6/16 6/16 10/16
0xA 11/16 5/16 5/16 11/16
0xB 12/16 4/16 4/16 12/16
0xC 13/16 3/16 3/16 13/16
0xD 14/16 2/16
Increasing PWM intensity
2/16 14/16
Increasing PWM intensity
0xE 15/16 1/16 Highest PWM intensity 1/16 15/16 Lowest PWM intensity
0xF Static low Static low
Full intensity, no PWM
(LED on continuously)
Static high
impedance
Static high
impedance
LED off continuously

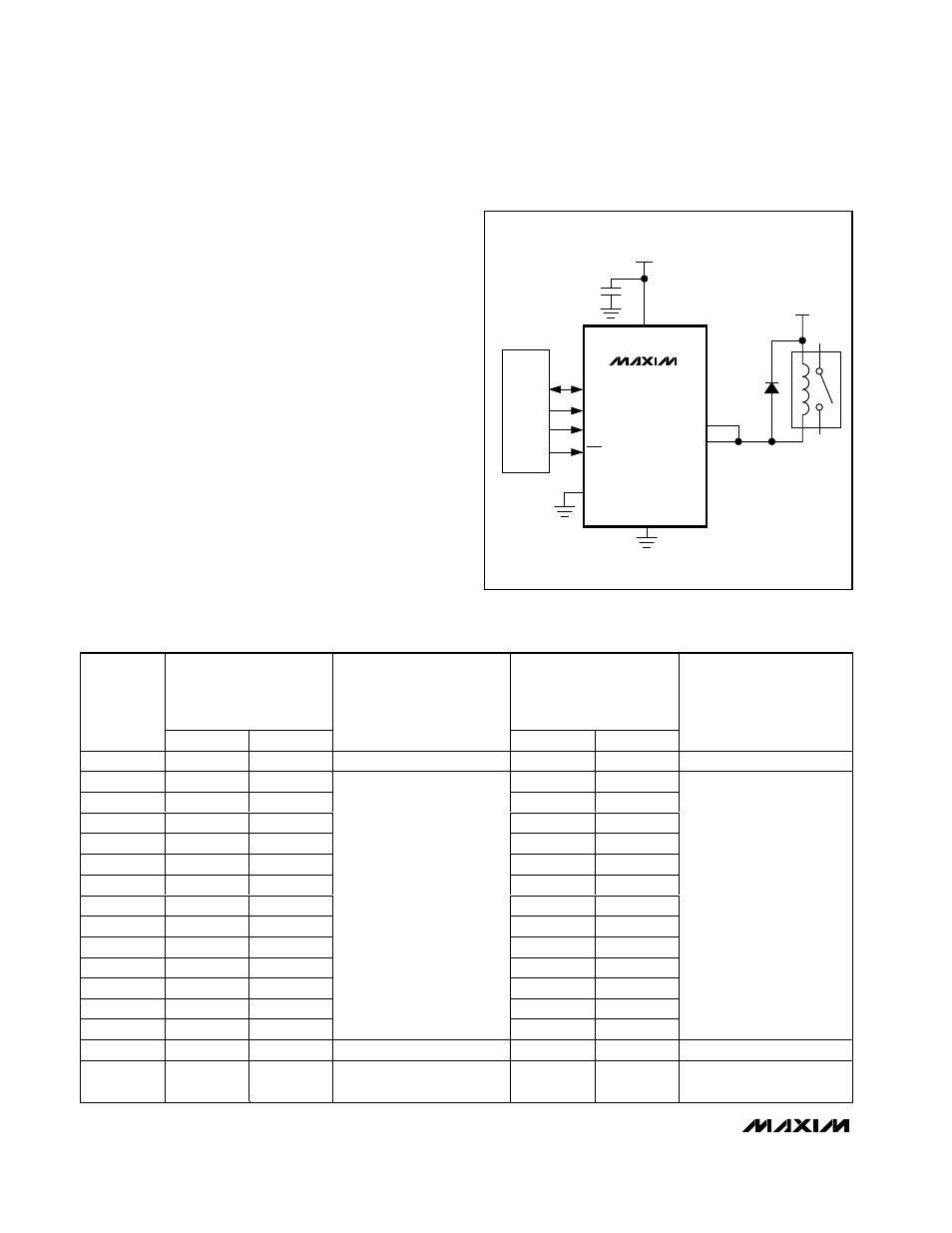

Figure 19. Diode-Protected Switching Inductive Load
MAX6965
O8
O0
O1
O2
O3
O4
O5
O6
O7
V+
2V TO 3.6V
µC
SDA
SCL
BLINK
SDA
I/O
AD0
SCL
I/O
GND
0.047 µF
RST
BAS16
7V
