3

9363 Function Submenu List and Descriptions

3-4

9363 PRODUCT MANUAL

9363-OM (V1.2)

(continued)

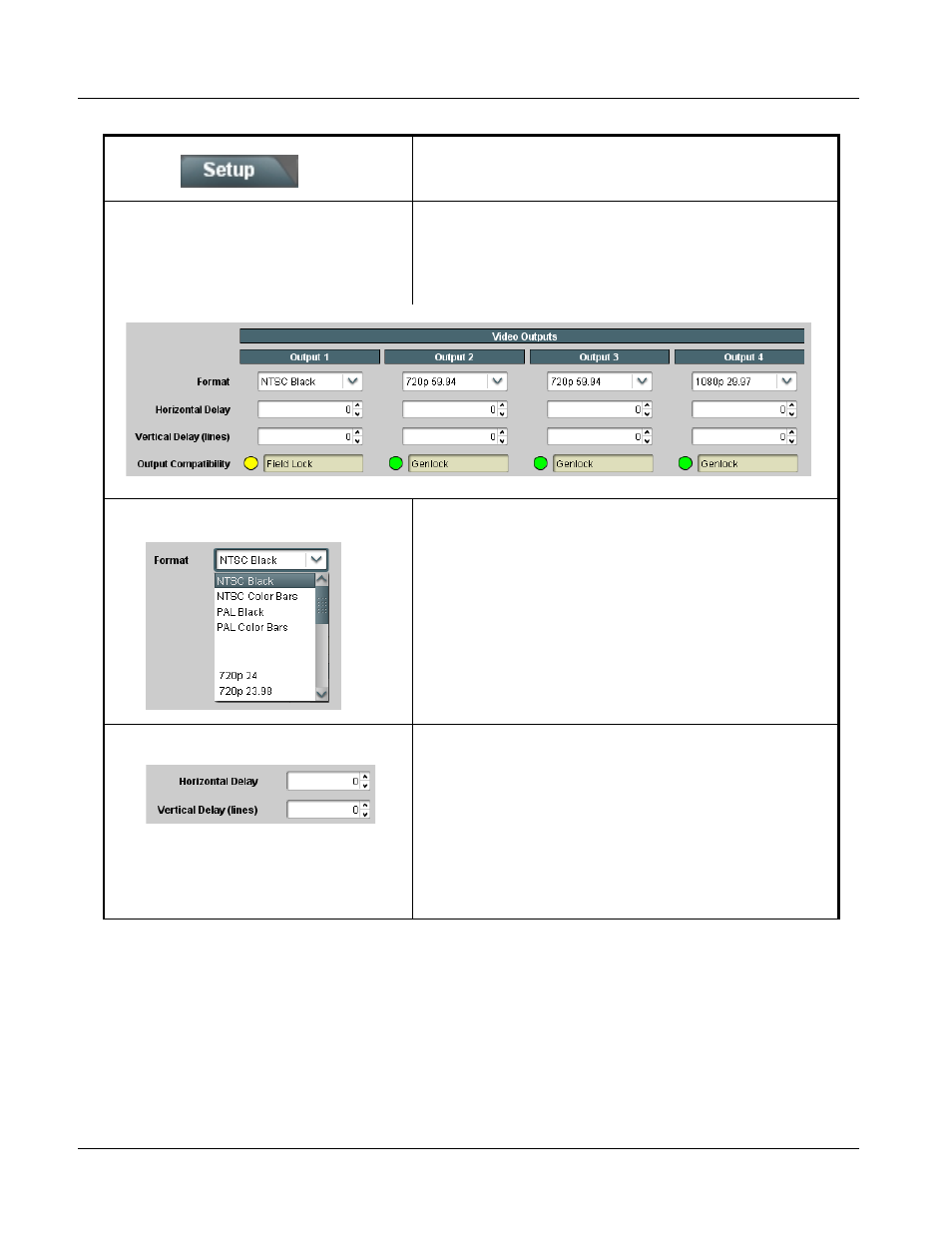

• Reference Video Output Controls

For each of the card’s four reference output pairs, provides independent
controls for output format/rate, as well as horizontal and vertical delay
controls. Also shows lock status for each channel selection.

Each of the four output channels have identical, independent controls
which are described below.

• Format Select

Provides multiple format and rate choices for respective output channel.

Note: Refer to Available Output Formats/Rates (p. 1-4) in Chapter 1,
“Introduction” for available formats for each input format supported and
other notes.

• Horizontal/Vertical Offset Controls

Provides controls to offset output video sync relative from input or internal
source (Horizontal Delay values in pixels; Vertical Delay values in lines).

Positive setting delay-offsets output reference by selected value

(e.g., in NTSC Black output mode for Vertical Delay setting of 1,
output sync is delayed 1 line.

Negative (wrap-around) setting advance-offsets output reference by

selected value (e.g., in NTSC Black output mode for Vertical Delay
setting of 524 (same as “-1”), output sync coincides with 524th line
(525 minus 1 line) of input reference.

Note: All offset control values are relative to the selected input reference

source.

Table 3-1

9363 Function Submenu List — continued
