9363-OM (V1.2)

9363 PRODUCT MANUAL

2-3

Installation and Setup

Installing a Rear I/O Module

Installing a Rear I/O Module

Install a Rear I/O Module as follows:

1.

On the frame, determine the slot in which the 9363 is to be installed.

2.

In the mounting area corresponding to the slot location, install
Rear I/O Module as shown in Figure 2-2.

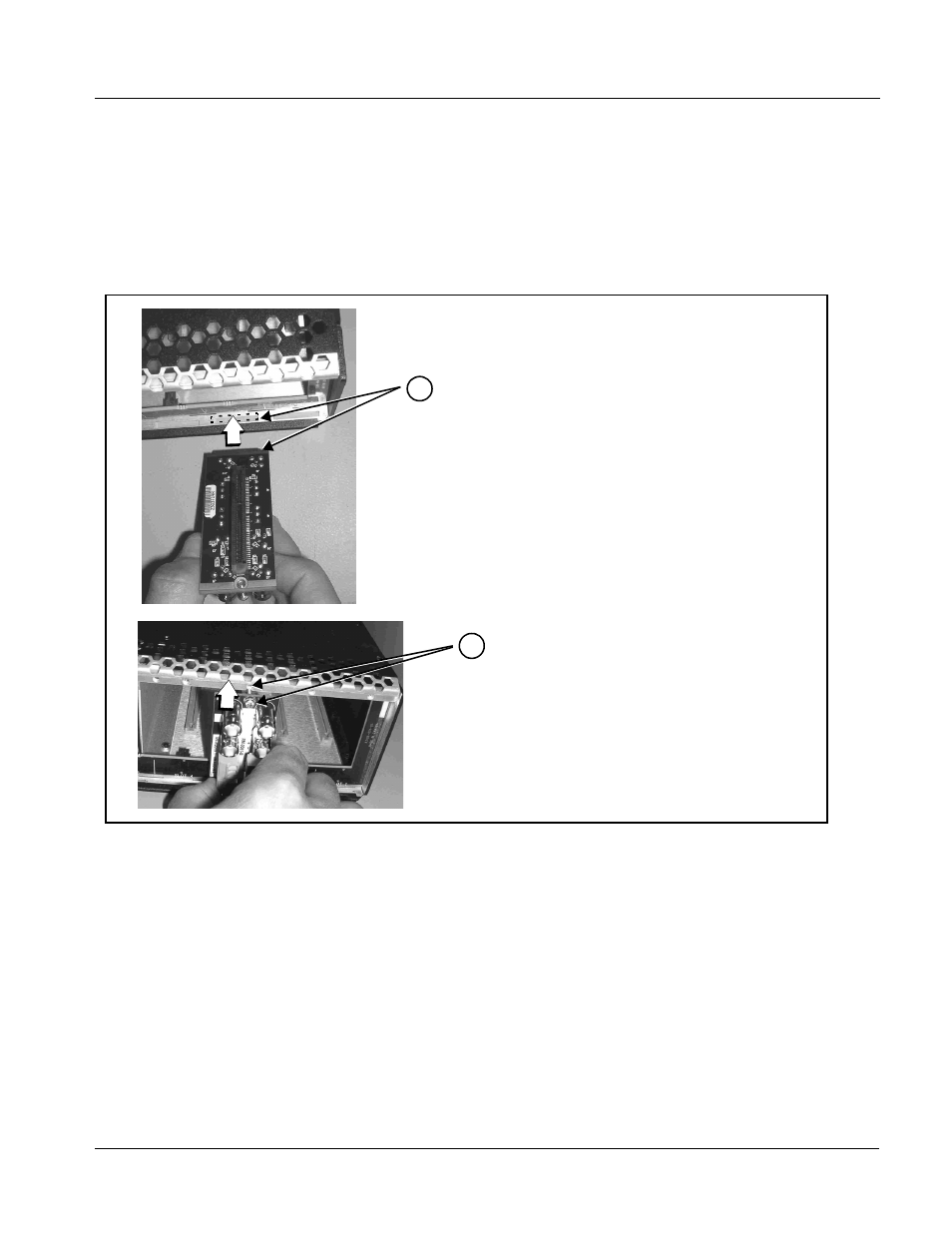

Figure 2-2 Rear I/O Module Installation


Align and engage mounting tab on Rear
I/O Module with the module seating slot
on rear of frame chassis.

Hold top of Rear I/O Module flush against
frame chassis and start the captive screw.
Lightly tighten captive screw.


1

2
