Chapter 3
Chapter 3
Operating Instructions
Overview
This chapter contains the following information:
• Accessing the 9363 Card Using DashBoard™ Remote
Control (p. 3-1)
• 9363 Function Submenu List and Descriptions (p. 3-2)
• Card-Edge Control/Display (p. 3-8)
• Troubleshooting (p. 3-9)
Accessing the 9363 Card Using DashBoard™ Remote Control
1. On the computer connected to the frame LAN, open DashBoard™.

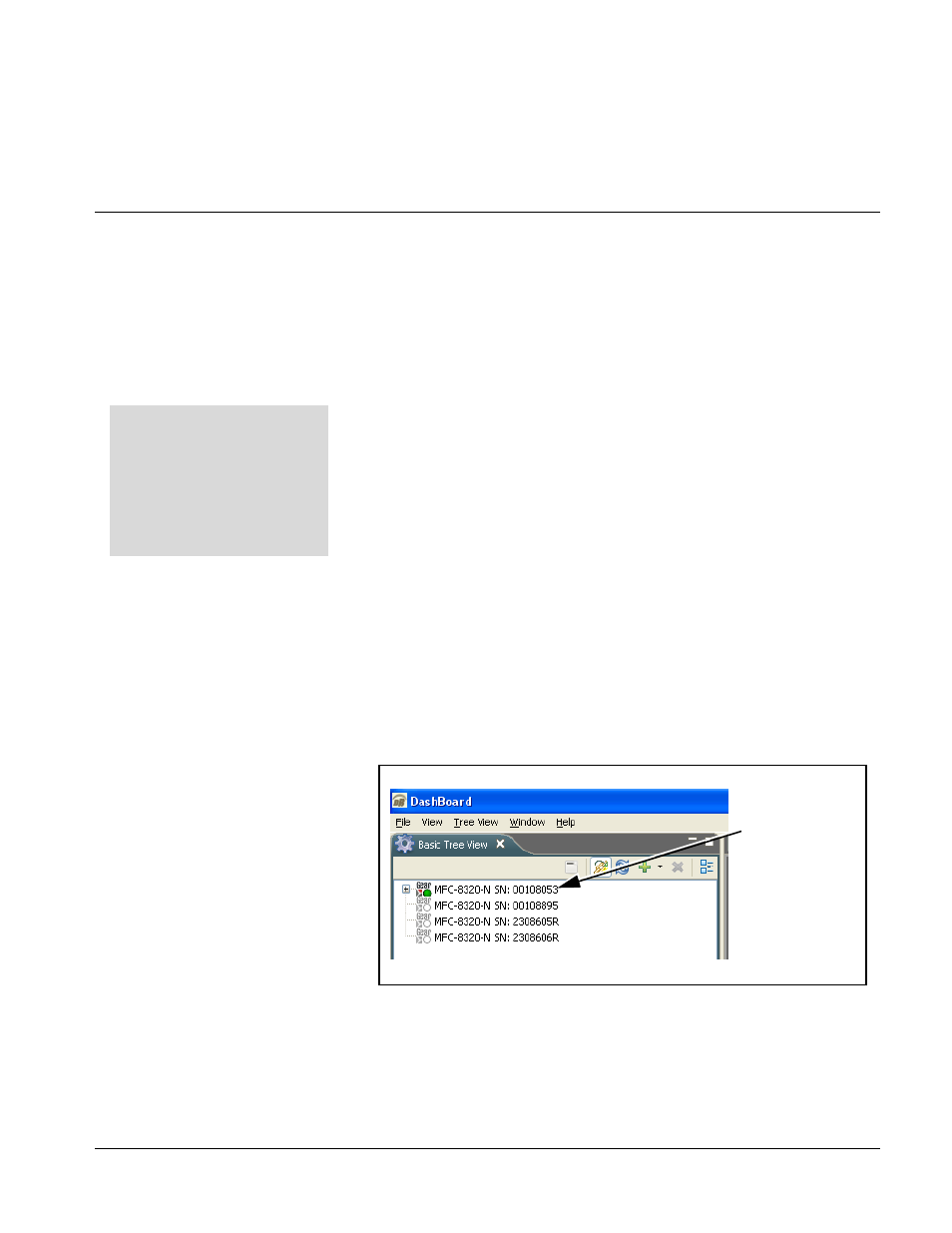

2. As shown below, in the left side Basic View Tree locate the Network
Controller Card associated with the frame containing the 9363 card to be
accessed (in this example, “MFC-8320-N SN: 00108053”).
If you are already familiar
with using DashBoard or a
Cobalt Remote Control
Panel to control Cobalt
cards, please skip to 9363
Function Submenu List and
Descriptions (p. 3-2).
