Installing a Rear I/O Module

2-2

9363 PRODUCT MANUAL

9363-OM (V1.2)

Installing a Rear I/O Module

9363 Rear I/O Modules

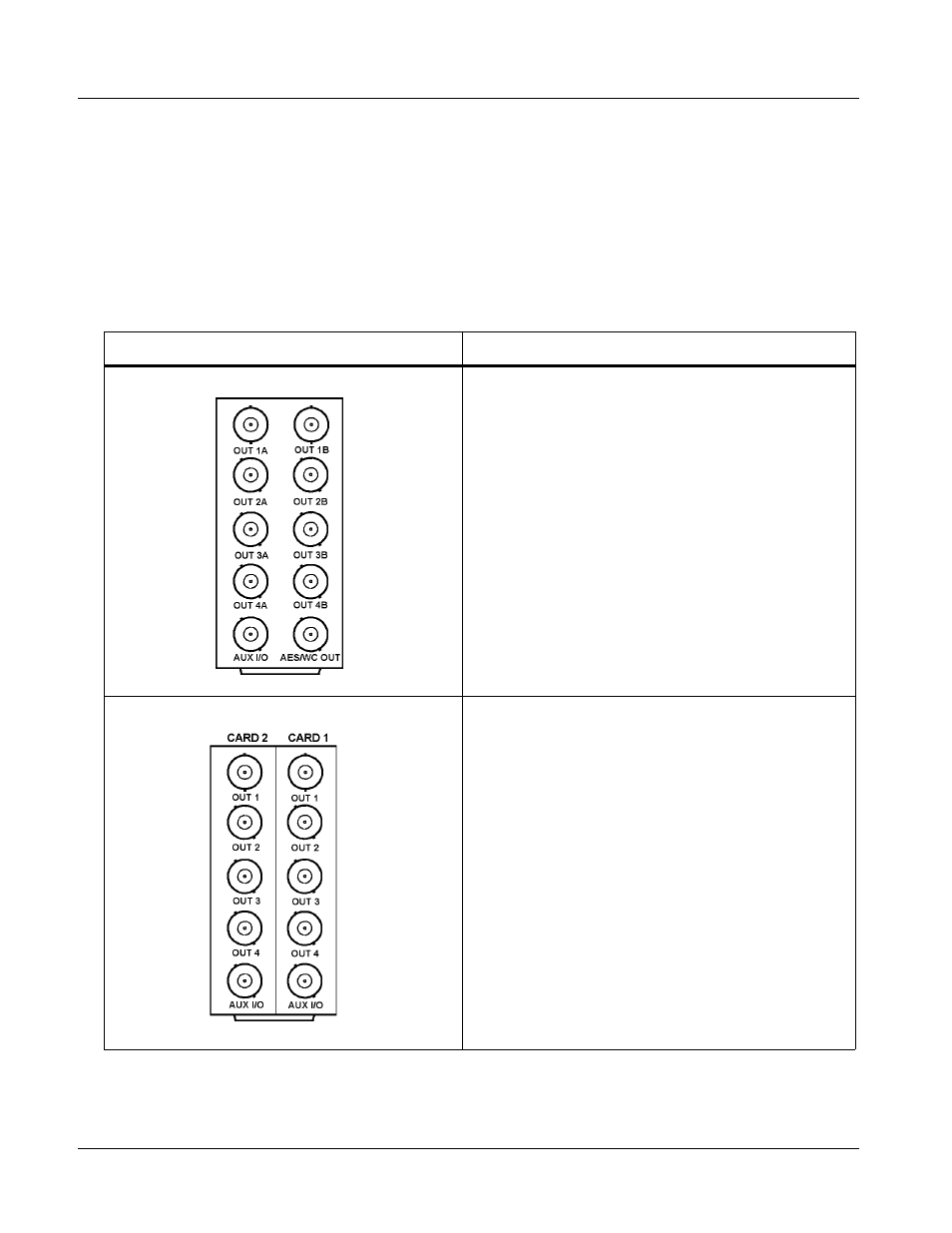

Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9363.

Table 2-1

9363 Rear I/O Modules

9363 Rear I/O Module

Description

RM20-9363-A

Provides the following connections:

• Four pairs of output reference channels

(

OUT 1A / OUT 1B thru OUT 4A / OUT 4B

)

• Dedicated AES/word clock output (

AES/WC OUT

)

• Multi-function port (

AUX I/O

). Serves as either extra

reference input or AES/word clock output copy.

Note: Refer to Setting Card Jumpers (p. 2-1) for

setting connector function.

RM20-9363-A/S

Split Rear Module. Provides each of the following
connections for two 9363 cards:

• Four output reference channels

(

OUT 1 thru OUT 4

)

• Multi-function port (

AUX I/O

). Serves as either extra

reference input or AES/word clock output.

Note: Refer to Setting Card Jumpers (p. 2-1) for

setting connector function.
