Troubleshooting
3-34 9305 PRODUCT MANUAL 9305-OM (V4.1)
9305 Processing Error Troubleshooting
Table 3-4 provides 9305 processing troubleshooting information. If the 9305
card exhibits any of the symptoms listed in Table 3-4, follow the
troubleshooting instructions provided.
Note: The error indications shown below are typical for the corresponding error con-
ditions listed. Other error indications not specified here may also be displayed
on DashBoard™ and/or the 9305 card edge status indicators.
Note: Where errors are displayed on both the 9305 card and network remote con-
trols, the respective indicators and displays are individually described in this
section.

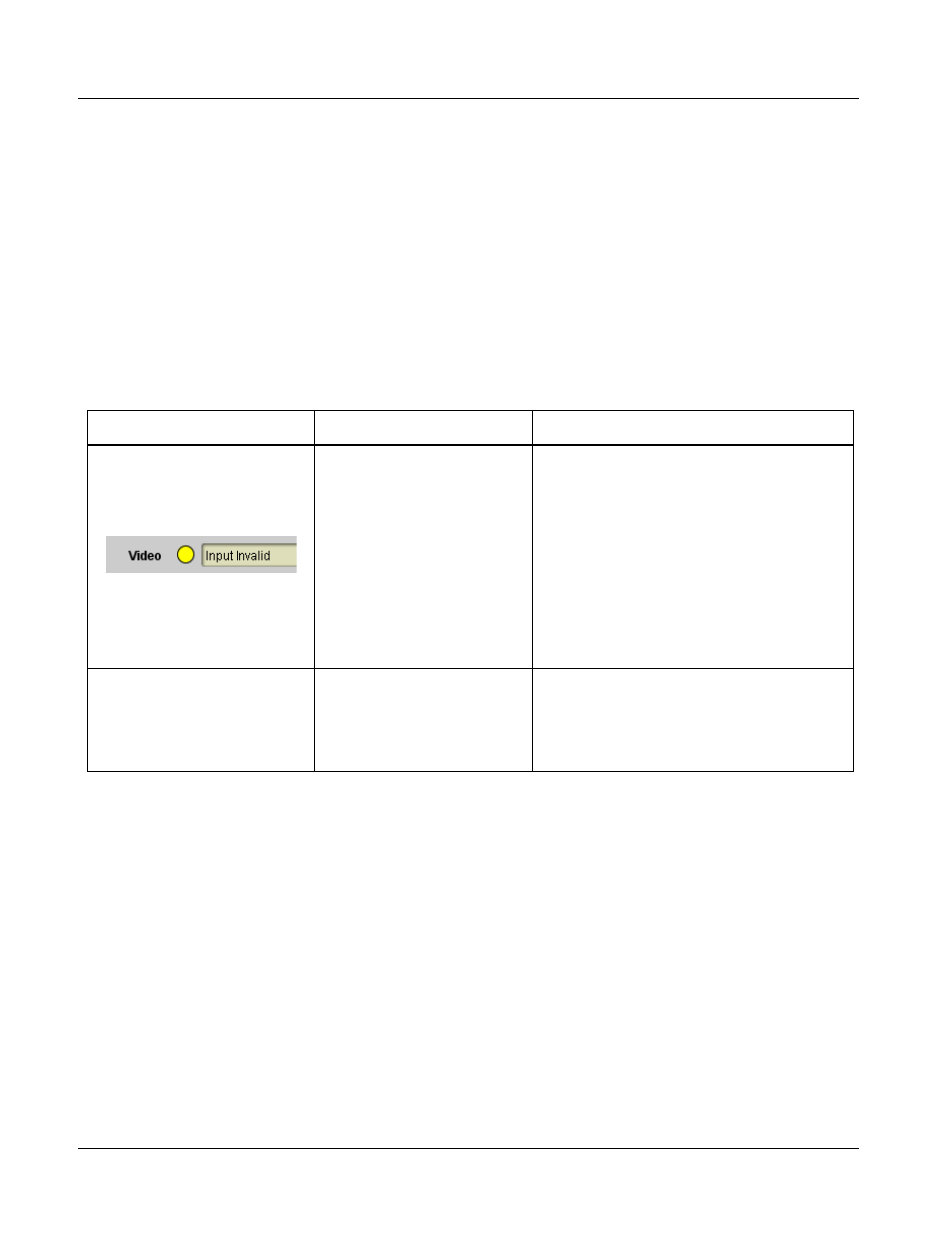

Table 3-4 Troubleshooting Processing Errors by Symptom
Symptom Error/Condition Corrective Action
• DashBoard™ shows
Video yellow icon and Input
Invalid message in 9305
Card Info pane.
• Card edge Input Format
LEDs show continuous
cycling.
No SDI input present Make certain intended SDI source is
connected to appropriate 9305 card video
input. Make certain BNC cable connections
between frame Rear I/O Module for the
card and signal source are OK.
All Audio Input Controls
status displays show Not
Present message.
Video status OK.
No embedded audio input
present Make certain intended SDI source contains
appropriate embedded audio.
