2

Installing a Rear I/O Module

2-4

9305 PRODUCT MANUAL

9305-OM (V4.1)

9305 Rear I/O Modules

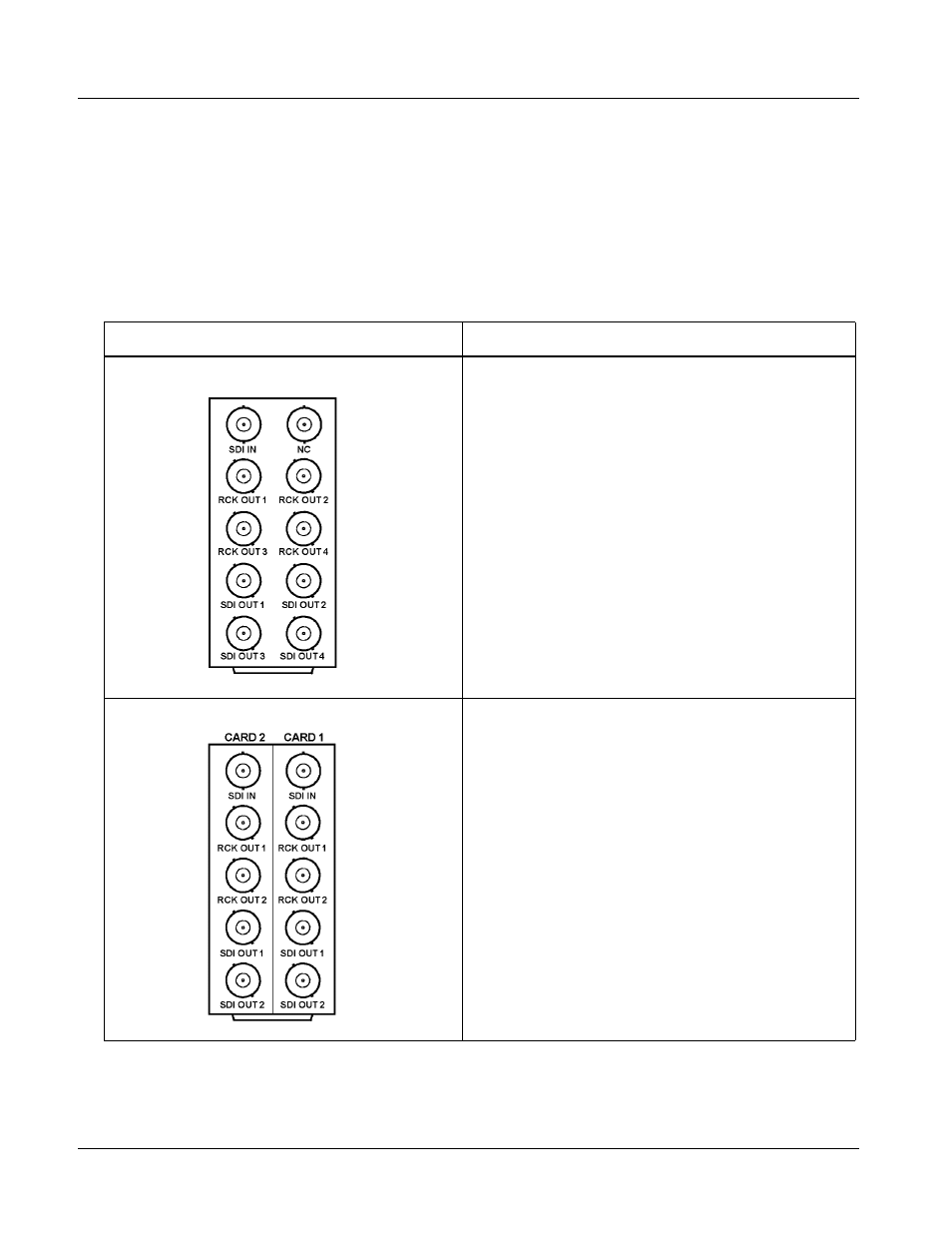

Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9305.

Notes: • Rear I/O Modules equipped with 3-wire Phoenix connectors are supplied

with removable screw terminal block adapters. For clarity, the adapters are
omitted in the drawings below.

Table 2-1

9305 Rear I/O Modules

9305 Rear I/O Module

Description

RM20-9305-A

Provides the following connections:

• HD/SD-SDI coaxial input (SDI IN)

• Four reclocked SDI input copies (RCK OUT 1- 4)

• Four buffered SDI coaxial outputs (SDI OUT 1- 4)

RM20-9305-A/S

Split Rear Module. Provides each of the following
connections for two 9305 cards:

• HD/SD-SDI coaxial input (

SDI IN

)

• HD/SD-SDI reclocked input copies (

RCK OUT 1 and

RCK OUT 2

)

• Buffered SDI coaxial outputs (

SDI OUT 1 and

SDI OUT 2

)

Note: RM20-9305-A/S Rear I/O Module compatible

only with 20-slot frames.
