Accessing the 9305 Card via Remote Control

3-6

9305 PRODUCT MANUAL

9305-OM (V4.1)

Accessing the 9305 Card Using a Cobalt

®

Control Panel

Press the

Select Device

key and select a card as shown in the example below.

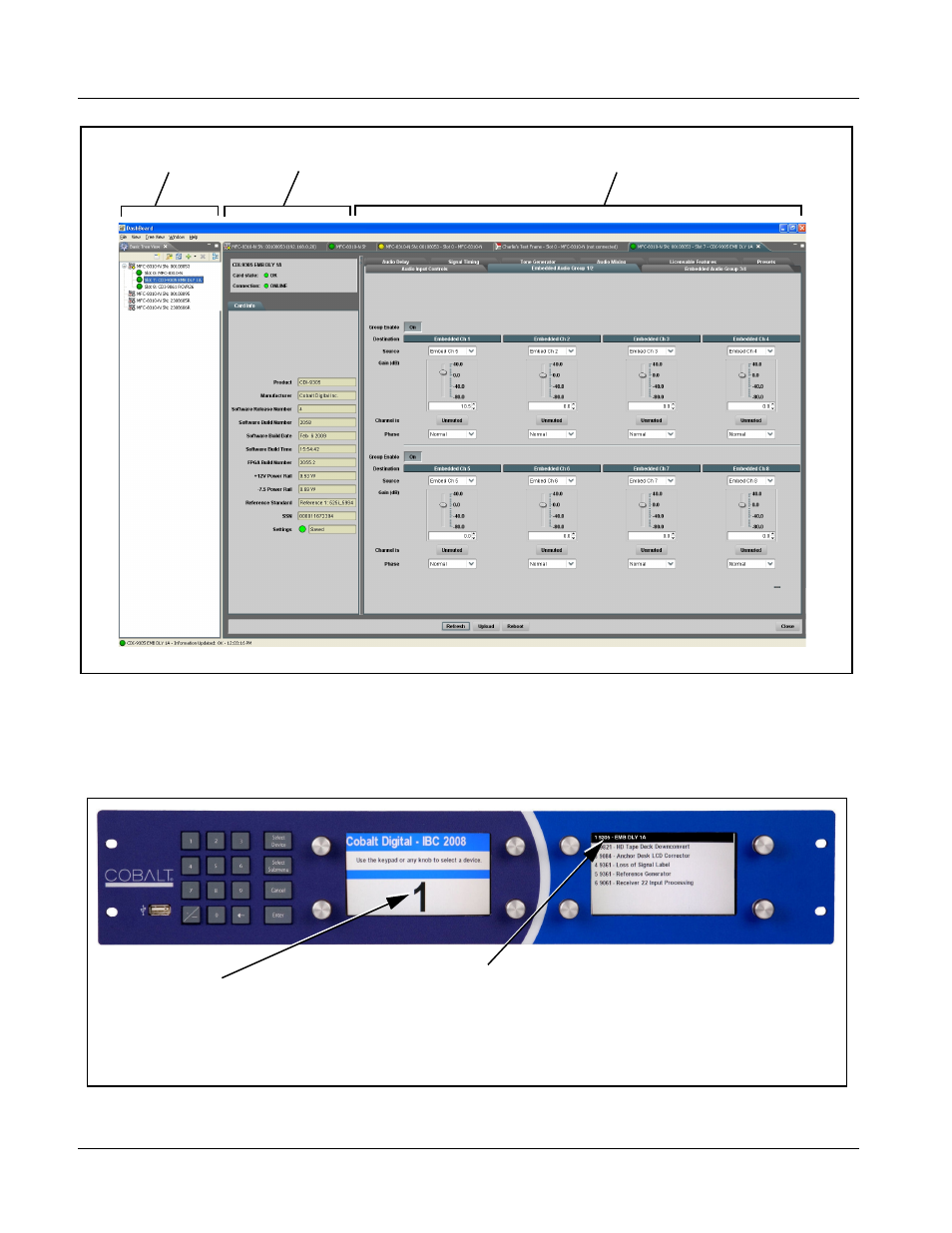

Card Access/Navigation

Tree Pane

Card Info

Pane

Card Function Submenu

and Controls Pane


This display shows the list
order number of the device that
is ready for selection

This display shows the devices assigned to the Control Panel.

• Rotate any knob to select from the list of devices. The device selected

using a knob is displayed with a reversed background (in this example,
“1 9305 - EMB DLY 1A”).

• Directly enter a device by entering its list number using the numeric

keypad, and then pressing Enter or pressing in any knob).
