9305-OM (V4.1) 9305 PRODUCT MANUAL 3-5
Operating Instructions
Accessing the 9305 Card via Remote Control
Accessing the 9305 Card via Remote Control
Access the 9305 card using DashBoard™ or a Cobalt ® Remote Control Panel
as described below.
Accessing the 9305 Card Using DashBoard™
1. On the computer connected to the frame LAN, open DashBoard™.

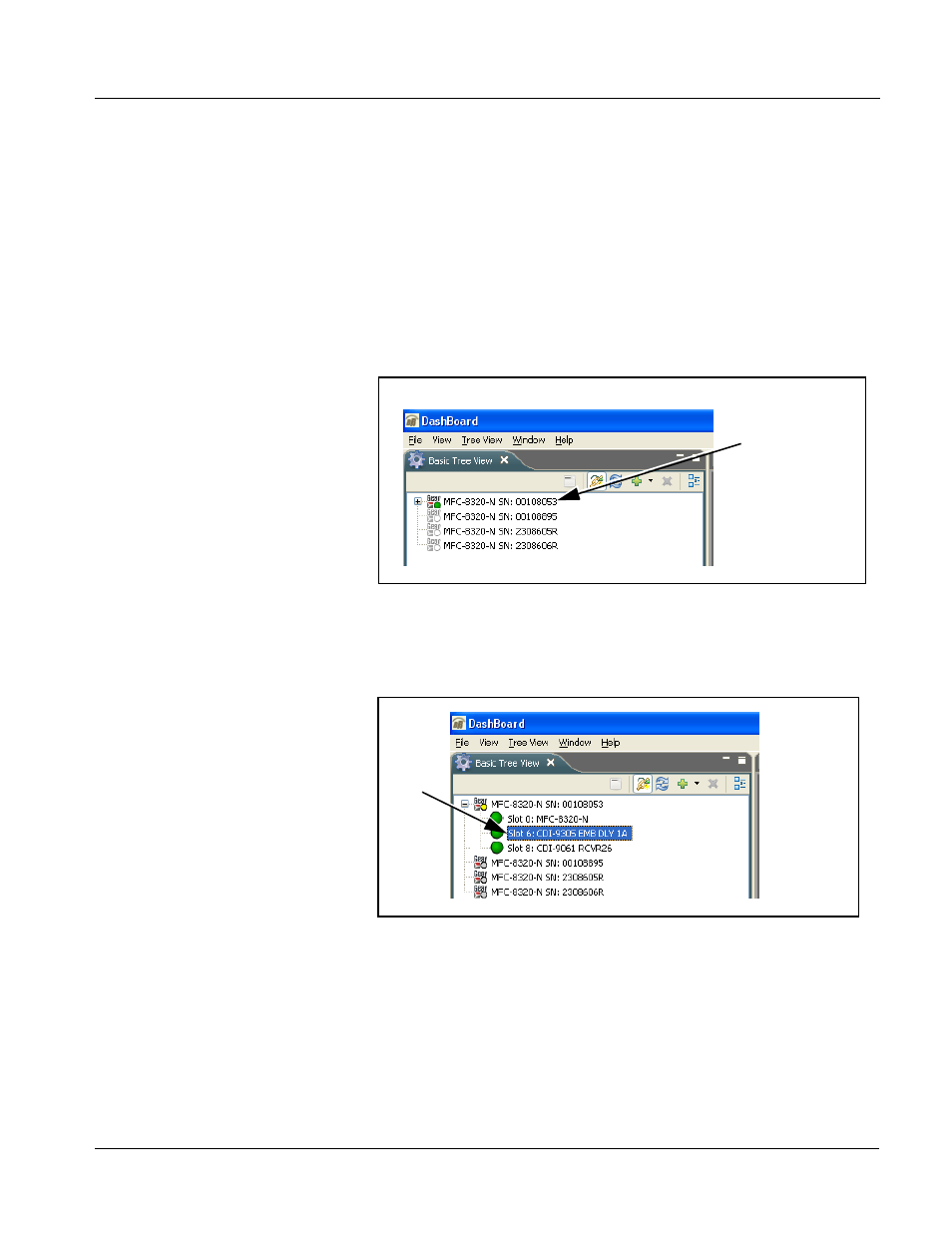

2. As shown below, in the left side Basic View Tree locate the Network
Controller Card associated with the frame containing the 9305 card to be
accessed (in this example, “MFC-8320-N SN: 00108053”).
3. As shown below, expand the tree to access the cards within the frame.
Click on the card to be accessed (in this example,
“Slot 6: CDI-9305 EMB DLY 1A”).
.
As shown on the next page, when the card is accessed its function
submenu screen showing tabs for each function is displayed. (The
particular submenu screen displayed is the previously displayed screen
from the last time the card was accessed by DashBoard™).
