9305-OM (V4.1) 9305 PRODUCT MANUAL 3-15
Operating Instructions

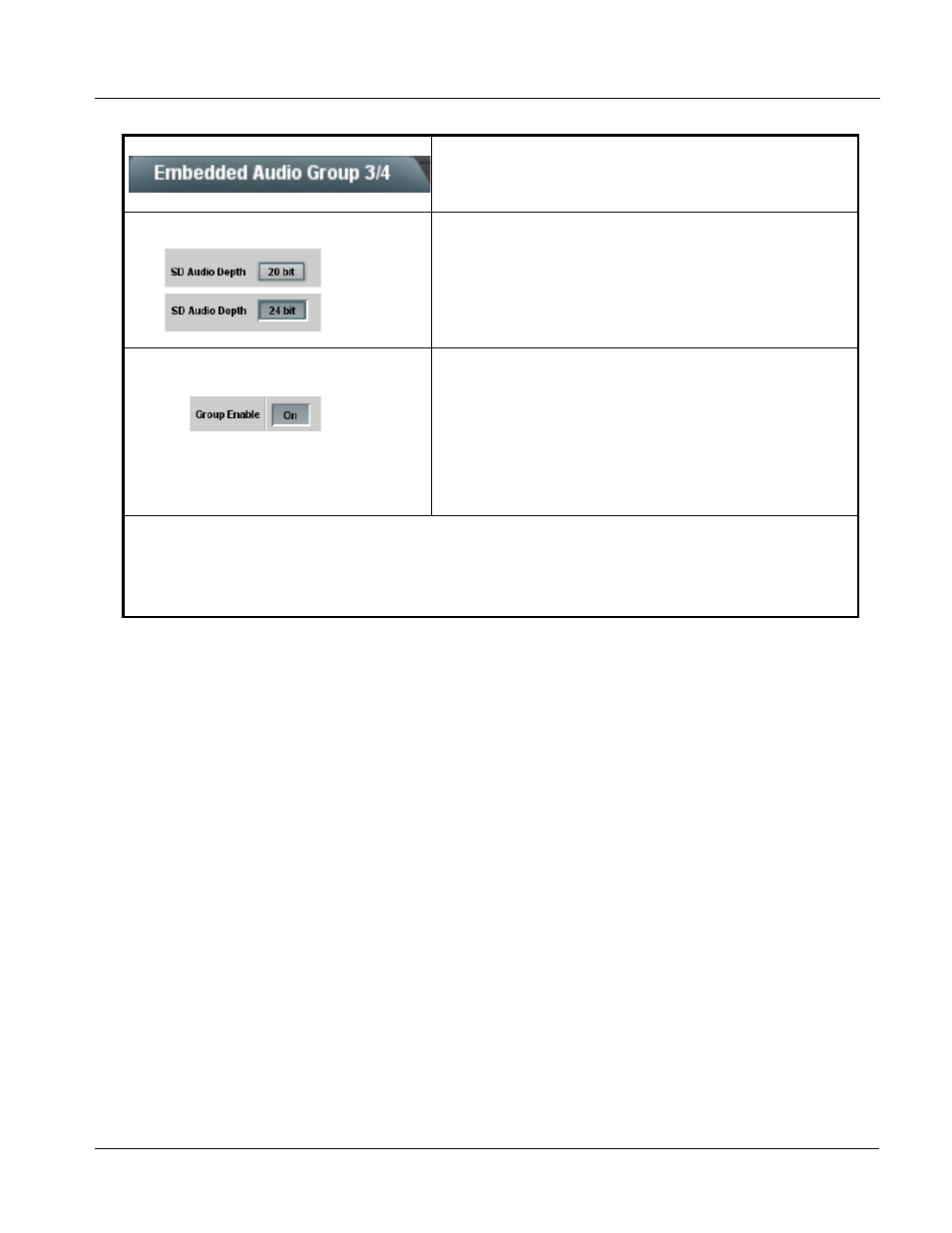

9305 Function Submenu List and Descriptions
(continued)
• SD Audio Depth Allows option of using 24-bit audio data structure per SMPTE 272M,
§3.10 (default is 20-bit per SMPTE 272M, §3.5).
Note: • If 24-bit depth is desired, make certain downstream equipment is
compatible with 24-bit SD audio data.
• Depth control setting applied here affects both Embedded Audio
Group 1/2 and 3/4.
• Group Enable
When enabled (On), enables the embedding of the corresponding
embedded audio group (Embedded Audio Group 3 or Embedded Audio
Group 4).
• Embedded Audio Group 3 consists of embedded channels 9 thru 12.
• Embedded Audio Group 4 consists of embedded channels 13 thru 16.
Two Group Enable buttons correspondingly enable or disable Embedded
Audio Group 3 and Embedded Audio Group 4.
Disabling a group removes the entire group of embedded audio channels
while preserving the settings of the channels belonging to the group.
Note: Embedded Ch 9 thru Embedded Ch 16 have controls that are identical to the Source, Gain,
Phase, and Muting controls described for Embedded Ch 1.
Refer to Embedded Audio Group 1/2 on page 3-11 for descriptions of these controls.
Table 3-2 9305 Function Submenu List — continued
