Operating Instructions

9305 Function Submenu List and Descriptions

(continued)

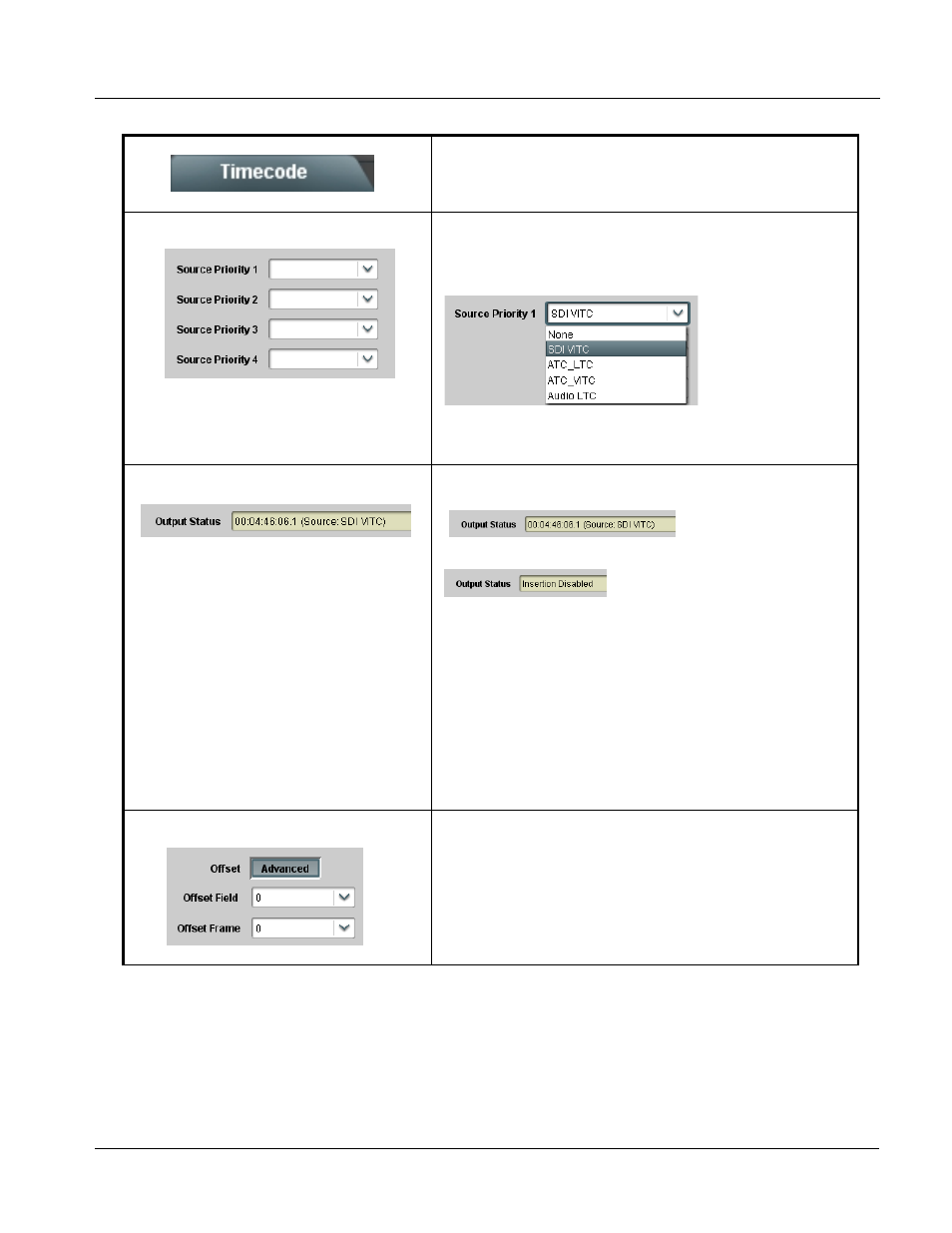

• Source Priority

As described here, selects the priority assigned to each received formats
(or none) in the event the preferred source is unavailable.

Each Source Priority selection list allows assignment of source priority
from the following choices:

Source Priority 1 thru Source Priority 4 select the preferred format to be
used in descending order (i.e., Source Priority 2 selects the second-most
preferred format, and so on).

• Output Status Display

Displays the current content and source being used for the timecode data
as follows:

• Output status OK (in this example, SDI VITC timecode received and

outputted).

Timecode Insertion button set to Disabled; output insertion disabled.

Note: • If timecode is not available from Source Priority selections

performed, timecode on output reverts to Free Run (internal
count) mode.

• Because the 1’s digit of the display Frames counter goes from 0 to

29, the fractional digit (along with the 1’s digit) indicates frame
count as follows:

0.0

Frame 0

0.1

Frame 1

1.0

Frame 2

1.1

Frame 3



29.1 Frame 59

• Offset Controls

Allows the current timecode count to be advanced or delayed on the
output video.

• Offset Advance or Delay selects offset advance or delay.

• Offset Field delays or advances or delays timecode by one field.

• Offset Frame delays or advances or delays timecode by up to 5

frames.

Note: Default settings are null, with both controls set at zero as shown.

Table 3-2

9305 Function Submenu List — continued
