3

9305 Function Submenu List and Descriptions

3-14

9305 PRODUCT MANUAL

9305-OM (V4.1)

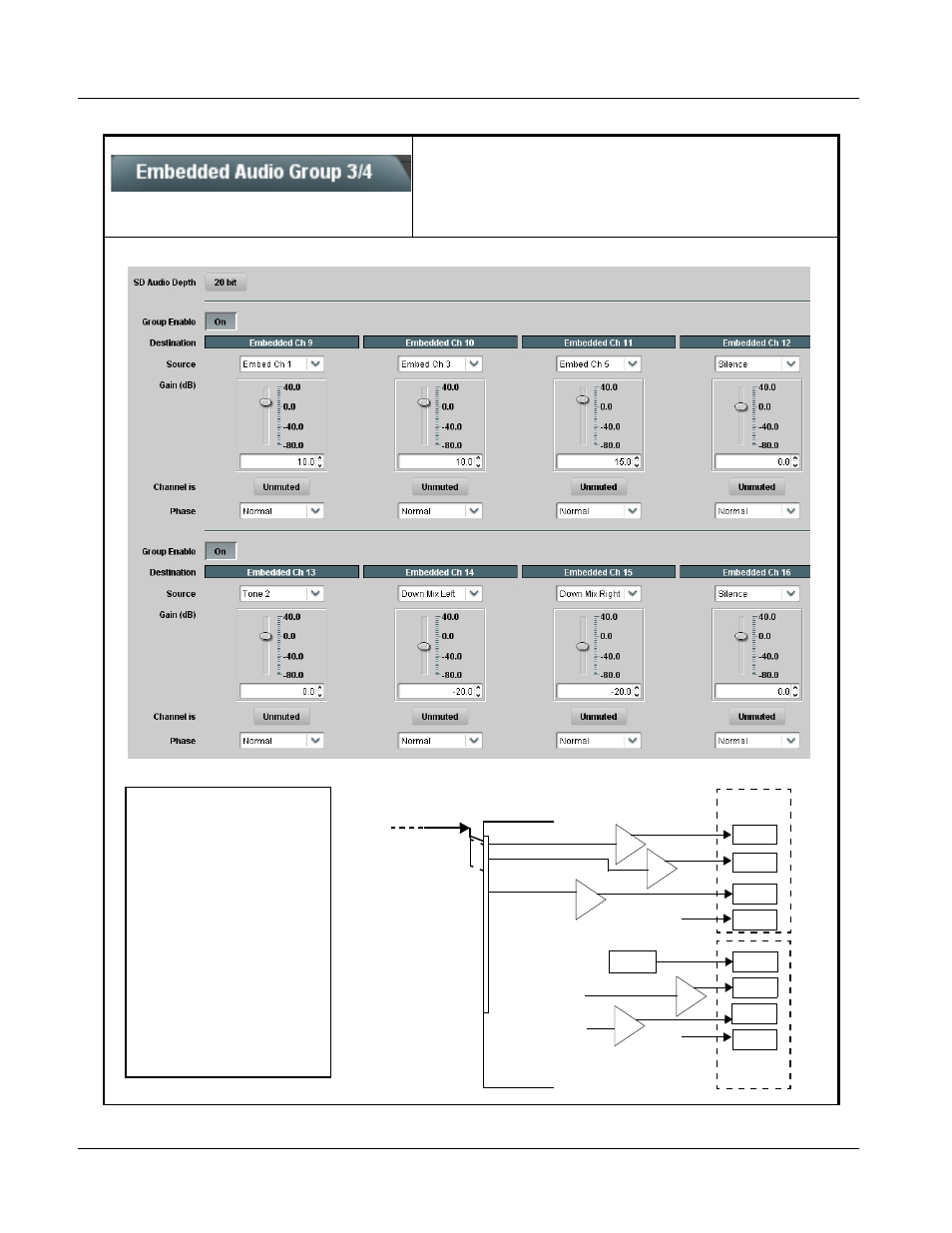

Embedded Audio Group 3/4

Selects the audio source for each embedded audio
channel 9 thru 16 (Embedded Audio Groups 3 and 4).
It also provides Gain, Phase Invert, and Muting
controls for each channel.

Table 3-2

9305 Function Submenu List — continued

The example above shows
various Source selections and
individual audio control settings
for audio sources fed to the
Destination channels
Embedded Ch 9 thru
Embedded Ch 16 in Embedded
Audio Groups 3 and 4, with the
resulting setup (right).

The source-to-destination
correlation shown here is only
an example; any of the sources
on the left can connect to any of
the destinations on the right, or
to Embedded Audio Groups 1
and 2 (not shown here).
Additional sources not shown
here are also available. These
are described on the following
pages.

Embed Ch 1

Embedded

Audio Group 3

10 dB

10 dB

15 dB

–20 dB

–20 dB

+

+

+

+

+

Silence

Embed Ch 3

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH16

Embedded

Audio Group 4

Embed Ch 5

Silence

TG2

0 dB

Downmix L

Downmix R

Embedded

Ch 1 – 16
