Turbosmart BLOW OFF & BYPASS VALVE KITS - Dual Port for: Mitsubishi (EVO VII-X), Ralliart Colt User Manual

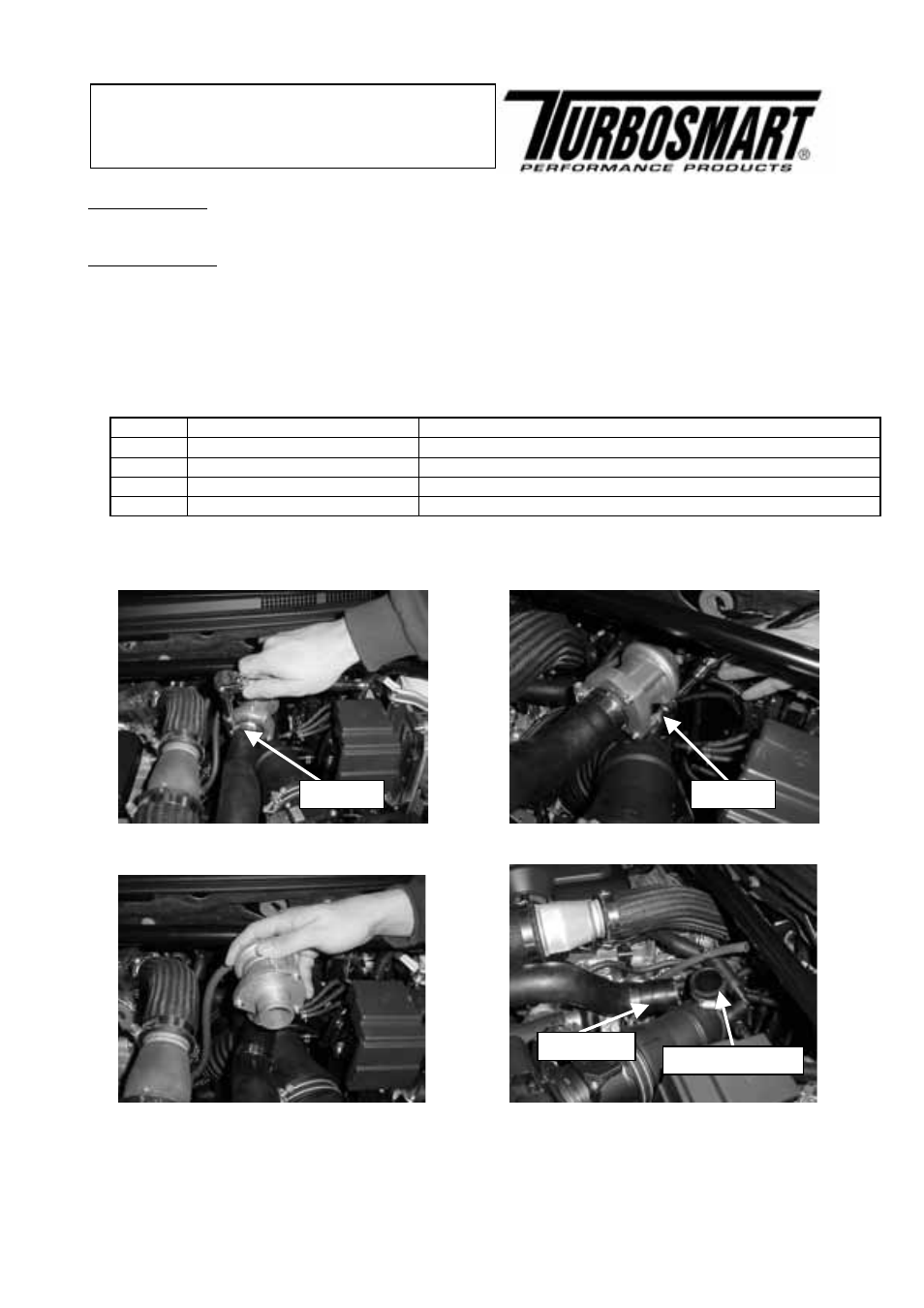

How to install your bov

background image

1

------------------------------------------------------------------------------------------------------------------------

IMPORTANT NOTES:

Please thoroughly read and understand these instructions before commencing this installation.

The thread on the cap for the vacuum source is AN#3. The standard swivel nipple can be changed to a AN#3 fitting if desired.


RECOMMENDATIONS

Turbosmart recommends that your Blow off valve (BOV) is fitted and adjusted by an appropriately qualified technician

Turbosmart recommends that a boost gauge be permanently fitted to the vehicle

------------------------------------------------------------------------------------------------------------------------

HOW TO INSTALL YOUR BOV


Please check that the following items have been provided in your EVO Dual port kit.

Quantity

Description

Use

1

EVO Dual port BOV

Model Specific blow off valve

1

Port Blanking plug

To blank off a port to convert the BOV to full atmospheric or plumb back

2

6mm Hose clamps

To secure the vacuum lines to the BOV and the engine

1

400mm of 5mm Silicone vacuum line

To connect vacuum source to the BOV


1) Installation on a EVO (Diagrams are from a Mitsubishi Lancer EVO X)


1) Remove the two hose clamps holding the standard BOV to the piping
















2) Remove the piping and vacuum line off the standard BOV
























Product Name:

EVO Dual port

Product Description:

Fits Lancer EVO VII – X
(7 - 10)

Product Number:

TS-0205-20

Plumb back return

Inlet to BOV

Loosen

Loosen
