PULSAR GTiR BLOW-OFF VALVE ADAPTOR INSTRUCTIONS
Turbosmart Pty Limited P.O.Box 264 Croydon, NSW, 2132 Australia ABN: 69 081 069 794
Ph: +(612) 9798 2866 Fx: +(612) 9798 2826 Email: [email protected]
PART NUMBER
FG-ADM-GTiR

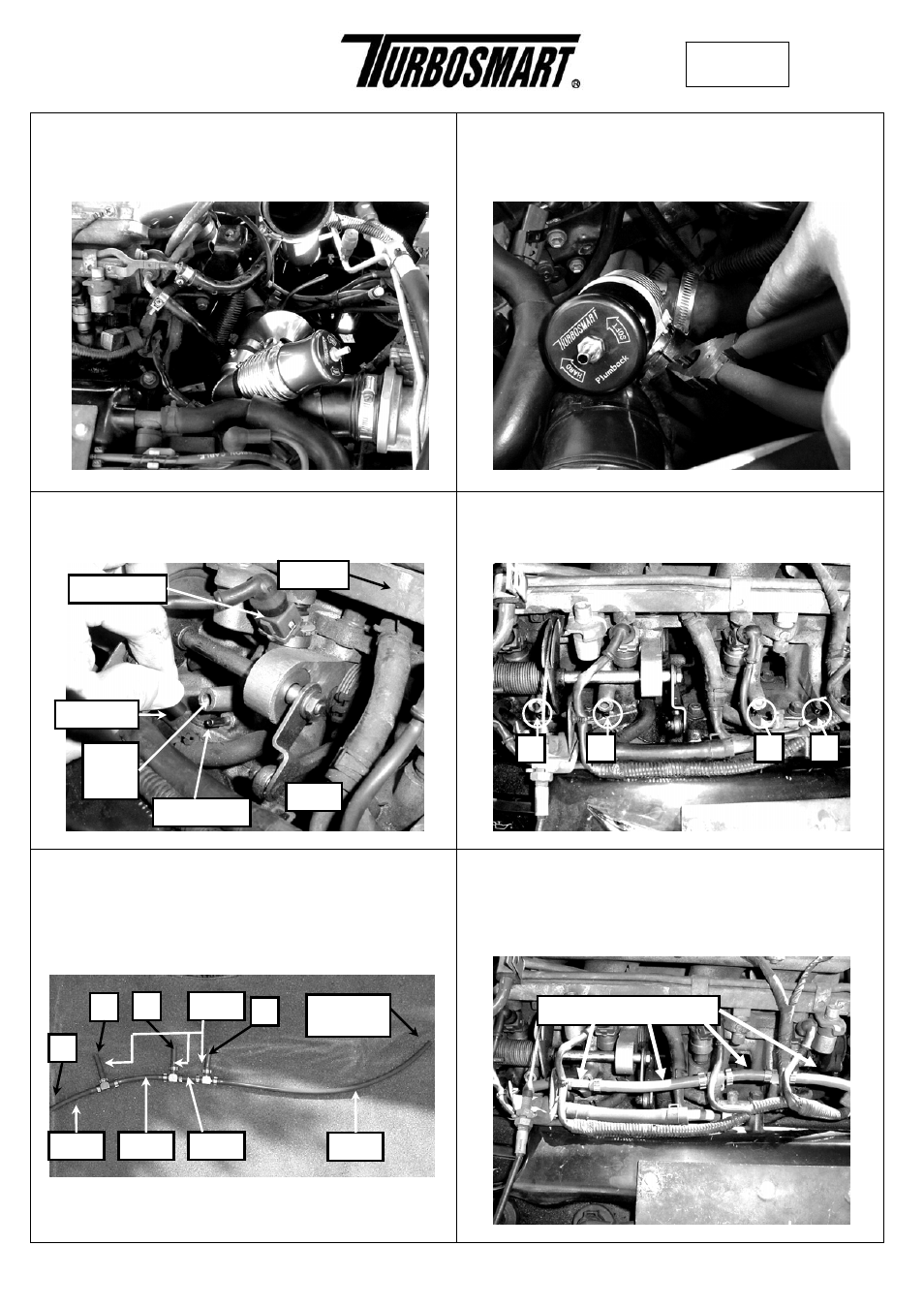

Step 17. Install your Turbosmart BOV onto the GTiR
Adaptor by following your Turbosmart BOV
instructions.
Step 18. If you are fitting either a Turbosmart Type III
Plumb Back or Dual Port, fit the return hose onto the
BOV plumb-back fitting. Secure the fitting with the
factory hose spring clamp.
Step 19. Remove the four rubber caps on the 4
vacuum fittings on the throttle body.
Step 20. Once you have removed all four caps, you
should see all four vacuum fittings on the throttle body.
Step 21. Connect the numbered ends of the
preassembled vacuum hoses to the corresponding
throttle body fittings in the previous photo. Secure
each vacuum fitting with the 5mm hose spring clamp
supplied.
Step 22. You will need to use a set of long nosed
pliers to access the tight areas around the throttle
body. Once fitted, the four vacuum fittings should look
the same as the photo below.
Fuel rail
Fuel injector
2 3
4 Connect to
BOV
Throttle
balance
screw
Vacuum fitting
Rubber cap
1 2 3 4
Preassembled vacuum hose.
1
50mm
450mm 40mm 110mm 100mm
100mm
