Turbosmart BLOW OFF & BYPASS VALVE KITS - Dual Port for: Subaru WRX (01-07), STi (01-08), Forester XT (06) User Manual
Page 3

3
6.

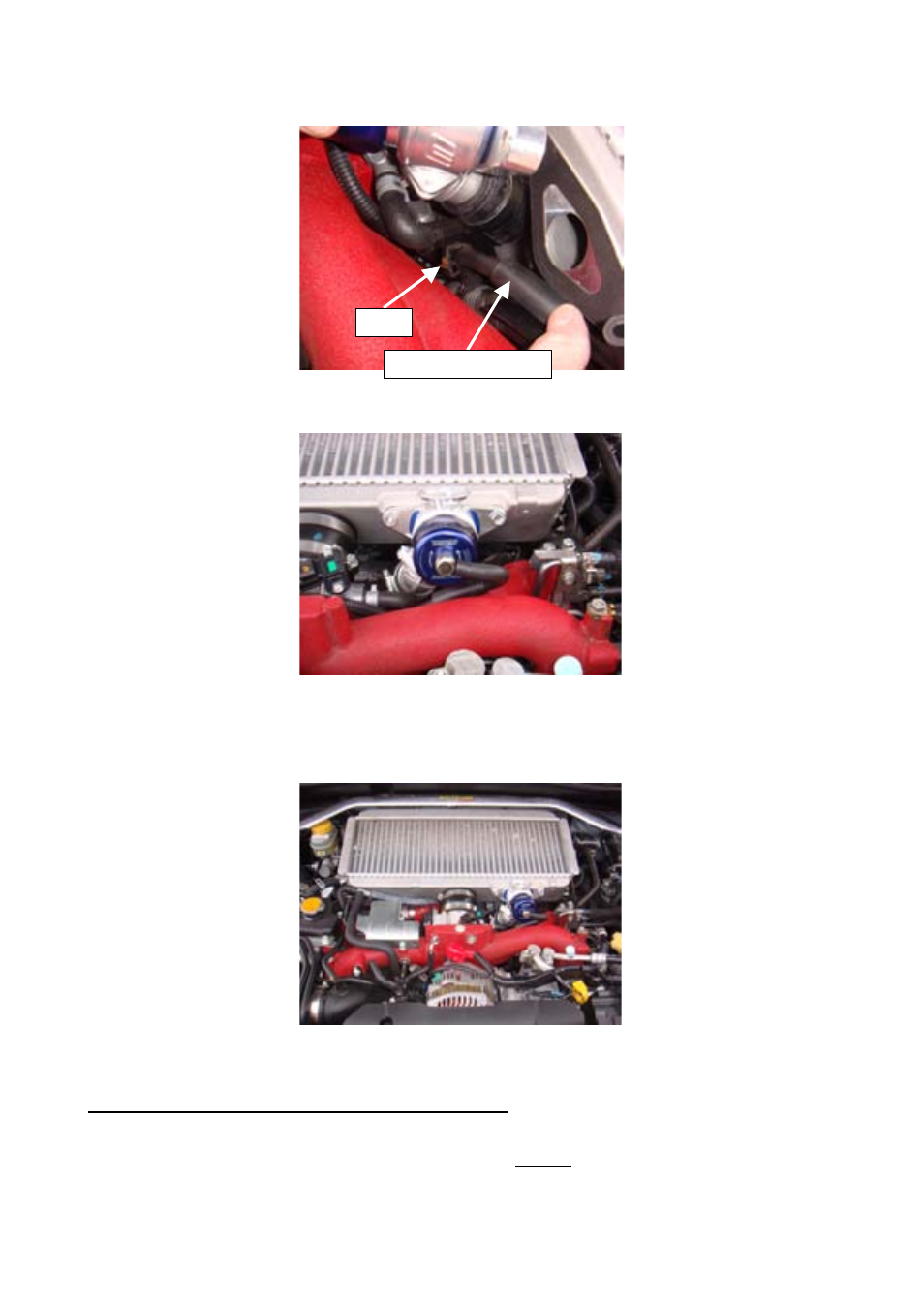

Push the plumb back side of the Turbosmart BOV onto the standard return pipe and secure the hose with the provided hose
clamp. Unclip the hose shown in the picture from the bracket and move the line under the wiring loom that supports it.
7.
Secure the BOV onto the intercooler with the standard bolts and replace the vacuum line to the top of the BOV.
8.
Start the car and check for leaks.
IMPORTANT NOTES ON SETTING THE SPRING TENSION
-
Adjustment to the BOV is made by rotating the cap. To increase spring tension rotate in the direction of hard, marked on the top of
the cap
-
Rotate the cap in the direction of soft to decrease the spring tension – CAUTION Do not rotate the cap beyond the red indicator
groove
-
With the engine at idle the exhaust ports should be closed off by the piston – the piston should be hard against the seat and not
floating or moving
Clip
Push hose around loom
