Turbosmart BLOW OFF & BYPASS VALVE KITS - Dual Port for: Subaru WRX (01-07), STi (01-08), Forester XT (06) User Manual
Page 2
2
3.
Remove the plumb back fitting on the back of the standard BOV and install it onto the Turbosmart BOV using the standard screws.
4.
Remove the standard hose breather
5.

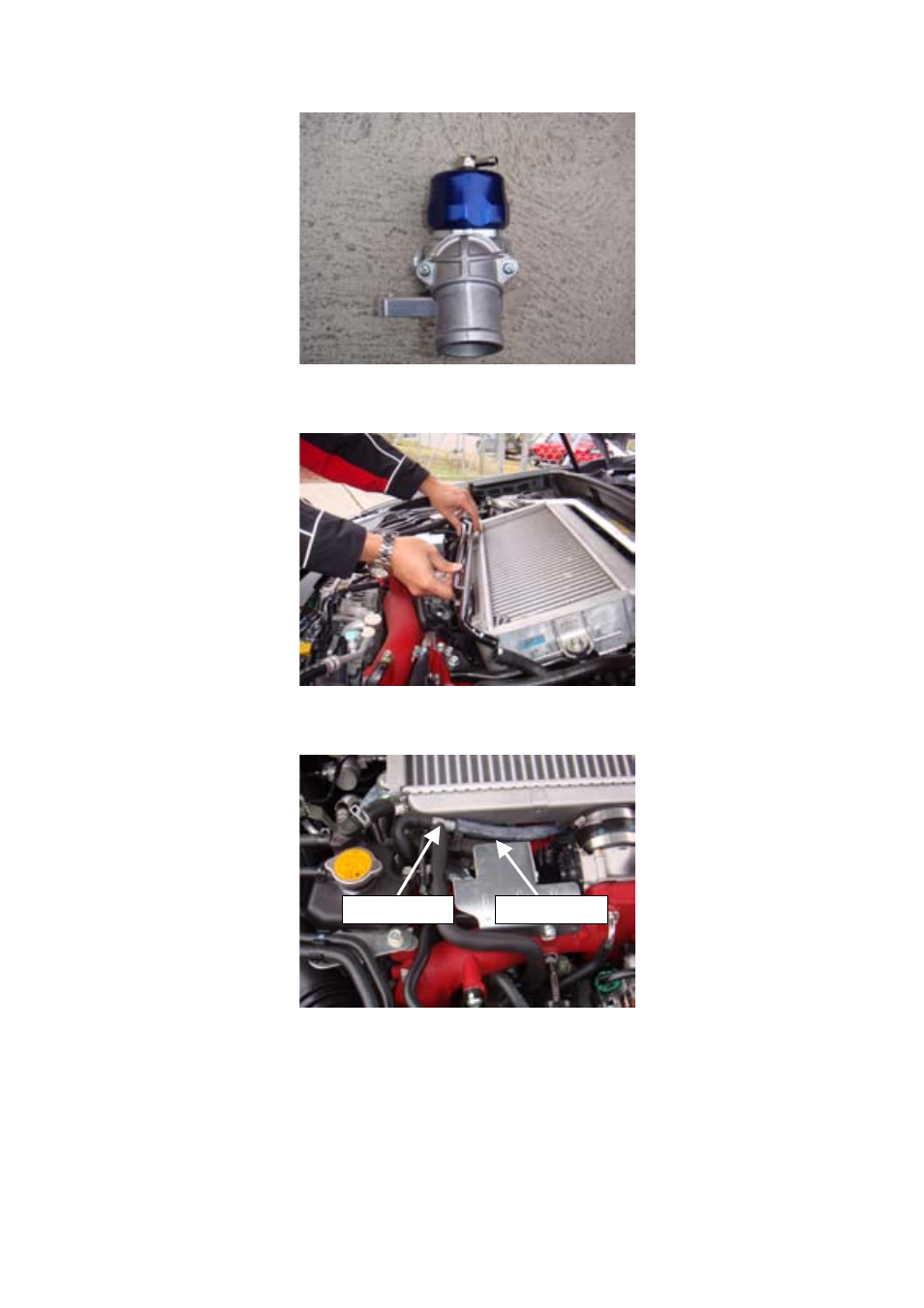

Using the provided ½” tee piece, connect the standard oil breather lines on the left hand side of the intercooler in the orientation
shown in the picture below and run the provided ½” hose under the intercooler to the oil breather line on the other side of the
intercooler, using the provided ½” straight joiner to join the rubber hose to the existing breather line on the right hand side.
½” Tee piece
½” rubber hose
