SILVIA / 180SX-SR20 BLOW-OFF VALVE ADAPTOR INSTRUCTIONS
Head Office: Turbosmart Pty Limited, PO Box 264 Croydon, NSW, 2132 Australia
Ph: +61(2) 9798 2866
Fax: +61 (2) 9798 2826
Email:
USA Office: Turbosmart USA, 1185 Park Center Drive, Suite Q, Vista CA 92081 USA
Ph: (760) 727 7610
Fax: (760) 727 7963
Email:
PART NUMBER
FG-ADM-180SXSR
FG-ADA-
asfsdfdfsdfsdfsdf180
SR2srSRSX2020S20R
20

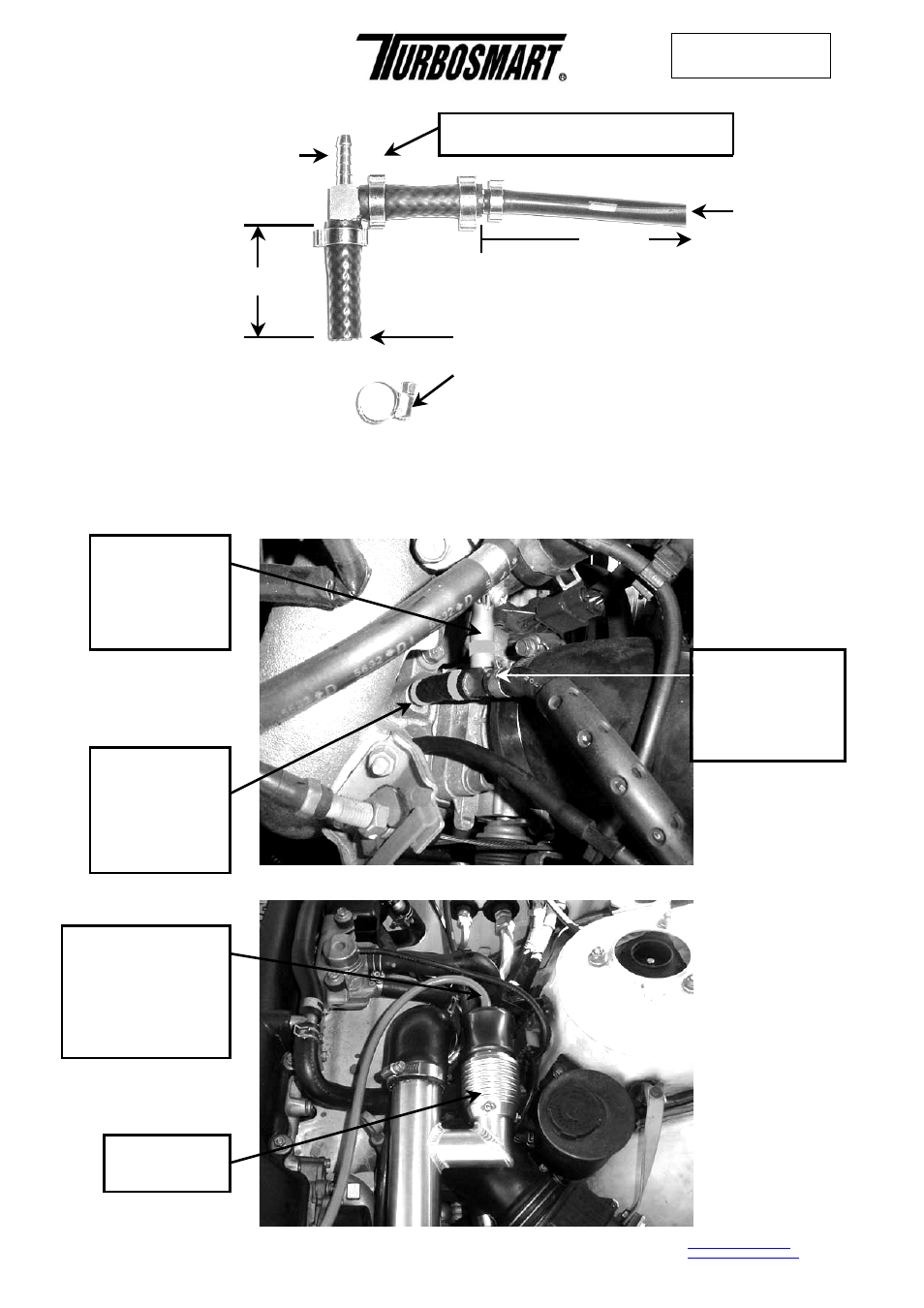

Step 7. When you have connected the tee-piece and Silicon hose assembly it should look the same as the diagram
below:
Step 8. Install your Turbosmart BOV by following the instructions, included with the BOV.
Turbosmart
BOV
Connect the 5mm
Silicon hose
to the BOV and
secure it with the
5mm spring clamp
supplied
50mm
Connect factory boost/vacuum
line here and secure with the
factory spring clamp.
Connect the end of the short 6mm
Silicon hose onto the intake
manifold and secure it with the
6mm hose clamp supplied.
Tee-piece and Silicon hose assembly
Connect the end of
the 5mm Silicon
hose to your
Turbosmart BOV.
Secure this hose
with the 5mm spring
hose clamp supplied.
1500mm
Connect the
long 5mm
Silicon hose to
your Turbosmart
BOV
Connect the
factory
boost/vacuum line
to the spare fitting
on the tee piece
Connect the end
of the short
6mm Silicon
hose onto the
intake manifold
fitting
