Nemco Electronics Full Catalog - Manual (Page 5)

PCT Series
Example: PCT10/16CK
PCT 10 16 C K (optional)
TB Series
Example: TB10/35K1
TB 10 35 K 1 (optional) (optional)
Series Capacitance Voltage Tolerance Lead spacing LF TR = Tape & Reel Packaging
in microfarads code TA = Ammo Packaging
5

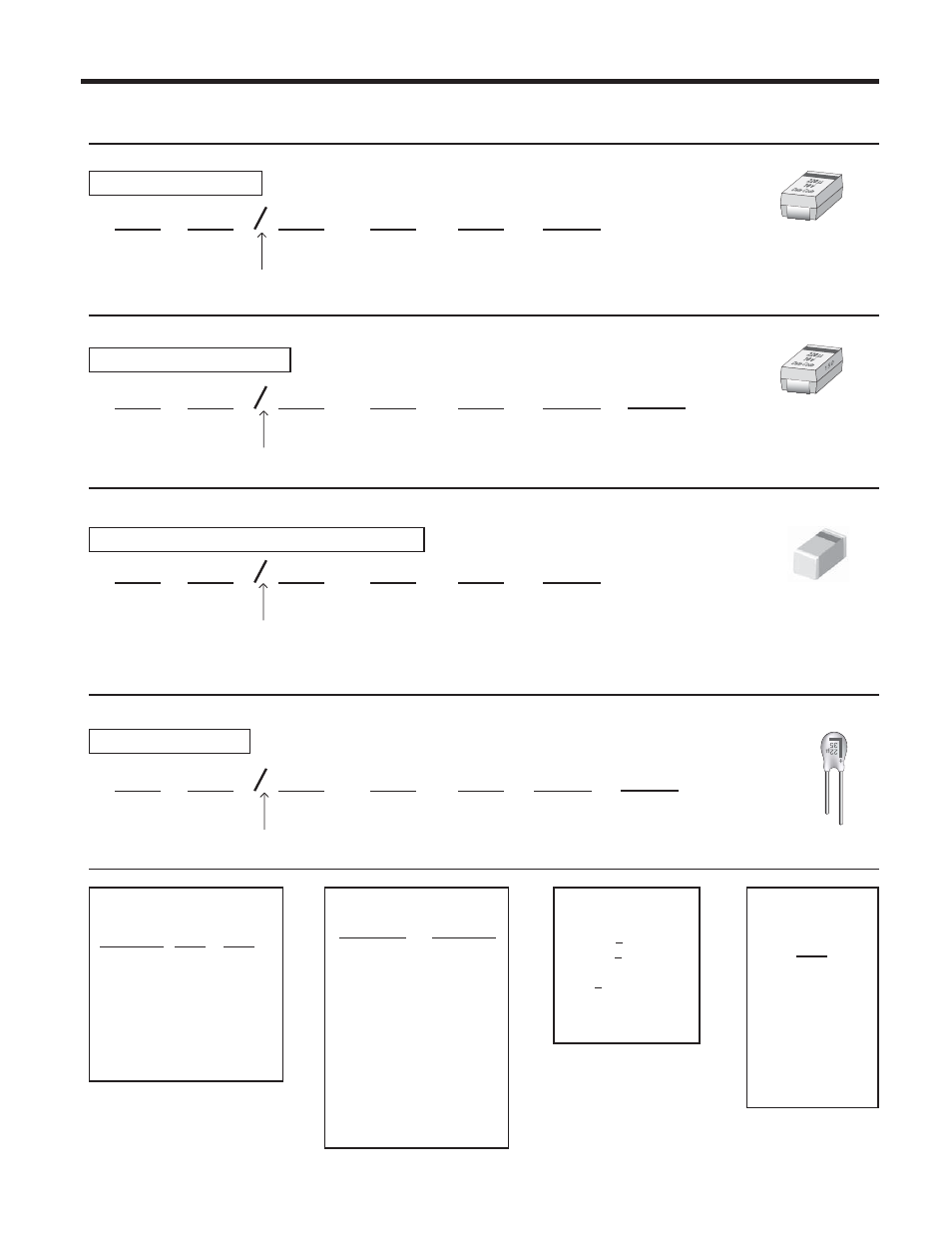

Part Numbering
Series Capacitance Voltage Case Size Tolerance
in microfarads
LSR Series
Example: LSR470/10HK100
LSR 470 10 H K 100 (optional)
Series Capacitance Voltage Case Size Tolerance Max ESR
in microfarads milliohms
MCT and CGT Series
Examples: MCT1/16RM7500 or CGT1/16RM7500
MCT or CGT 1 16 R M 7500
Series Capacitance Voltage Case Size Tolerance Max ESR
in microfarads milliohms
LF = lead free, RoHS compliant
LF = lead free, RoHS compliant
Tolerances
M (+ 20%)
K (+ 10%)
J (+ 5%) may be
available upon request,
contact the factory
Case Sizes
PCT / LSR MCT / CGT
A (3216-18) P (1005-07)
B (3528-21) R (1608-10)
C (6032-28)
D (7343-31)
H (7343-43)
Z (7361-37)
Low Profile
XL (2012-12)
AL (3216-12)
BL (3528-12)
CL (6032-15)
DL (7343-20)
Lead Spacing
Codes
TB
1 ( 0.1 inches )
2 ( 0.2 inches )
250 ( 0.25 inches )
E1 ( 0.1 snap in )
E2 ( 0.2 snap in )
F ( 0.1 inches )
Voltages
PCT MCT
LSR CGT TB
4 2 6 (6.3)
6 (6.3) 3 10
10 4 16
16 5 20
20 6 (6.3) 25
25 10 35
35 16 50
50 25
Standard packaging is tape and reel, 7” diameter reel. (For 13” dia. reel please contact the factory for ordering information)
Standard packaging is tape and reel, 7” diameter reel. (For 13” dia. reel please contact the factory for ordering information)
Only available in M tolerance.
Only available lead-free, RoHS compliant.
Standard packaging is tape and reel, 4” diameter reel. (For 7” dia. reel please contact the factory for ordering information)
All Nemco products are manufactured lead-free and RoHS compliant.
The use of the “LF” suffix code is optional when customers choose to establish a unique part number.
(forward slash)
(forward slash)
(forward slash)
(forward slash)
Standard packaging is bulk.
