Nemco Electronics Case Dimensions User Manual
Standard pct and lsr, Low profile pct and lsr mct and cgt

NEMCO
Case Size
EIA / IECQ
Case Size
L
+ 0.2 (+ 0.008)
W
1
+ 0.2 (+ 0.008)
H
+ 0.2 (+ 0.008)
W
2
+ 0.1 (+ 0.004)
P
+ 0.3 (+ 0.012)
S
Min.
A
3216-18
3.2 (.126)
1.6 (.063)
1.6 (.063)
1.2 (.047)
0.8 (.031)
1.10 (0.043)
B
3528-21
3.5 (.138)
2.8 (.110)
1.9 (.075)
2.2 (.087)
0.8 (.031)
1.40 (0.055)
C
6032-28
6.0 (.236)
3.2 (.126)
2.6 (.102)
2.2 (.087)
1.3 (.051)
2.90 (0.114)
D
7343-31
7.3 (.287)
4.3 (.169)
2.9 (.114)
2.4 (.094)
1.3 (.051)
4.40 (0.173)
H
7343-43
7.3 (.287)
4.3 (.169)
4.1 (.162)
2.4 (.094)
1.3 (.051)
4.40 (0.173)
Z
7361-38
7.3 (.287)
6.1 (.240)
3.45+0.3
(.136+.012)
3.1 (.120)
1.4 (.055)
4.40 (0.173)
NEMCO
Case Size
EIA / IECQ
Case Size
L
+ 0.2 (+ 0.008)
W
1
+ 0.2 (+ 0.008)
H
(MAX)
W
2
+ 0.1 (+ 0.004)
P
+ 0.3 (+ 0.012)
S
Min.
XL
2012-12
2.05 (.080)
1.3 (.050)
1.2 (.047)
1.2 (.047)
0.5 (.020)
0.85 (0.033)
AL
3216-12
3.2 (.126)
1.6 (.063)
1.2 (.047)
1.2 (.047)
0.8 (.031)
1.10 (0.043)
BL
3528-12
3.5 (.138)
2.8 (.110)
1.2 (.047)
2.2 (.087)
0.8 (.031)
1.40 (0.055)
CL
6032-15
6.0 (.236)
3.2 (.126)
1.5 (.059)
2.2 (.087)
1.3 (.051)
2.90 (0.114)
DL
7343-20
7.3 (.287)
4.3 (.169)
2.0 (.079)
2.4 (.094)
1.3 (.051)
4.40 (0.173)
Ro
HS
Co
m
plia
nt

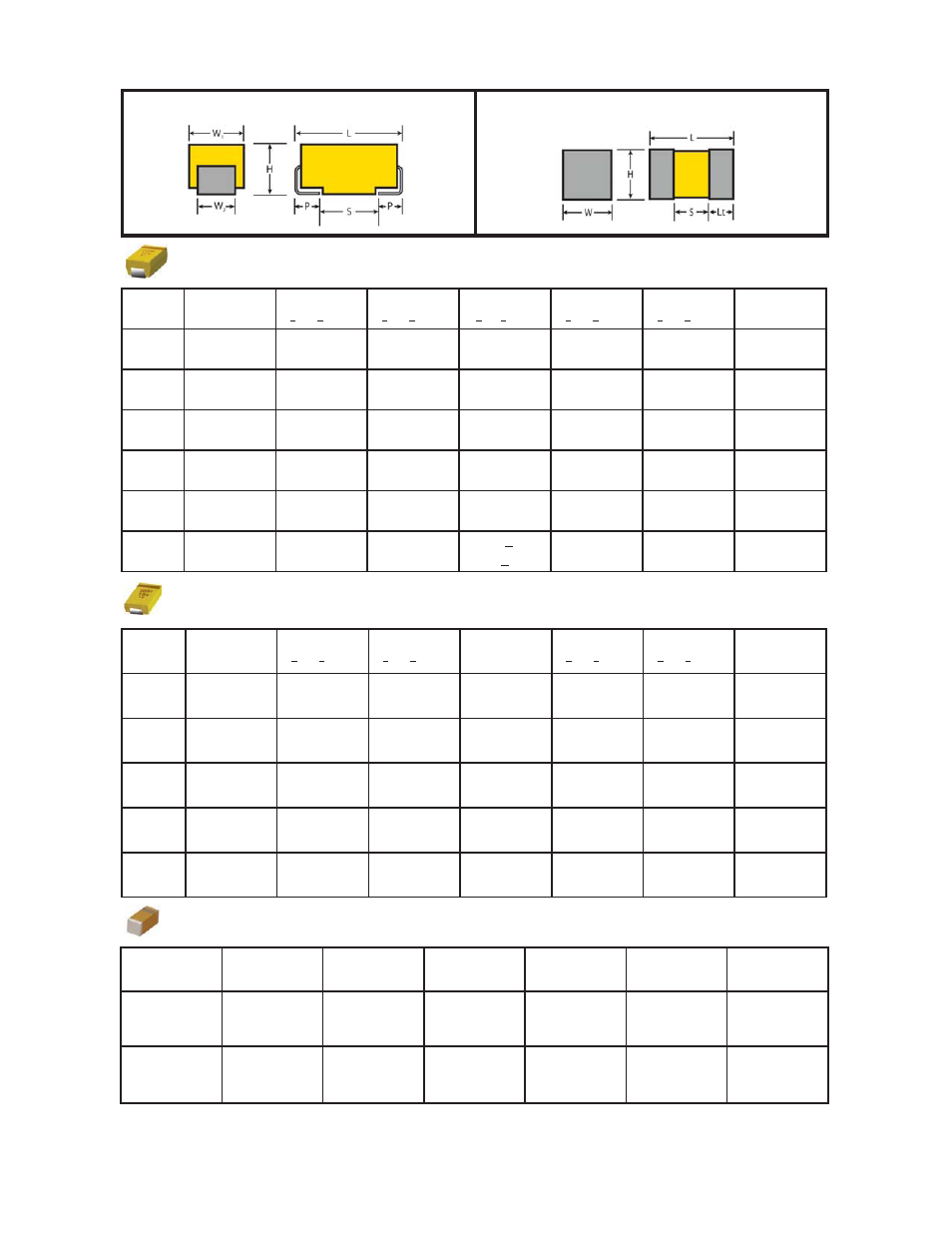

Surface Mount Tantalum Case Dimensions
Standard PCT and LSR
(4)
(1) 0402 Footprint Compatible
(2) 0603 Footprint Compatible
(3) 0805 Footprint Compatible
(4) 1206 Footprint Compatible
Low Profile PCT and LSR
MCT and CGT
millimeters (inches)
MCT
PCT and LSR
(4)
(3)
NEMCO
Case Size
EIA / IECQ
Case Size
L
W
H
S
Minimum
Lt
Minimum
P
1005-07
1.00 (.039)
+ 0.2, - 0.0
(+0.008, -0.0)
0.50 (.020)
+ 0.2, - 0.0
(+0.008, -0.0)
0.50 (.020)
+ 0.2, - 0.0
(+0.008, -0.0)
0.40 (.016)
0.10 (.004)
R
1608-10
1.60 (.063)
+ 0.2, - 0.0
(+0.008, -0.0)
0.85 (.033)
+ 0.15, - 0.0
(+0.006, -0.0)
0.85 (.033)
+ 0.15, - 0.0
(+0.006, -0.0)
0.65 (.0255)
0.15 (.006)
(1)
(2)
